Axle Code and Gear Ratio Identification
Axle Code and Gear Ratio Identification

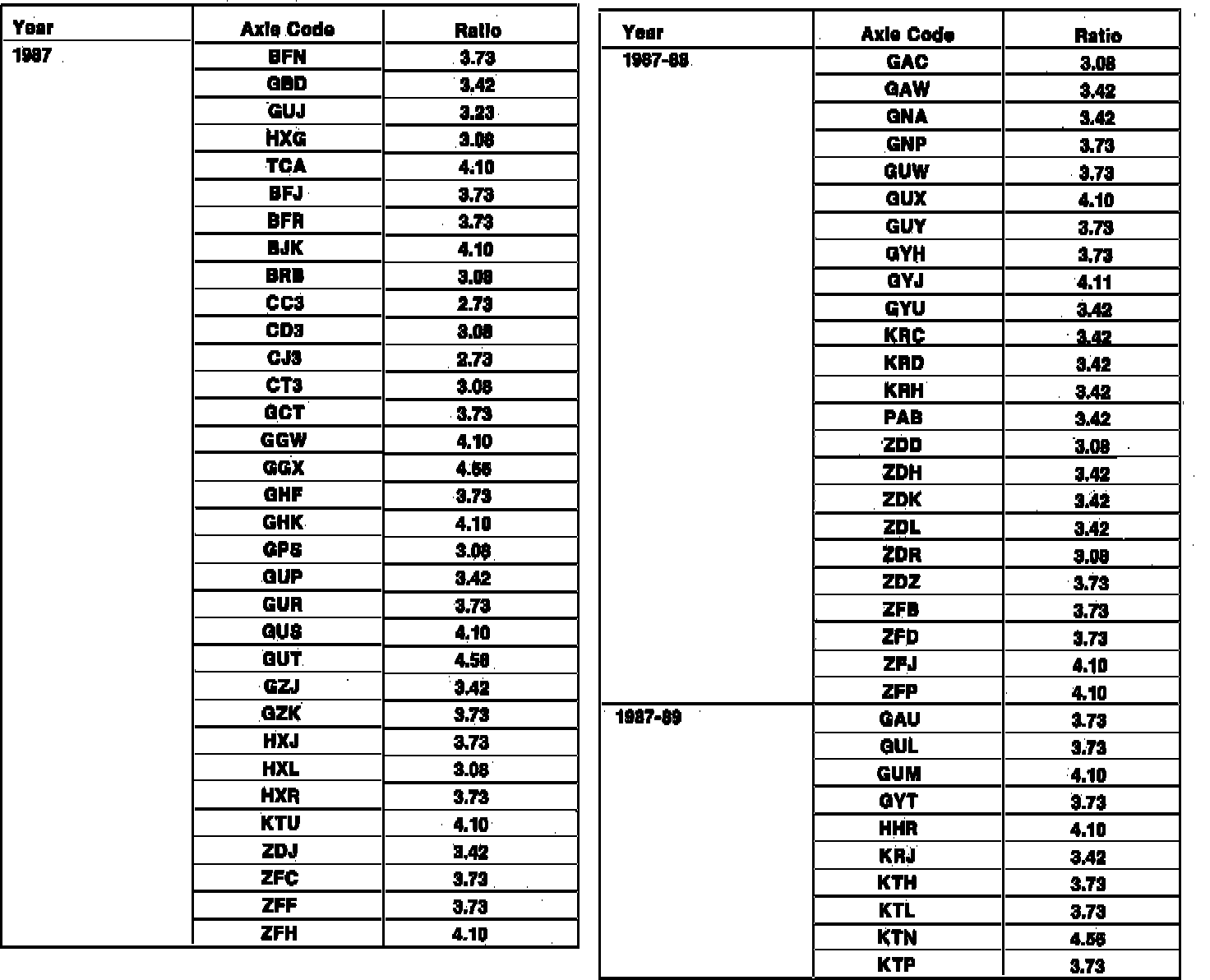

Drive Axle Identification:

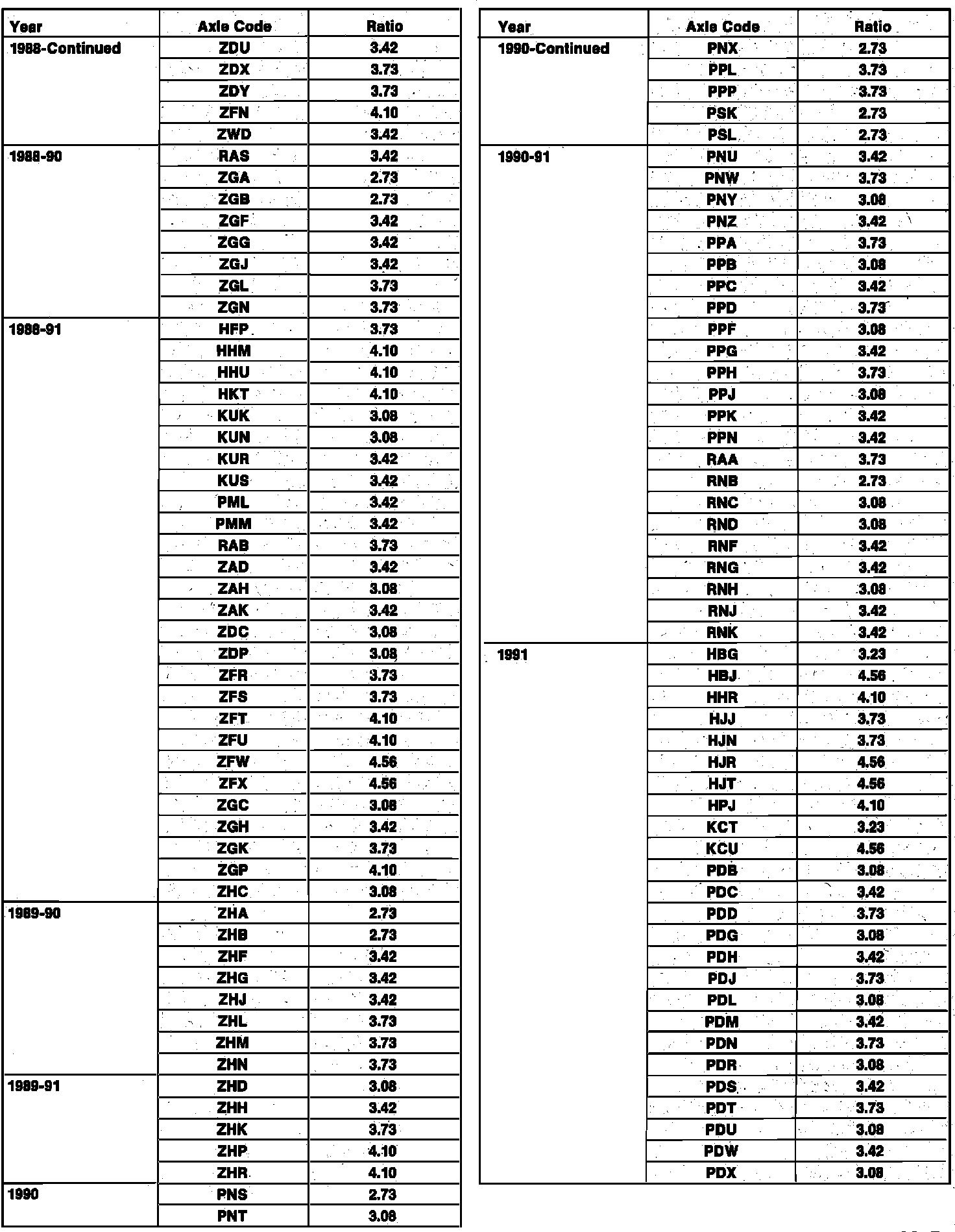

Drive Axle Identification:

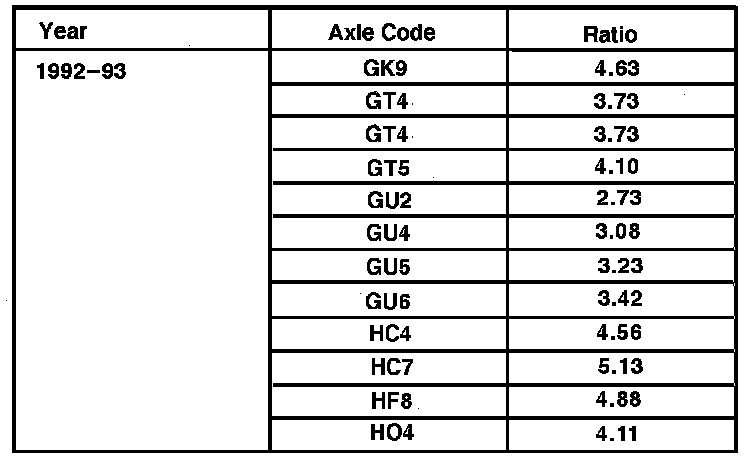

Drive Axle Identification:

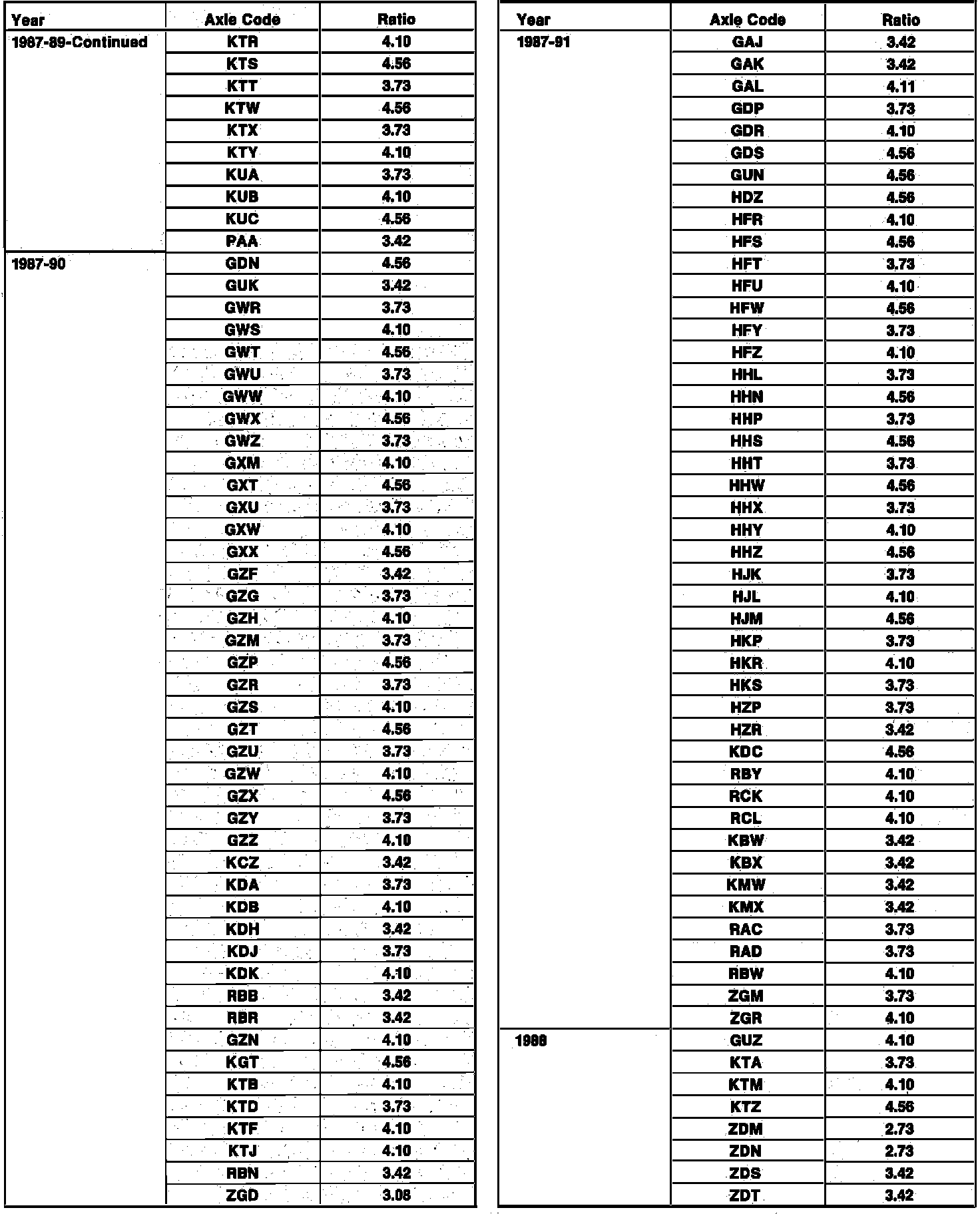

Drive Axle Identification:

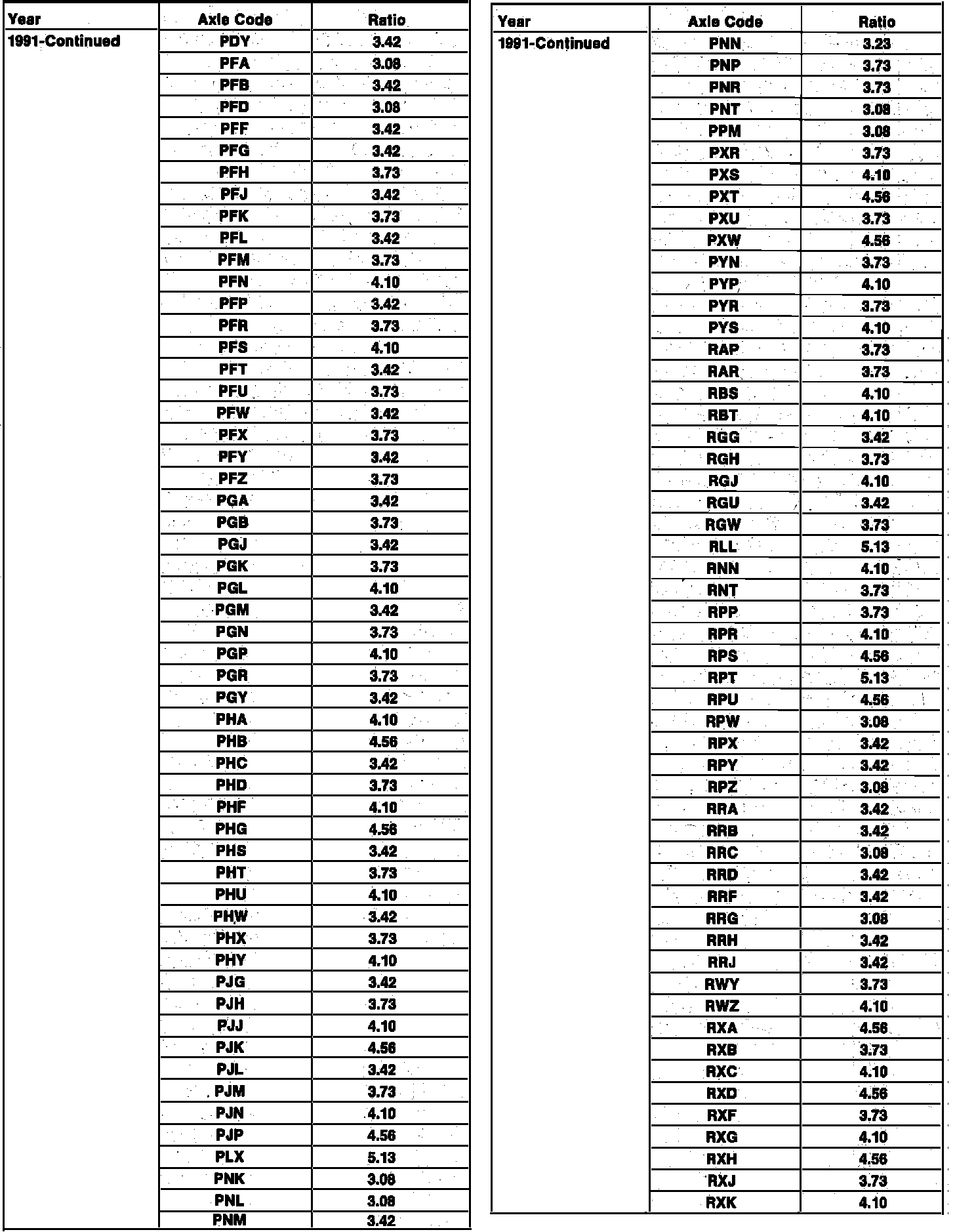

Drive Axle Identification:
Drive Axle Identification:
