Saginaw Integral Power Steering Gear

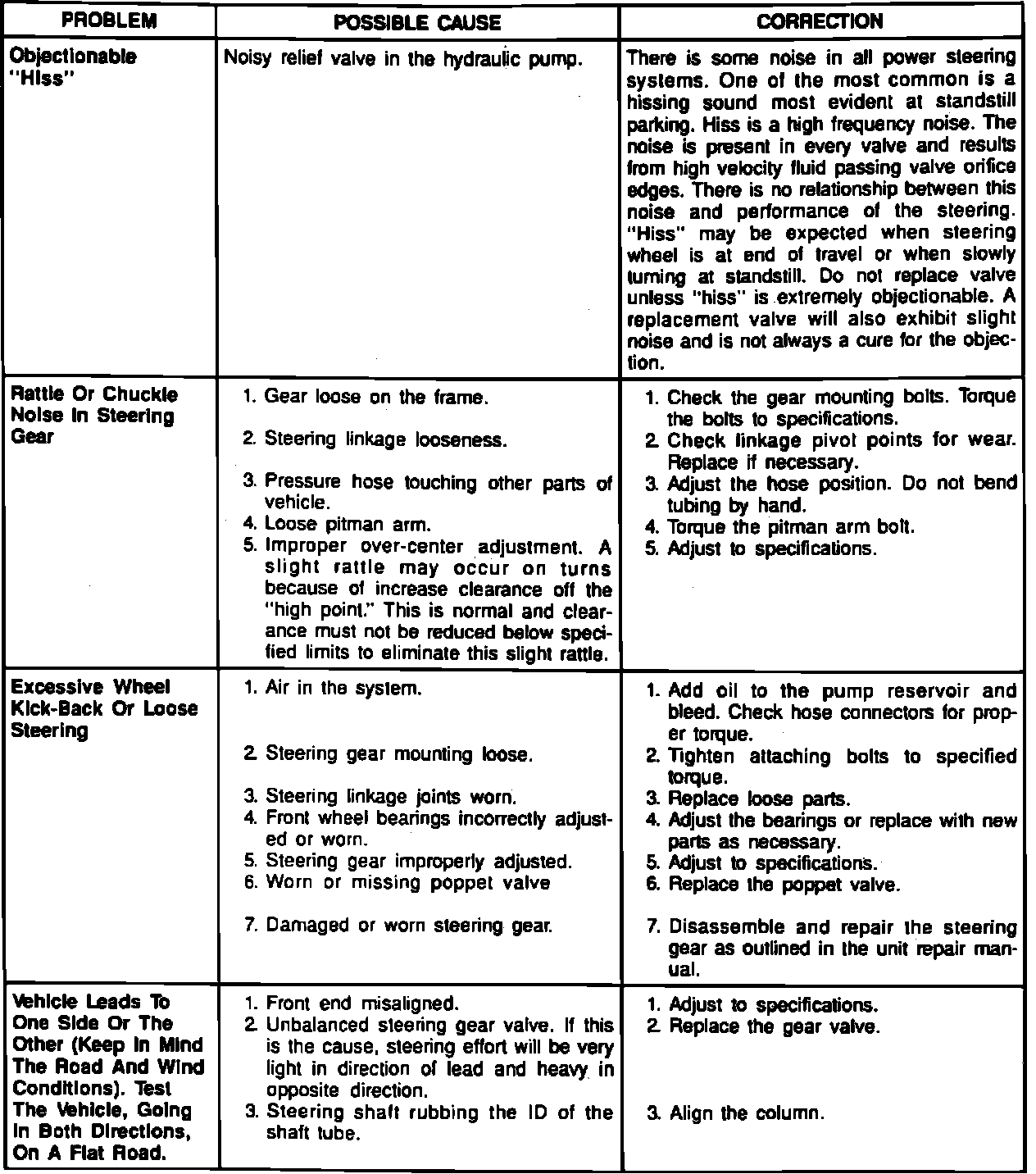

Fig. 1 Troubleshooting power steering system:

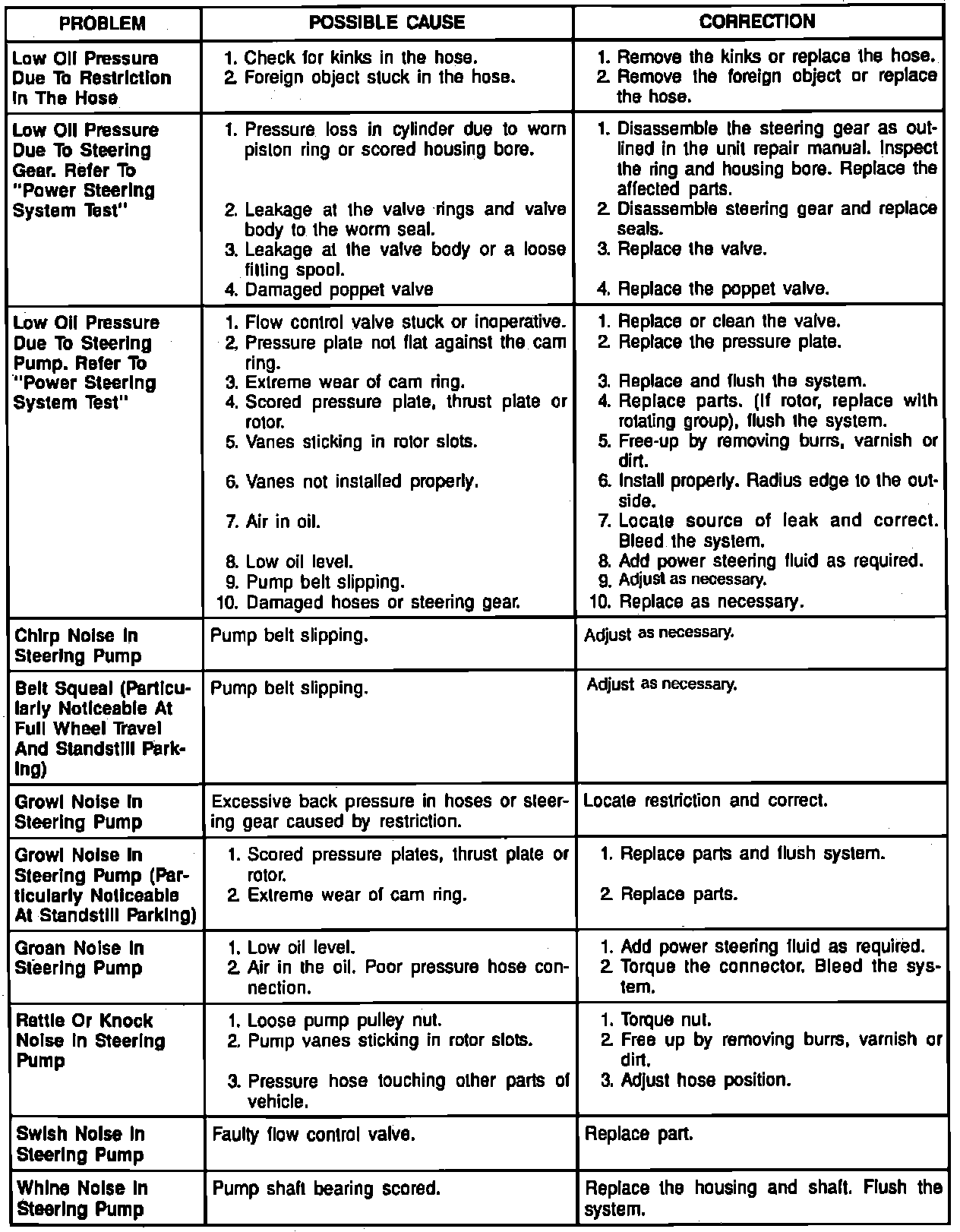

Fig. 1 Troubleshooting power steering system:



Fig. 1 Troubleshooting power steering system:
