Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Testing and Inspection >> Component Tests and General Diagnostics >> Disassembly and Testing - SI Series

Disassembly and Testing - SI Series

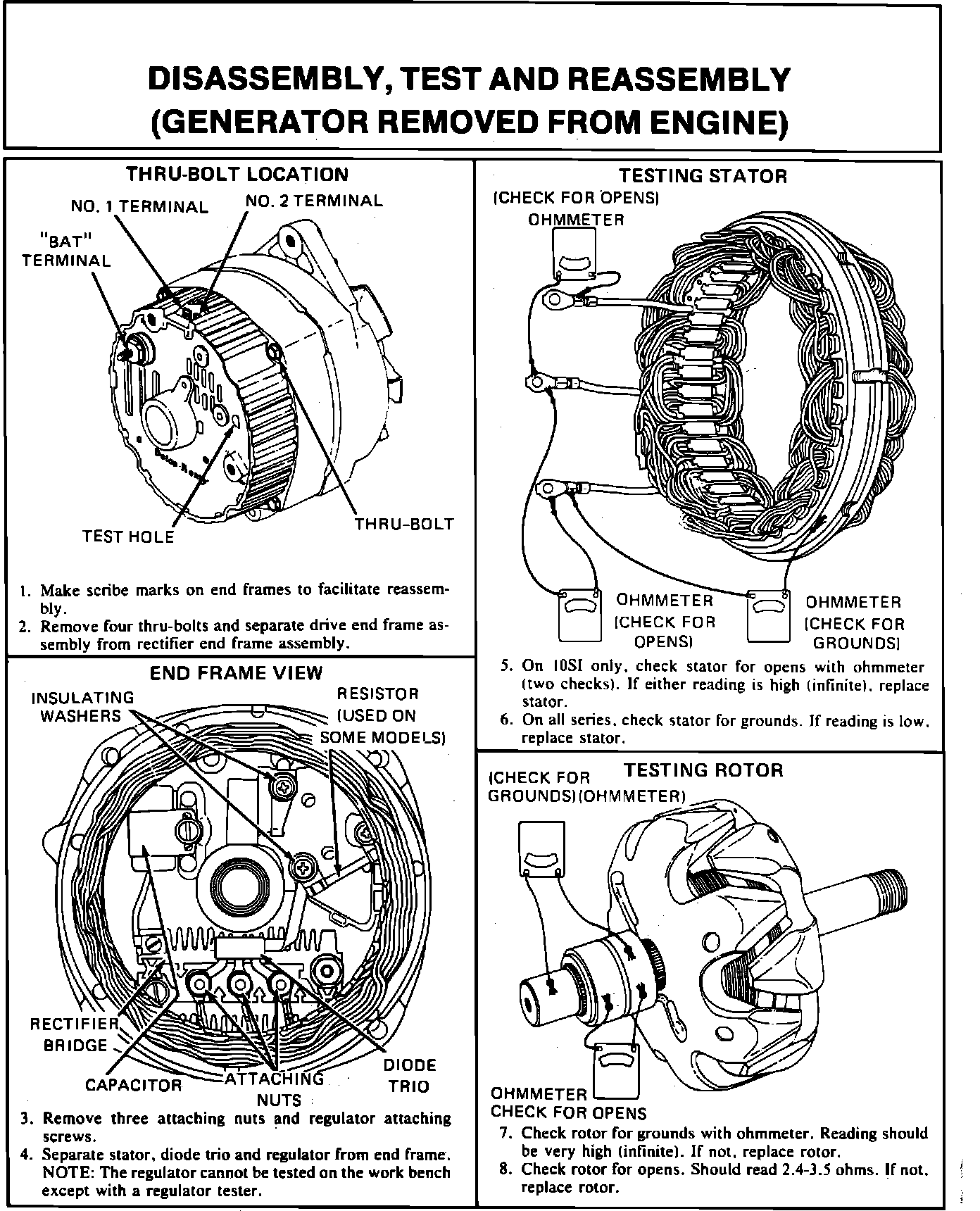

Testing Of SI Series Alternators - Part 1 Of 3:

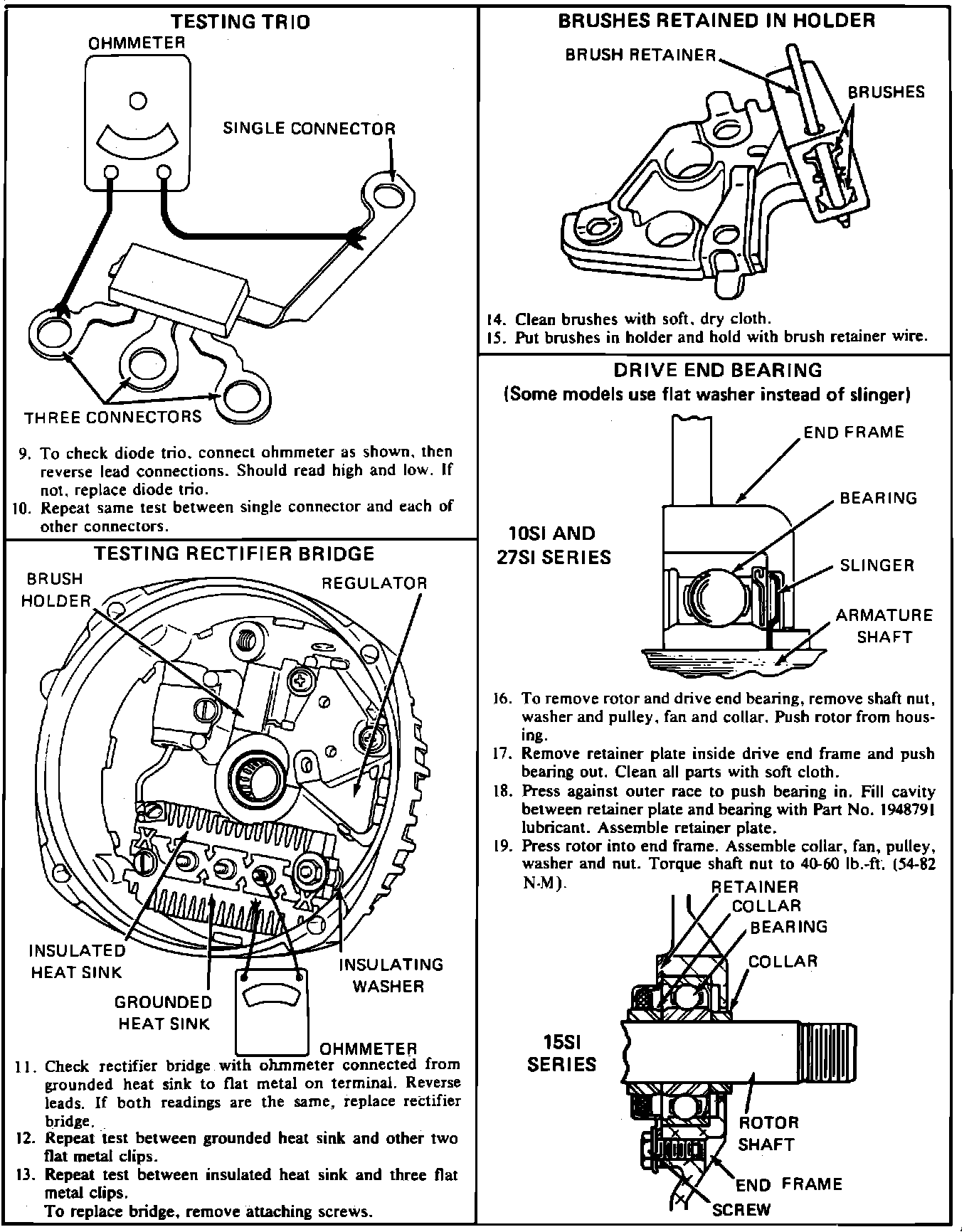

Testing Of SI Series Alternators - Part 3 Of 3:

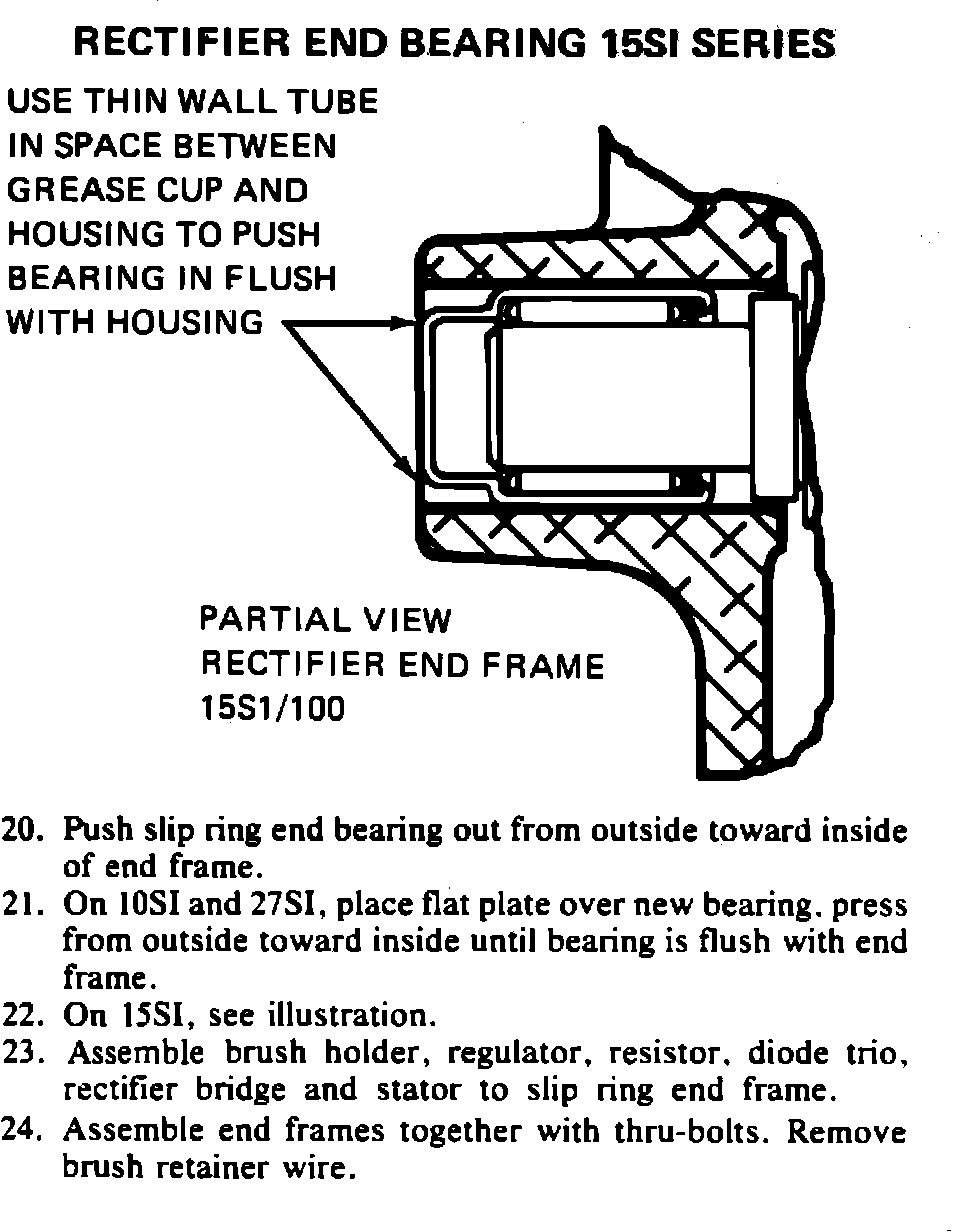

Testing Of SI Series Alternators - Part 2 Of 3:
