Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Fastener Tightening Specifications - Sequence

Fastener Tightening Specifications - Sequence

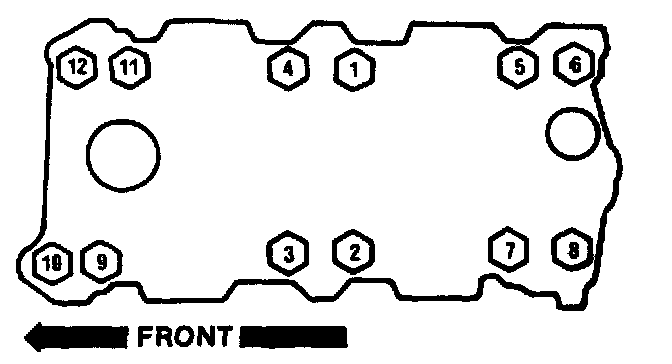

Intake Manifold Torque Sequence:

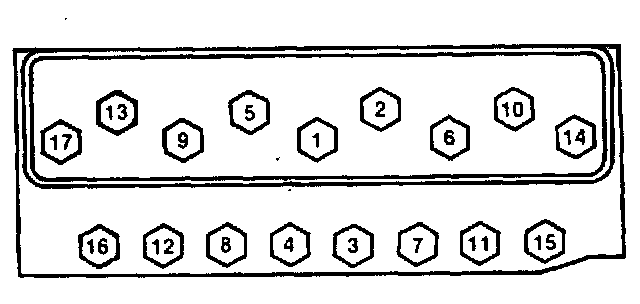

Cylinder Head Torque Sequence:
