Lower Intake Torque Specifications

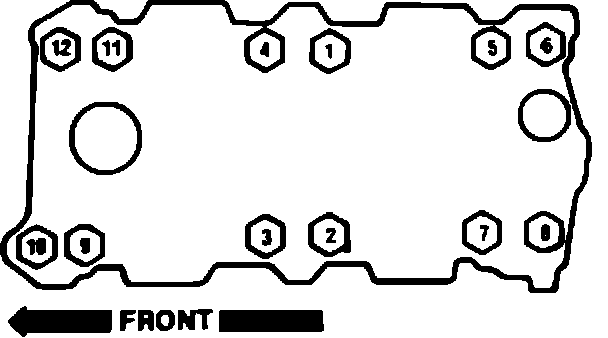

Intake Manifold Torque Sequence:





Torque in illustrated sequence to: 48n.m (35 ft.lbs.)
