Fuel Pump Relay
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Wiring Diagram For Chart A-5 - Fuel Pump Relay Circuit Diagnosis (One Fuel Tank):

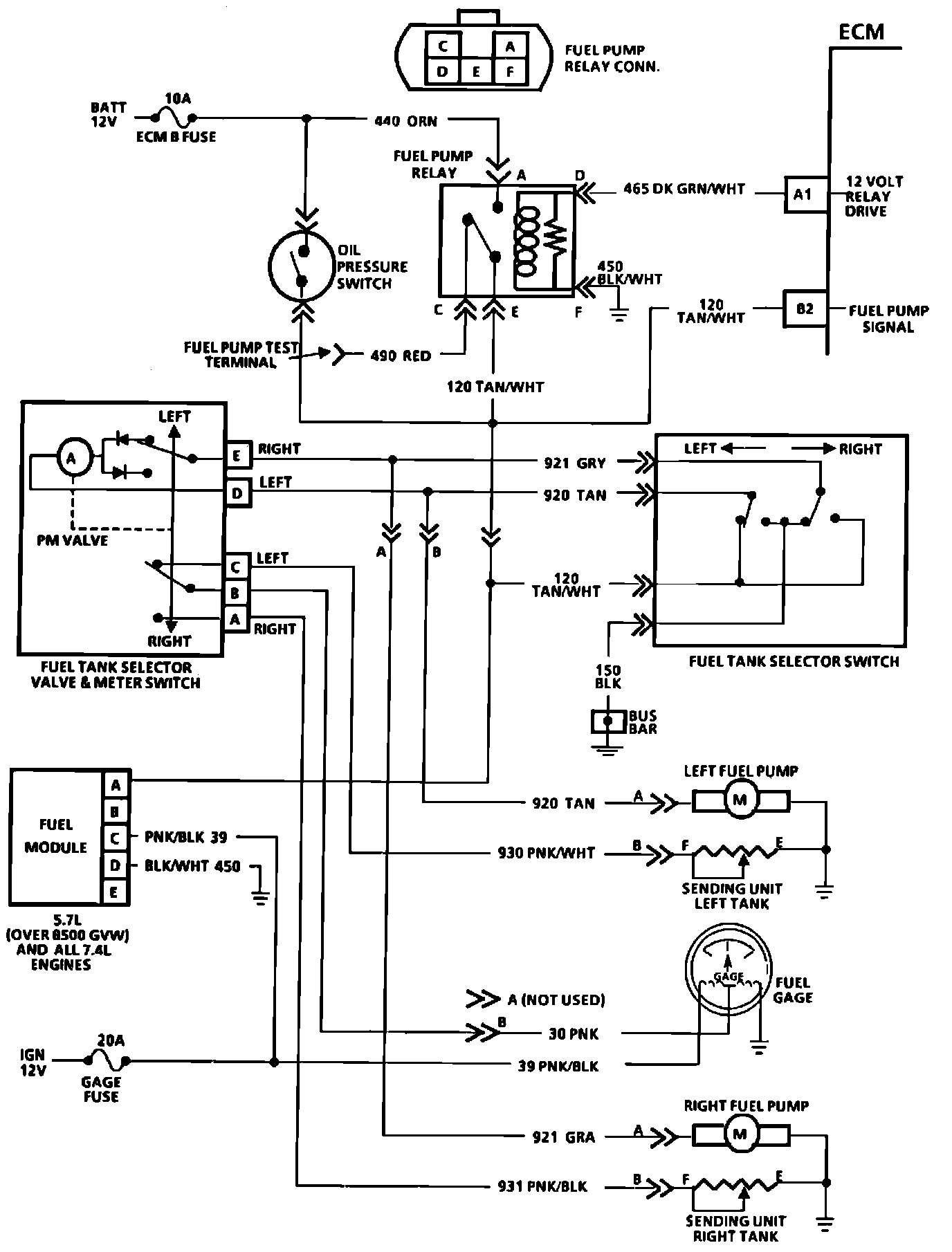

Chart A-5 - Fuel Pump Relay Circuit Diagnosis (Two Fuel Tanks):
