Electronic Brake Control Module: Locations

Electronic Control Unit:

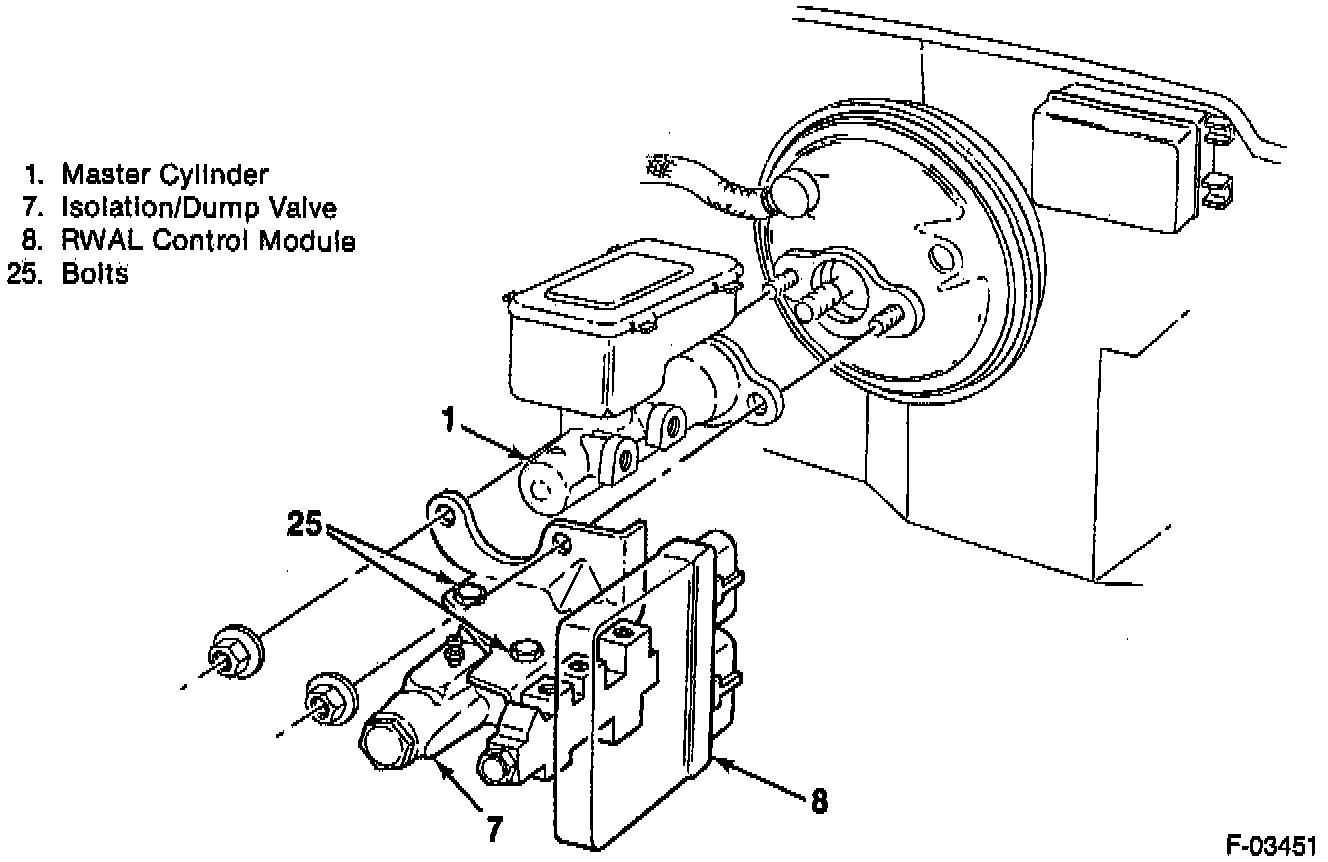

The Electronic Control Unit (ECU) is located on a bracket below the brake master cylinder.
