Electronic Brake Control Module: Description and Operation

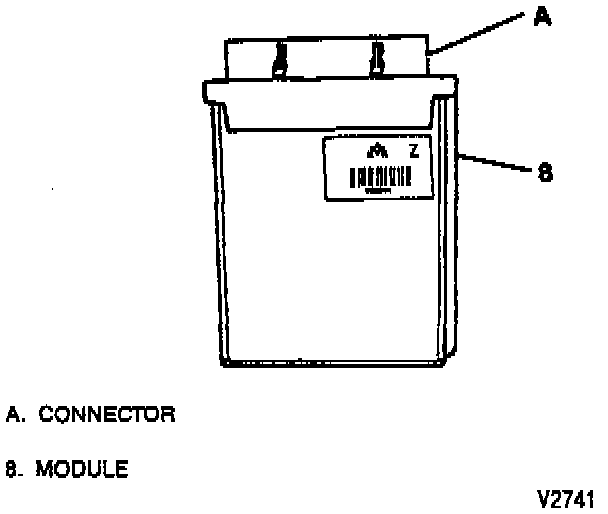

Electronic Control Module (ECU):

The Electronic Control Unit (ECU) mounts to a bracket next to the master cylinder. It contains a microprocessor and the software for system operation. During a severe brake application the ECU controls the Isolation/Dump Valve to prevent the rear wheels from locking up. The ECU receives input signals from the Vehicle Speed Sensor (VSS) Buffer and stop lamp switch.
