Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Injector >> Specifications >> Injector Resistance, Application Chart & J-39021 Tester Values

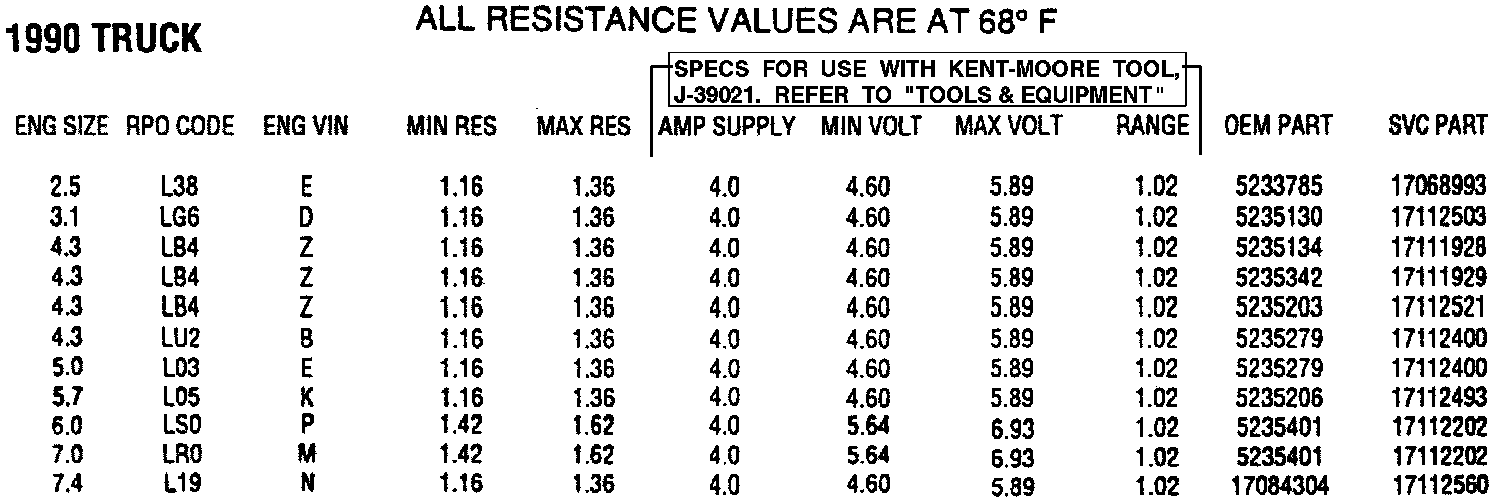

Injector Resistance, Application Chart & J-39021 Tester Values

Fuel Injector Resistance, Application & Tester Specifications.:
