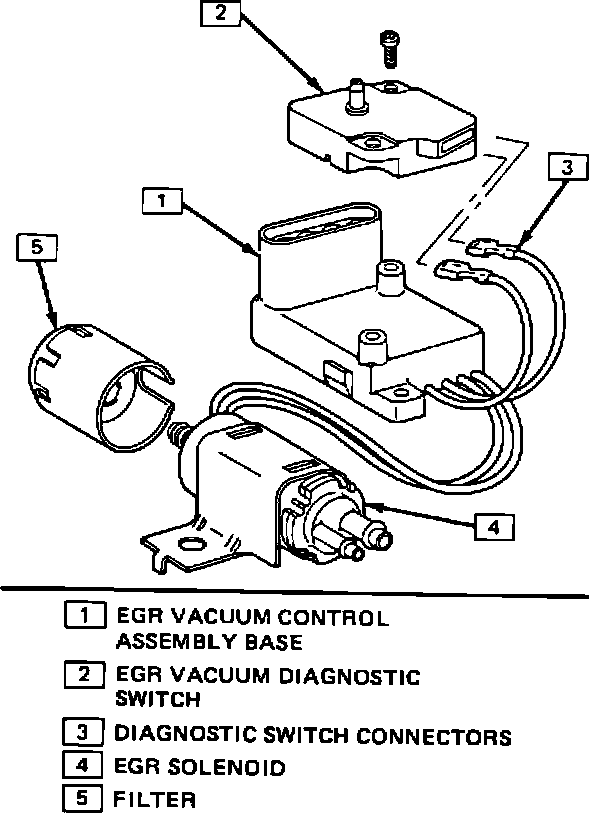

EGR Electronic Vacuum Regulator Solenoid: Service and Repair

EVRV Filter Replacment:





The EVRV filter should be replaced every 30,000 miles.
1. Grasp and pull filter "OFF" with a rocking motion.
2. Push new filter "ON", making sure cut-out for wires is properly aligned.
