Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Specifications >> ECM Pinout/Terminal ID Charts

ECM Pinout/Terminal ID Charts

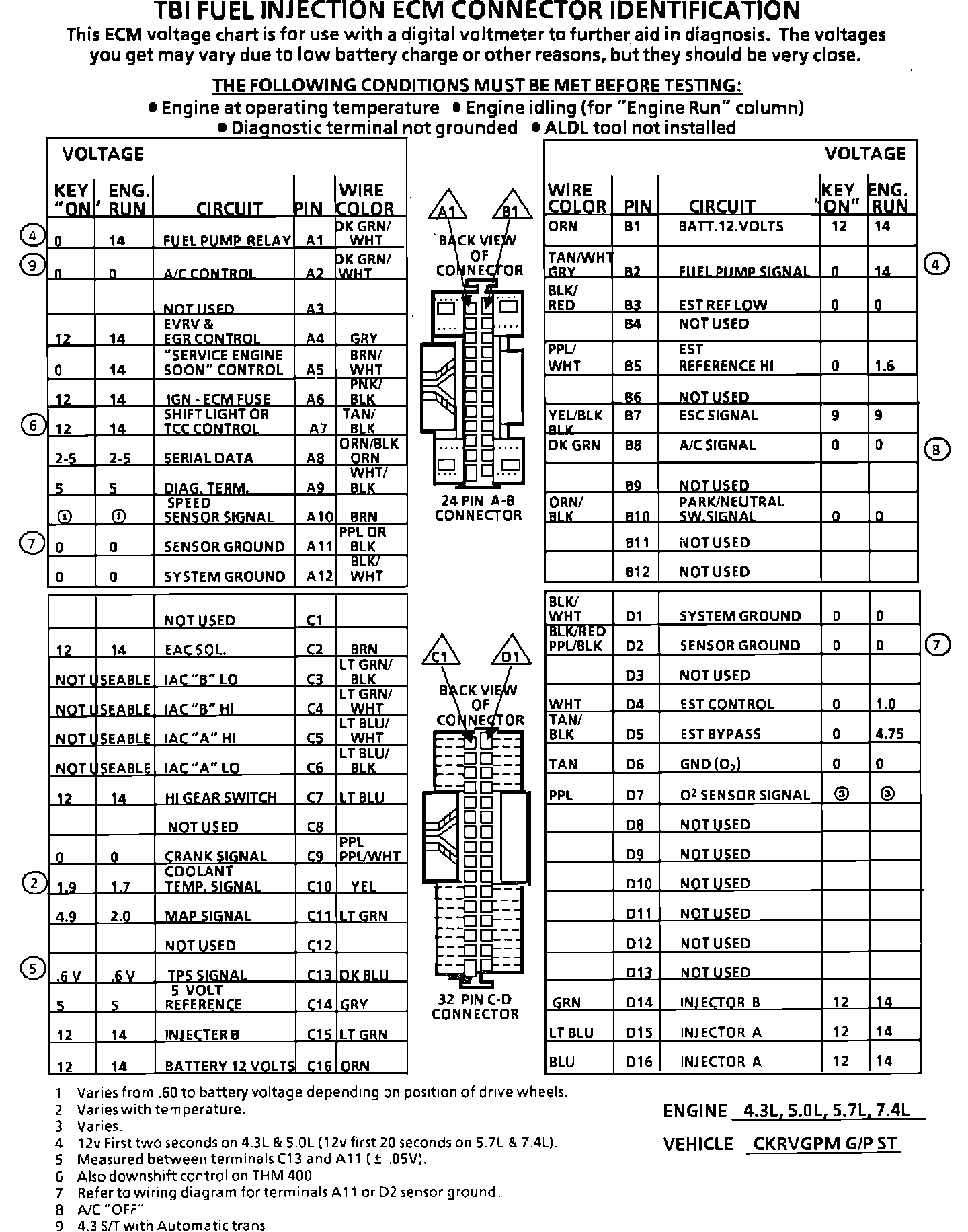

ECM Connector Terminal End View:
