Chevy Truck
>>
1990
>>
Suburban 1/2 Ton 2WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
Fleetside
Fleetside

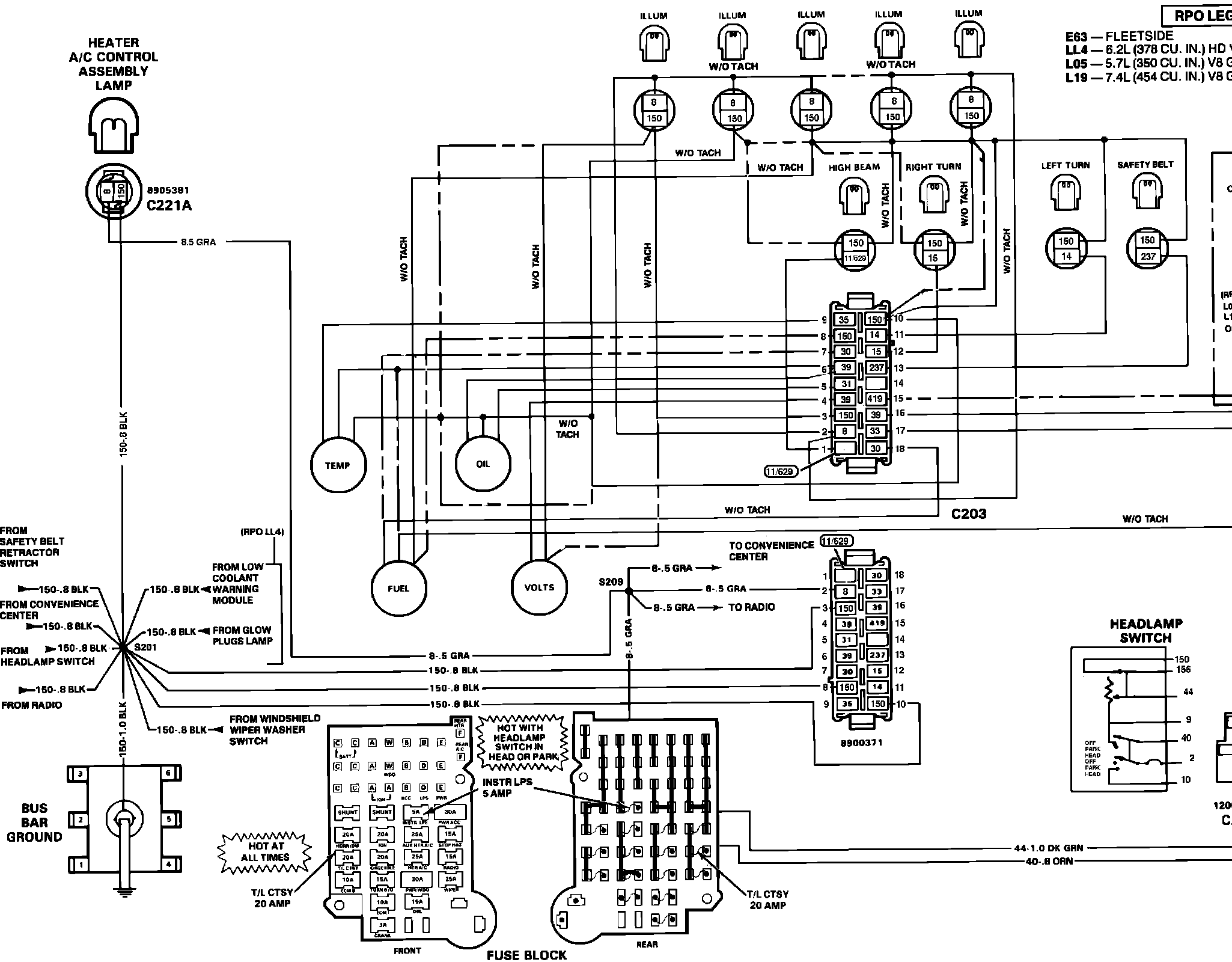

� �Lamps: Instrument Panel (Fleetside):
