Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Quad >> Less Daytime Running Lamps

Less Daytime Running Lamps

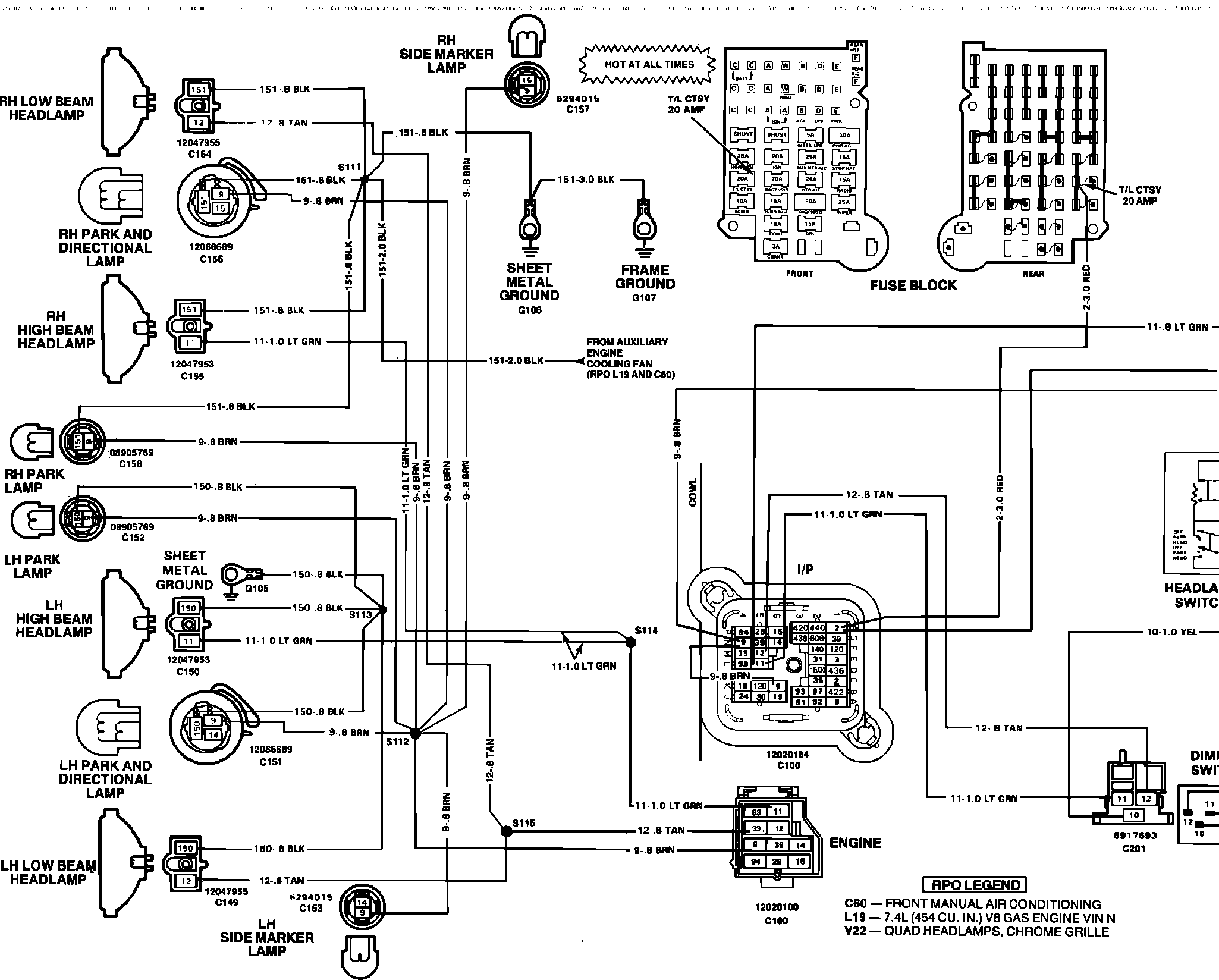

�SqDQuad Headlamps less Daytime Running Lamps:
