Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Speedometer Head >> Application and ID

Speedometer Head: Application and ID

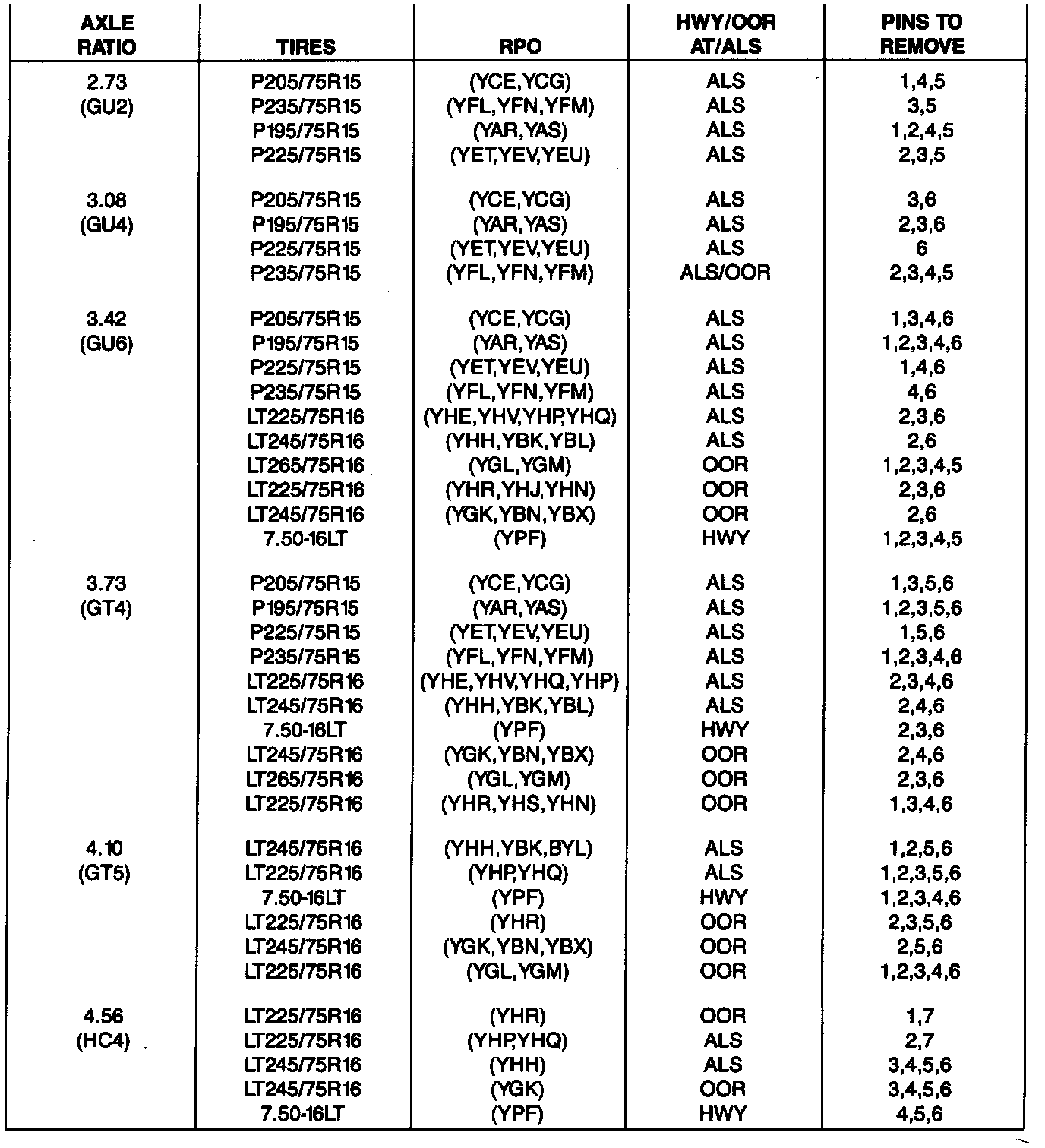

Speedometer Calibration Chart For Electronic Speedometers:
