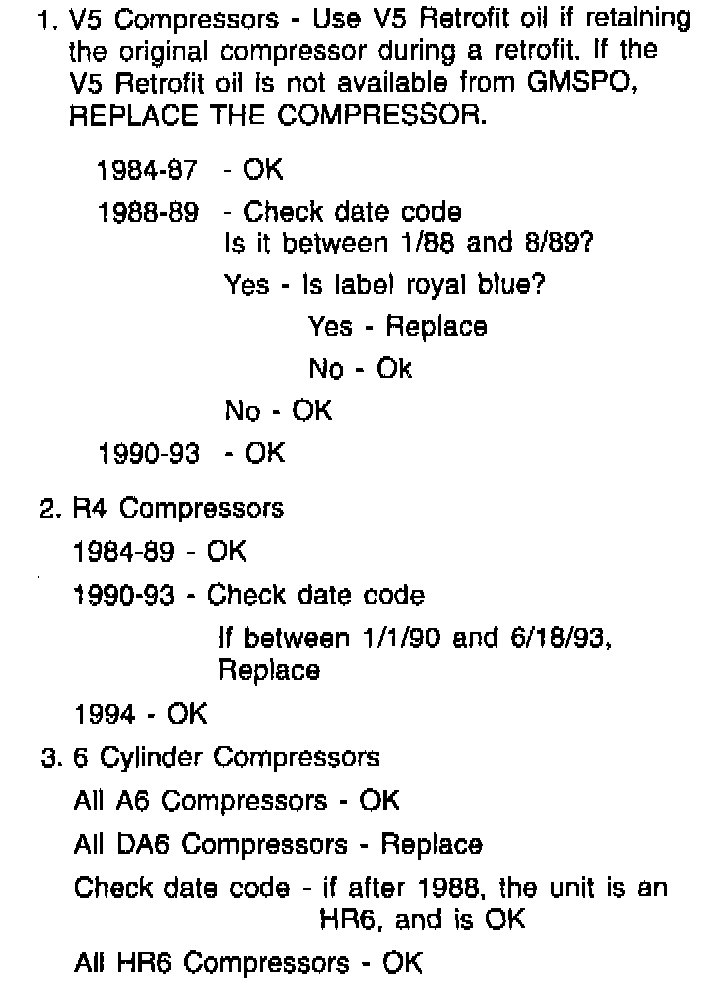

Compressor Replacement Chart





Important:
It is important to check the date code on the compressor. Any vehicle may have had a compressor replaced either during or after the warranty period. The date code will determine whether or not the compressor must be replaced.
