Expansion Block/Orifice Tube: Locations
Evaporator Tube:

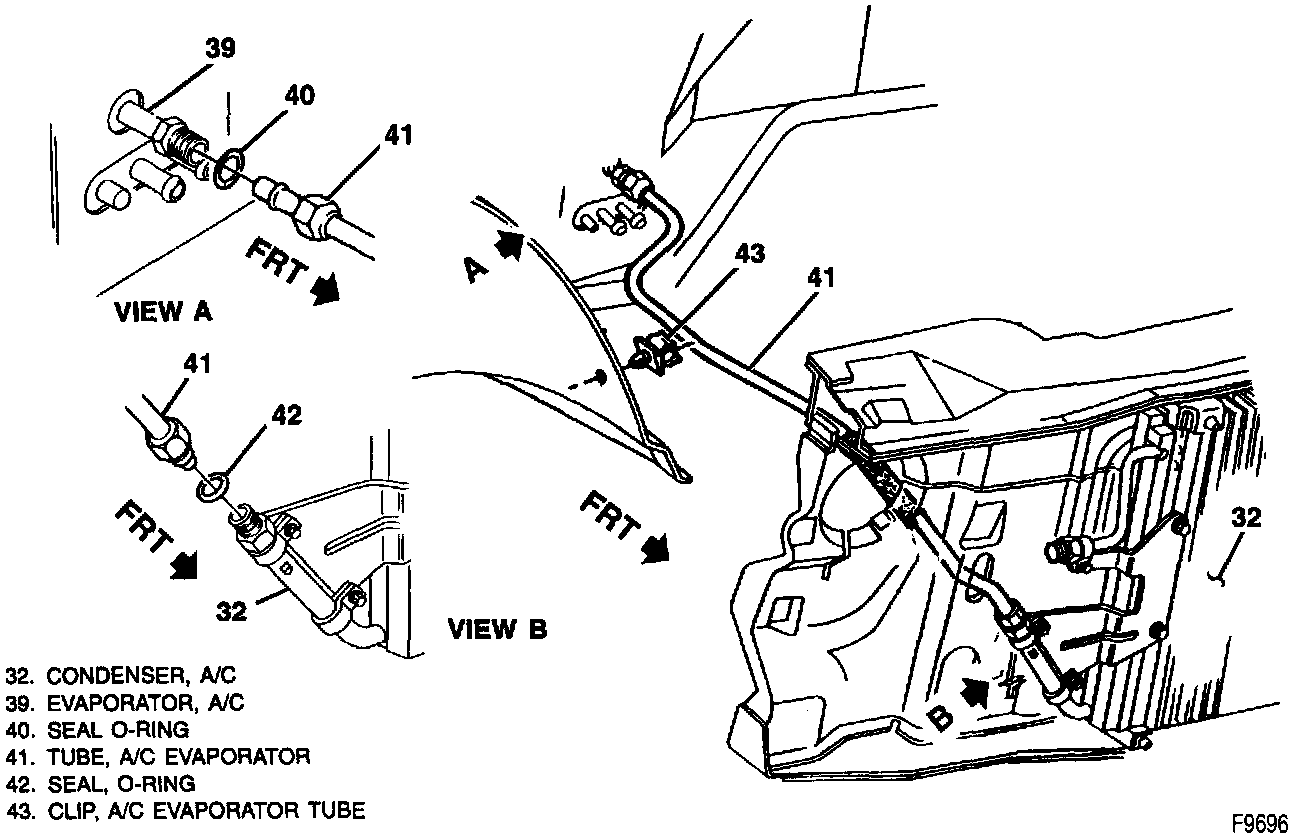

The Expansion Tube is located in the evaporator inlet pipe (high side line) at the liquid line connection.
The Expansion Tube is located in the evaporator inlet pipe (high side line) at the liquid line connection.
