Suburban 1/2 Ton 2WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Cruise Control
Cruise Control

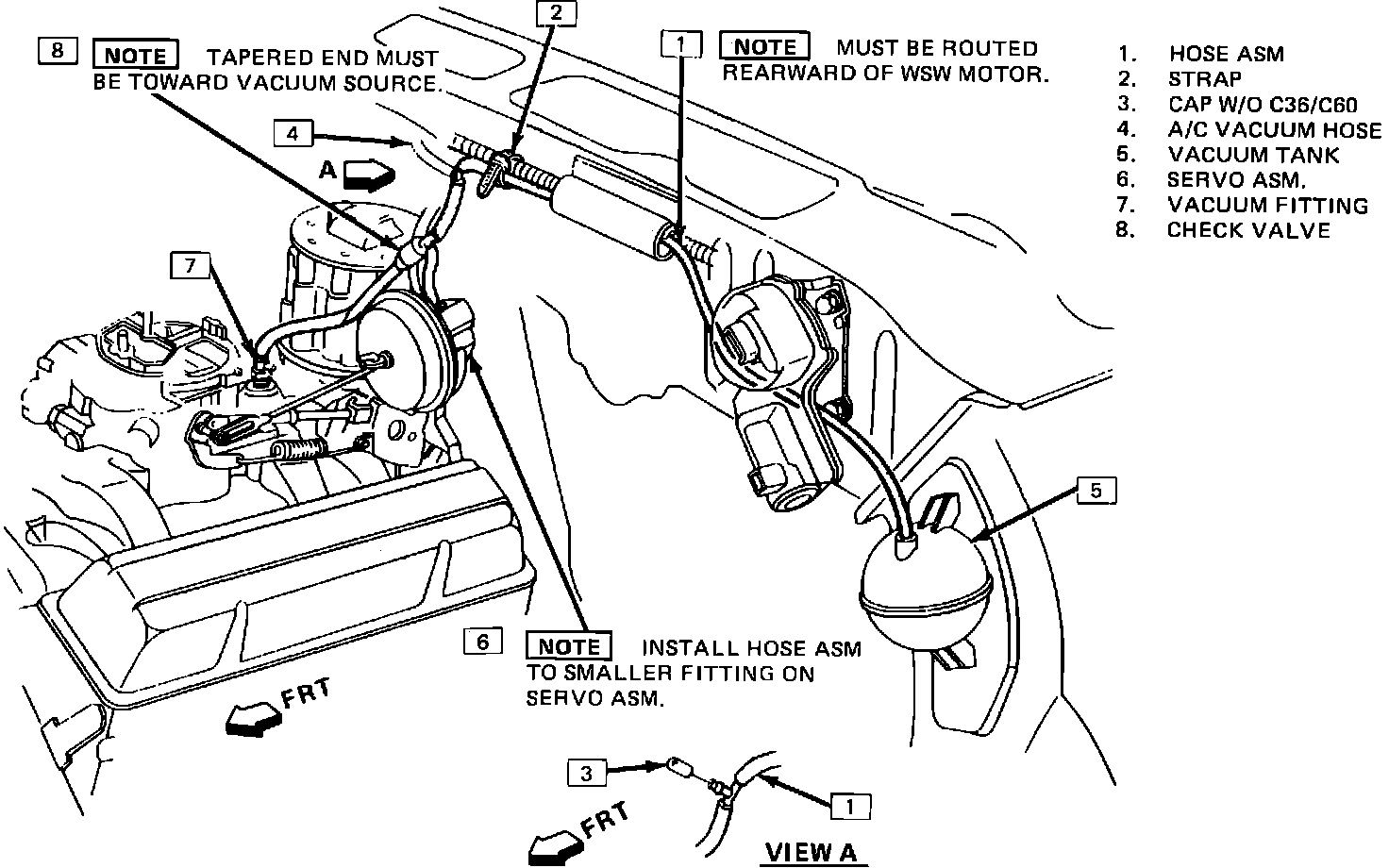

Fig. 41 Vacuum hose routing. Models w/accumulator & check valve (models less accumulator and/or check valve similar):

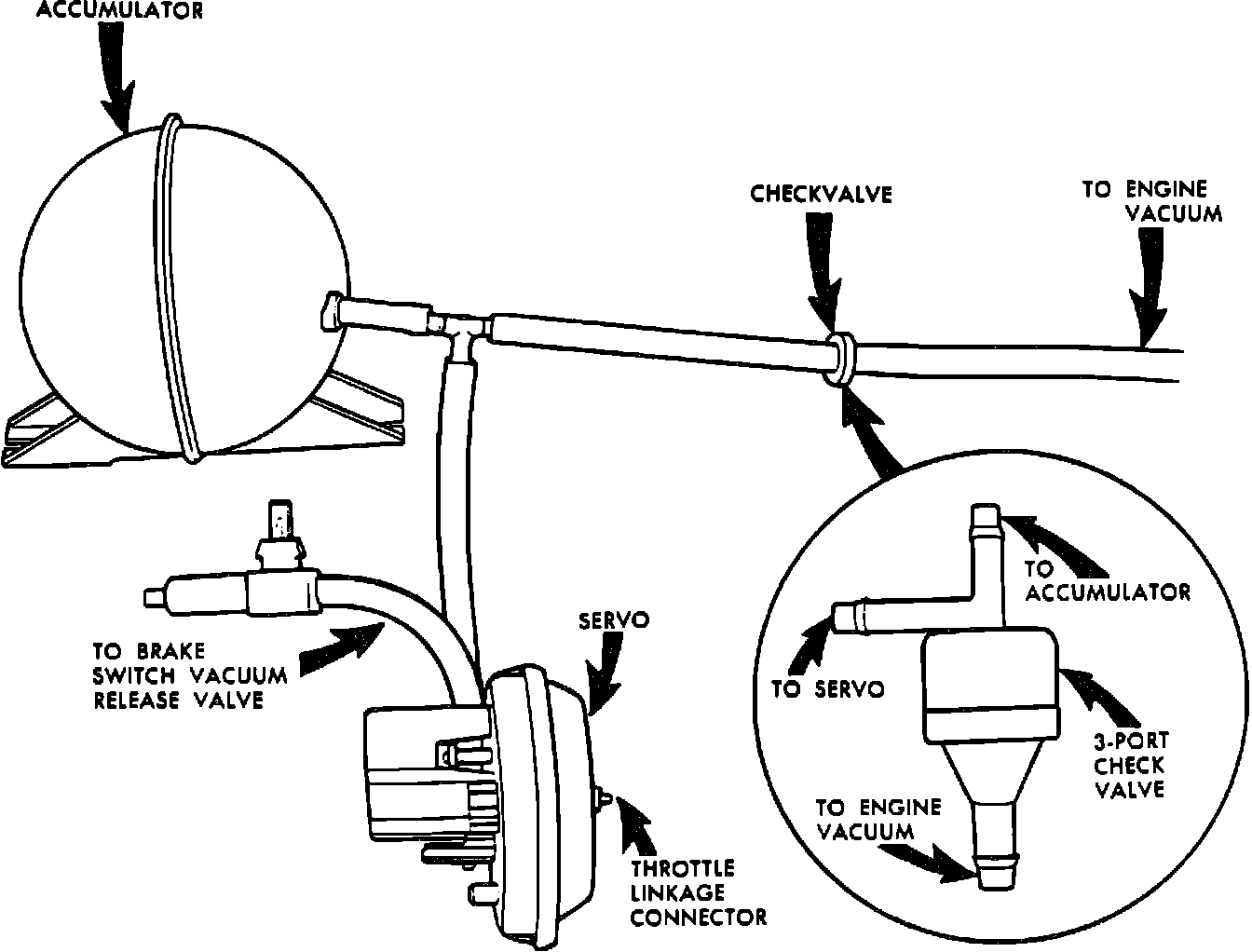

Fig. 49 Vacuum hose routing. 1987-91 R & V Series w/V8 engine:
