Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Unit Repair

Unit Repair

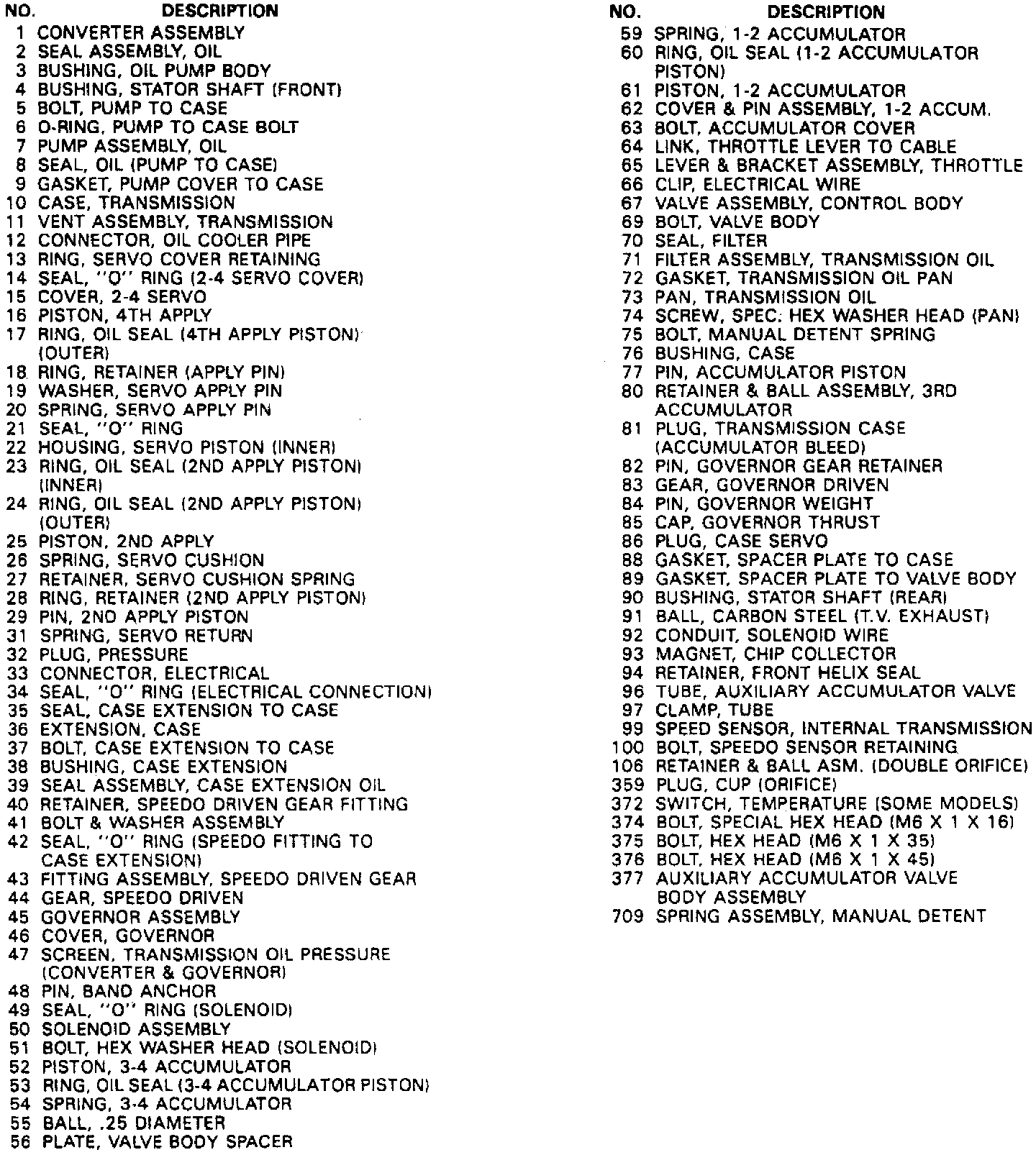

External Components ( Part 1 Of 2 ):



External Components ( Part 2 Of 2 ):
