Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tail Lamp >> Utility & Suburban

Utility & Suburban

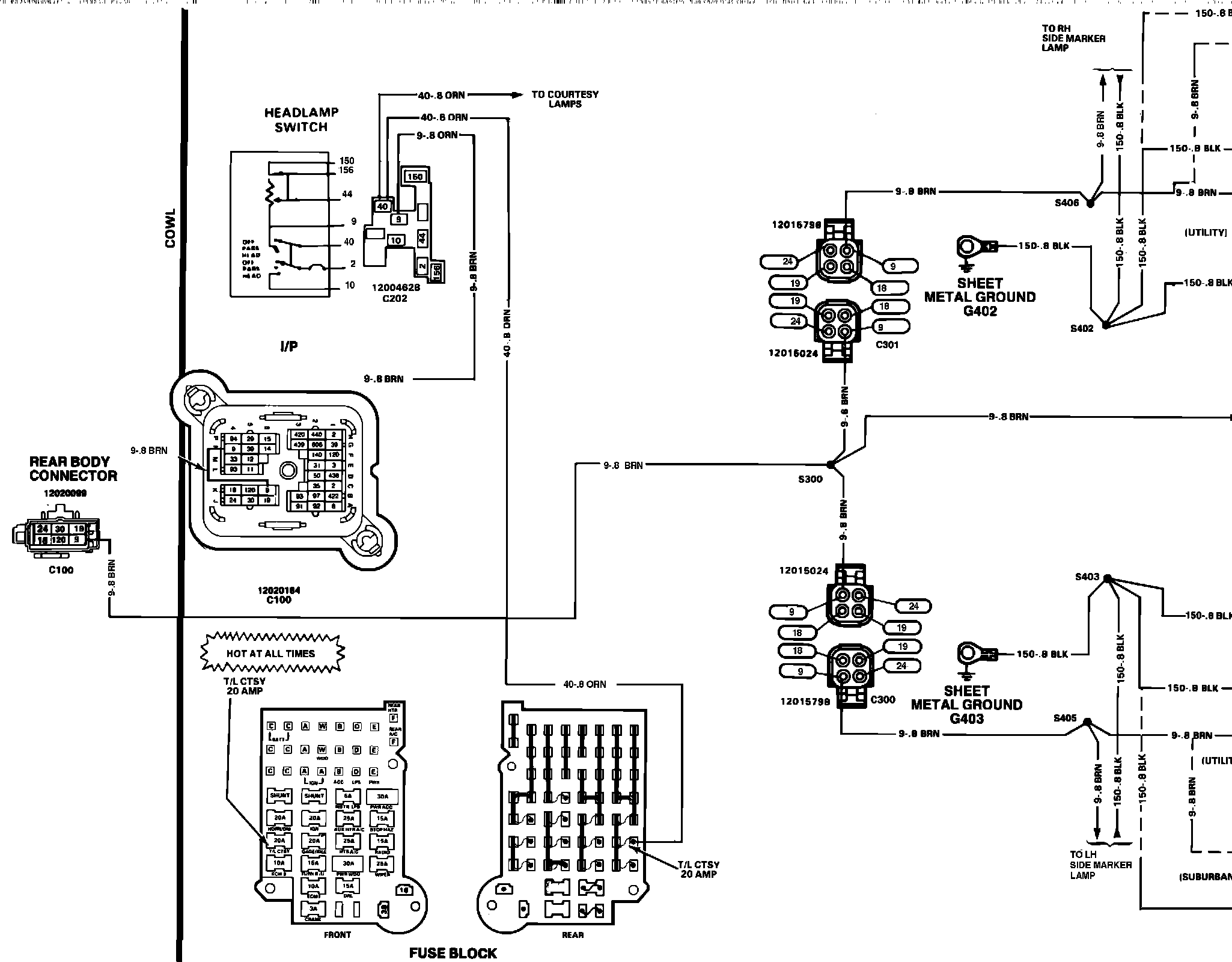

���DTail Lamps (Utility and Suburban):
