Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Wiring Circuit >> With 9SI Generator

With 9SI Generator

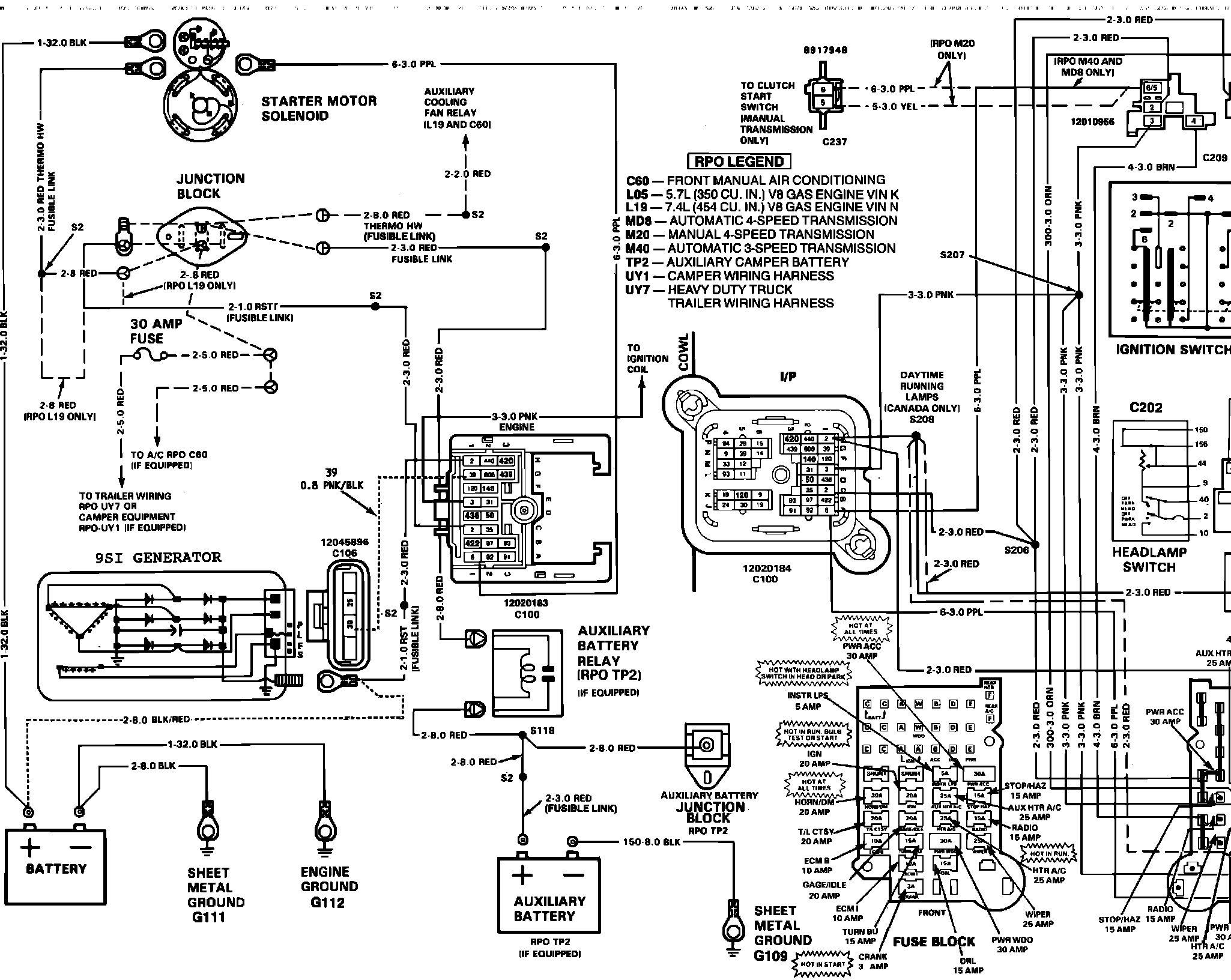

=��2Power Distribution and Charging System with 9SI Generator:
