Chevy Truck
>>
1990
>>
Suburban 1/2 Ton 2WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

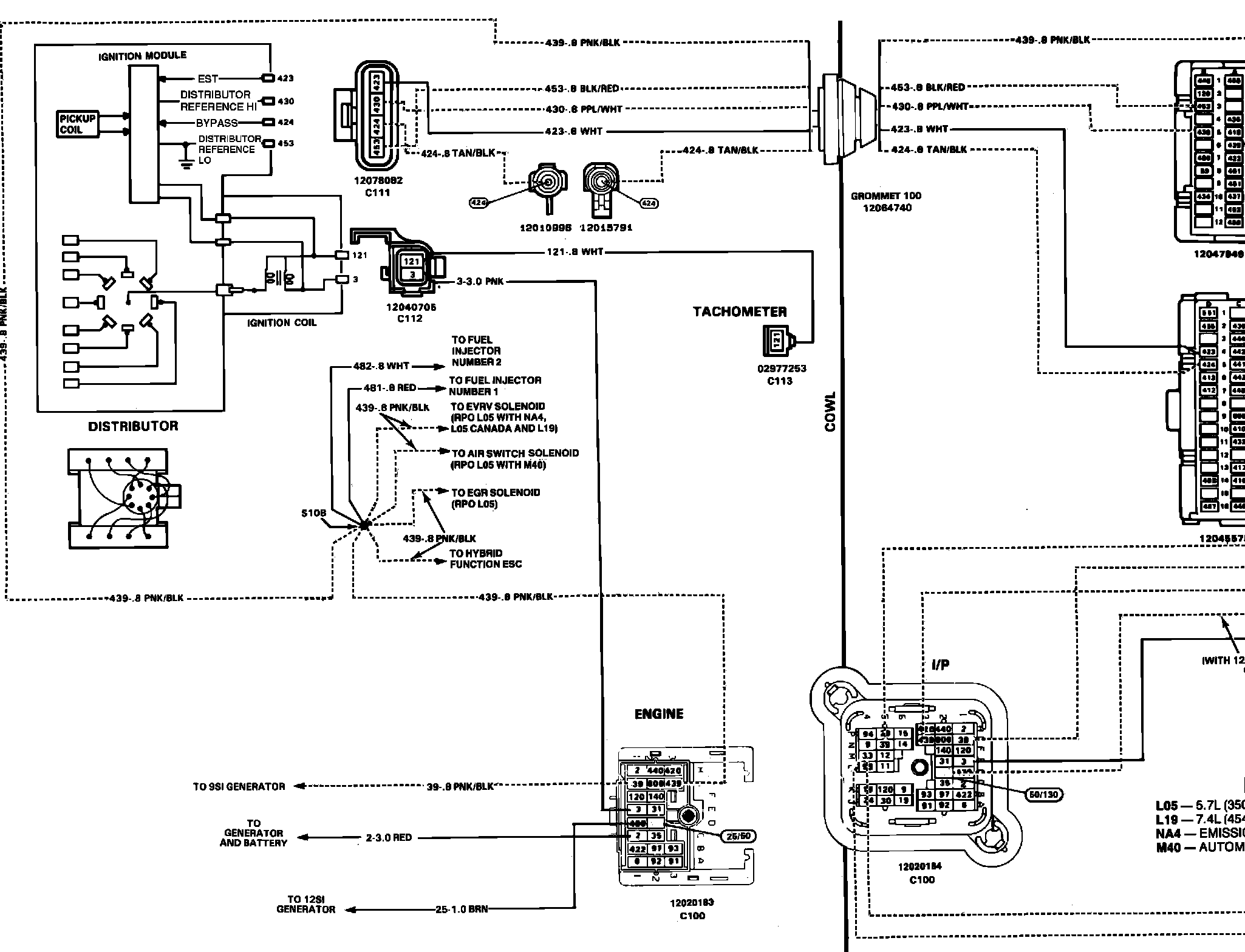

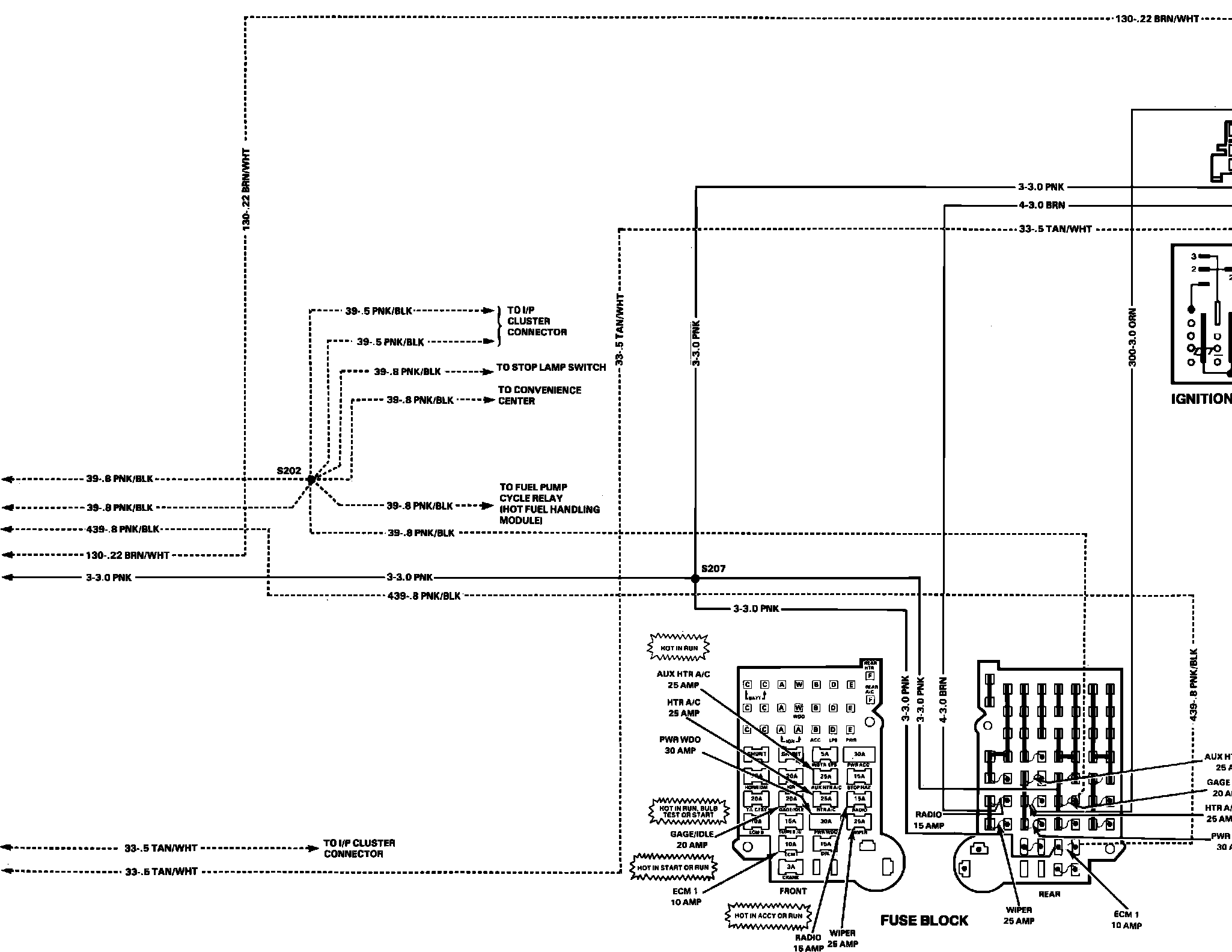

Ignition Controls
Ignition Controls
{>T%Ignition System:
�T%Ignition System:
