Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Suburban/Utility

Suburban/Utility

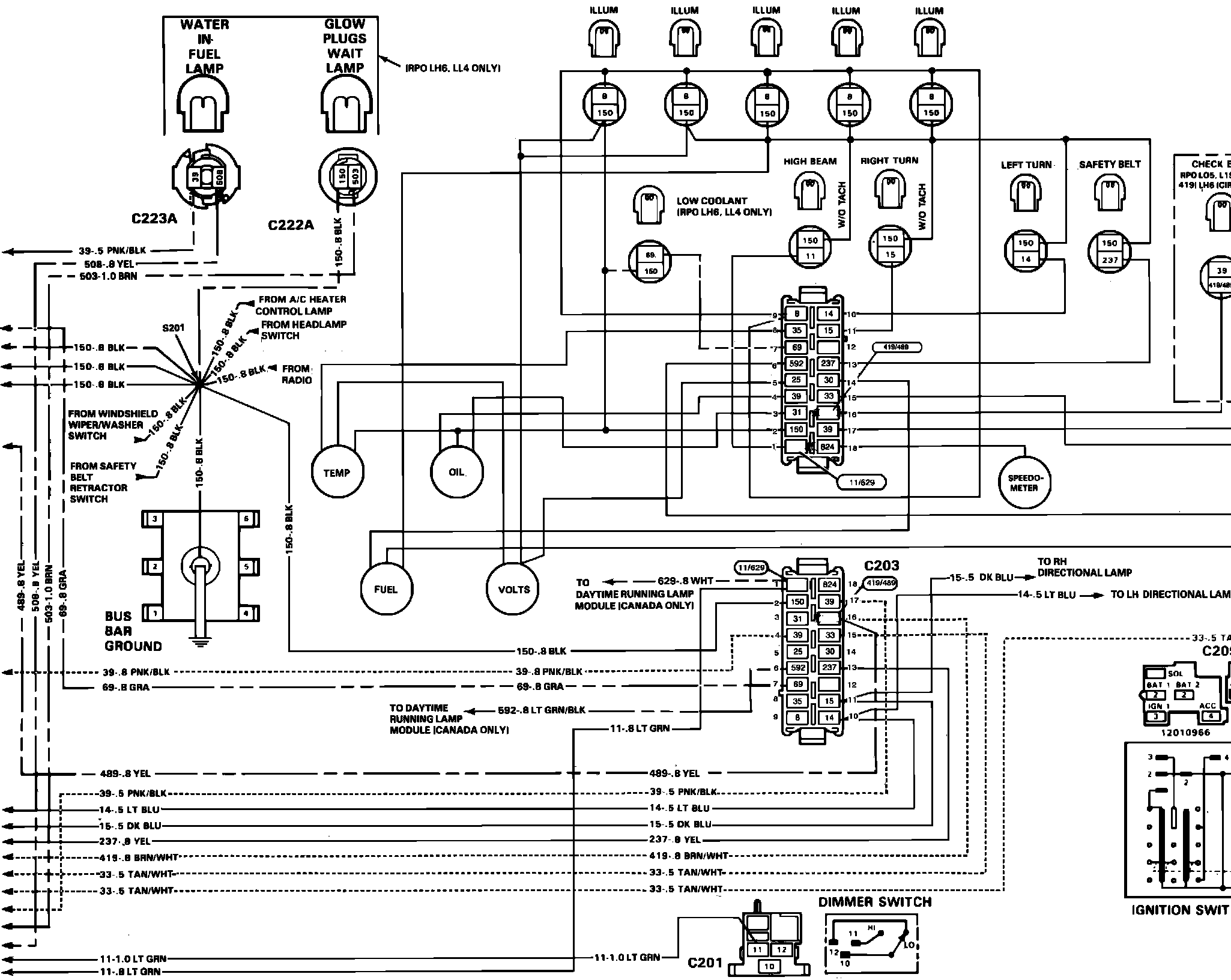

��BInstrument Panel Indicators (Suburban and Utility):

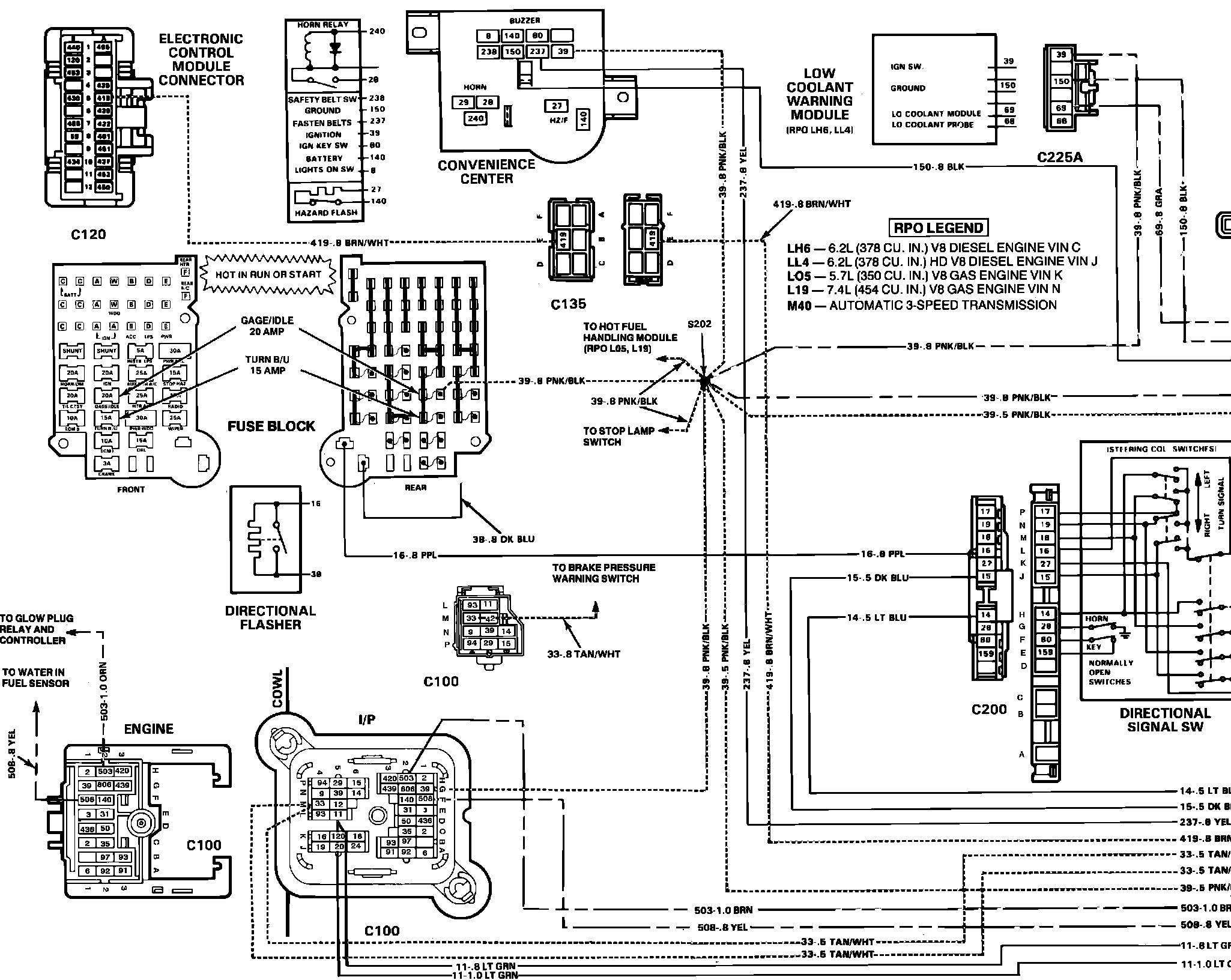

�BInstrument Panel Indicators (Suburban and Utility):
