Paint - Truck Codes and Suppliers
9218chevy05
Number: 90-164-10
Section: 10
Date: February 1990
Corporate Bulletin No.: 961010
Subject:
TRUCK PAINT CODES AND SUPPLIERS
Model and Year:
1990 ALL TRUCKS
TO: ALL CHEVROLET DEALERS
The following is a list of paint code numbers from various suppliers for the 1990 model year. These colors can be obtained locally.
DuPont refinish paints are available in:
* L-Lucite(R) - Acrylic Lacquer
* A-Centari(R) - Acrylic Enamel
* J-Cronar(R) - Polyoxithane Enamel
* K-Chromabase(R)
* 35OS-Flexible Additive
* 31OS-Black 123 Vinyl Lacquer - Chip Resistant
* 33OS-White 123 Vinyl Lacquer - Chip Resistant
IMPORTANT:
Vinyl resin must be added to the base color when painting interior components.
DuPont vinyl resin # 304 - instrument panel
DuPont vinyl resin # 305 - all remaining interior parts except seats. DuPont vinyl resin # 306
- seats and vinyl roofs.
When ordering DuPont paint, use "L", "A", "J", "K", 350S or 123 White or 123 Black with the appropriate DuPont code.
PPG (Ditzier) refinish paints are available in:
* DDL - Duracryl - Acrylic Lacquer or Acrylic B/C
* DBU - Deltron - Basecoat/Clearcoat
* DAR - Delstar - Acrylic Enamel
* DAU - Deltron - Acrylic Urethane
* UCV - Vinyl Colors
* DX - 369 - Flexative - Flexible Finishes
* DX - 54 - Roadguard - Road Abrasion Protection
When ordering PPG (Ditzler) paint, use "DDL", "DBU", "DAR", "DAU", "UCV", "DX-54", "DX- 369" with appropriate Ditzler code.
Sherwin-Williams, Acme/Rogers, and Martin-Senour are available in acrylic lacquer, acrylic enamel, or acrylic urethane.
S-W use: prefix 34, J4 or L10 for acrylic lacquer,
prefix 35, J5 or F10 for acrylic enamel,
prefix UB for acrylic urethane in a basecoat/clearcoat system
prefix US for acrylic urethane in a single stage system
ACME use: prefix 84 for acrylic lacquer, prefix 85 for acrylic enamel, prefix PB for acrylic urethane in a basecoat/clearcoat system prefix PS for acrylic urethane in a single stage system
Rogers use: prefix 94 for acrylic lacquer, prefix 95 for acrylic enamel, prefix AU for acrylic urethane in a basecoat/clearcoat system prefix AS for acrylic urethane in a single stage system
Martin-Senour: Jobber will interchange number shown when acrylic lacquer is needed.
Use prefix 98 for acrylic urethane as a pre-mix basecoat/clearcoat. Use prefix 88 for acrylic urethane as a factory packaged basecoat/ clearcoat. Use prefix 97 for acrylic urethane as a pre-mix single stage system. Use prefix 87 for acrylic urethane as a factory packaged single stage system.
1990 TRUCK INTERIOR COLORS

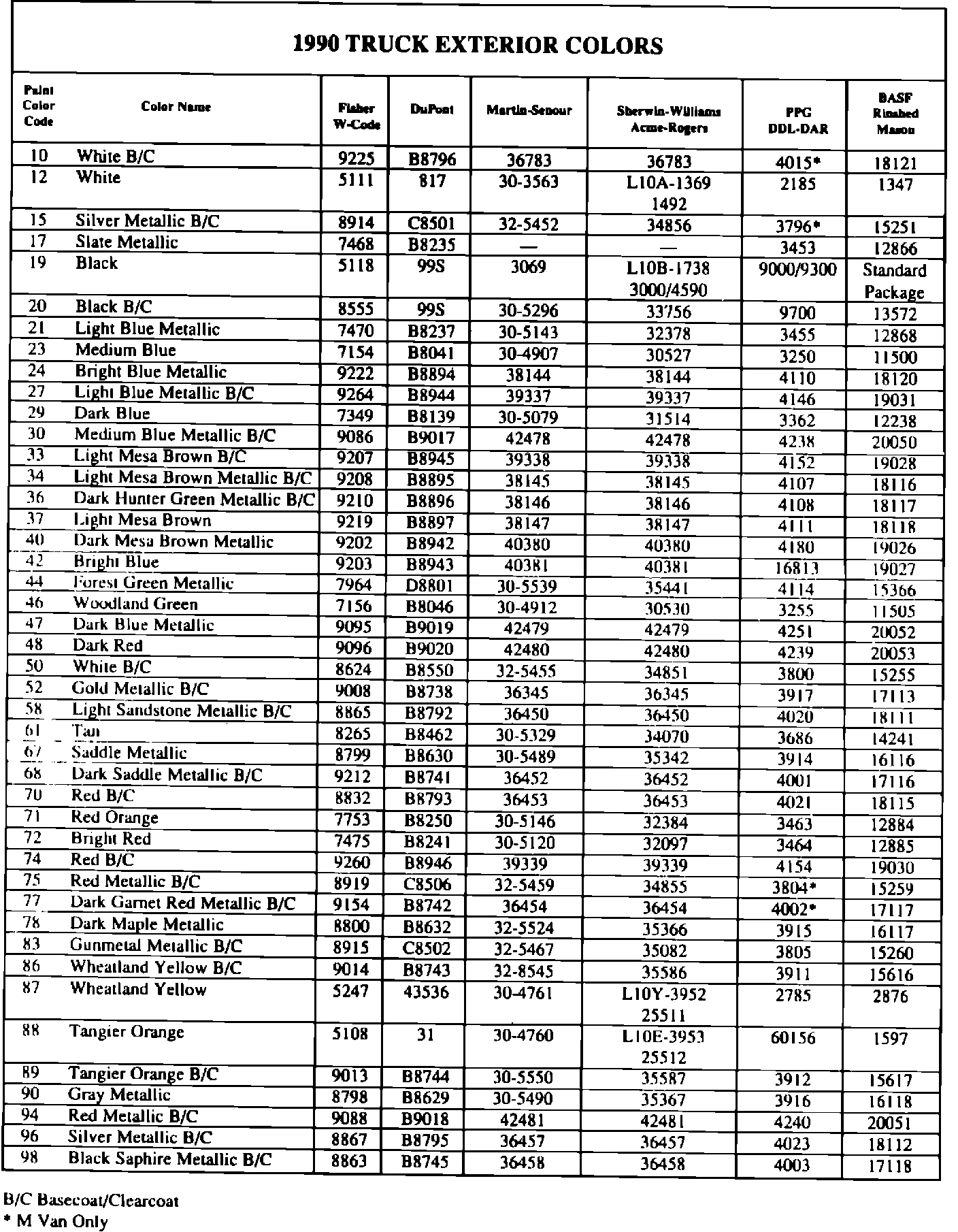

1990 TRUCK EXTERIOR COLORS
