Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Diagrams >> Electrical Diagrams >> Two Door >> With Power Mirrors

With Power Mirrors

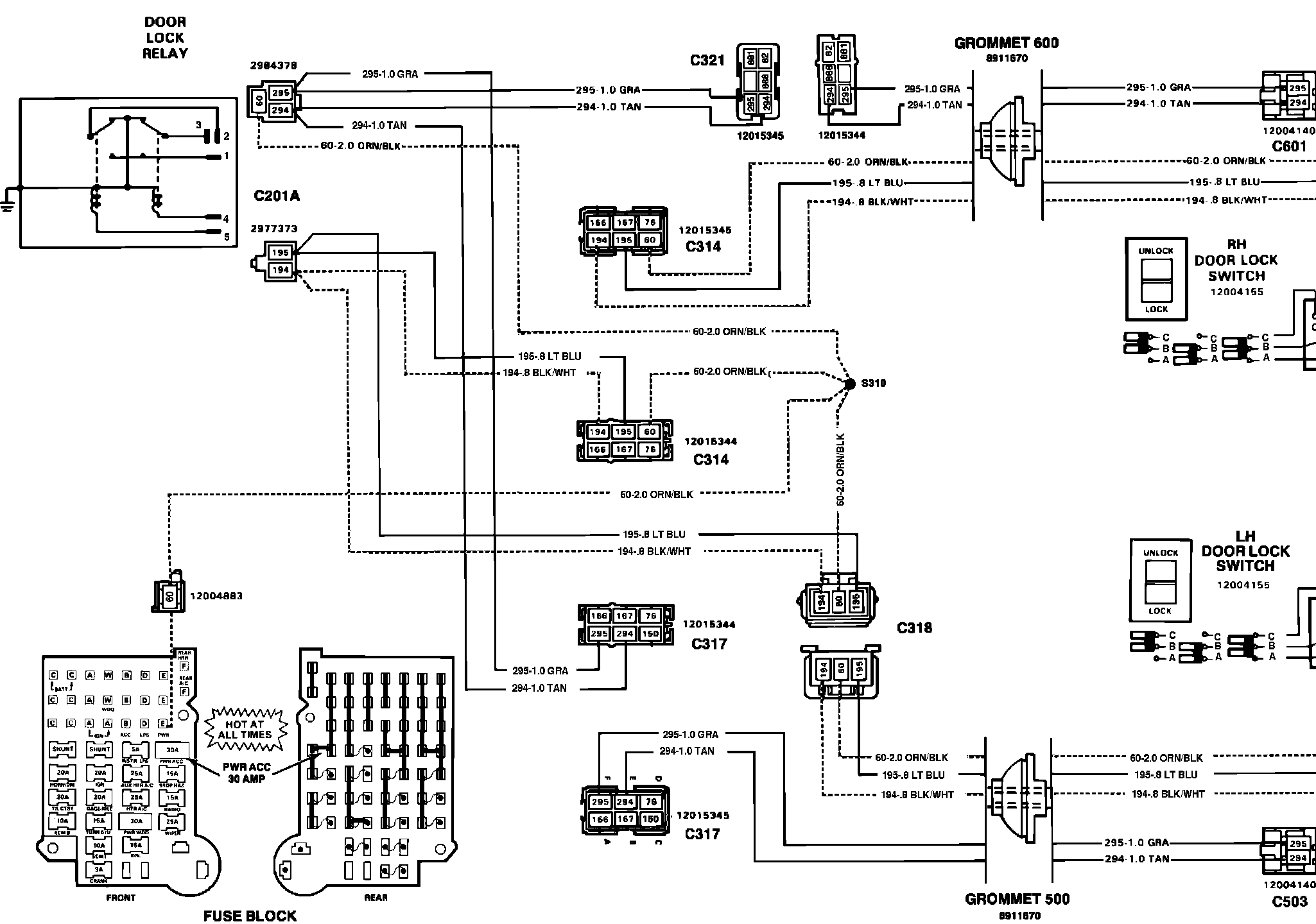

Y��>Power Door Locks with Power Mirrors (2-Door):
