Home
>>
Chevy Truck
>>
1990
>>
Suburban 1/2 Ton 2WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Electrical Diagrams
>>
Four Door
>>
Without Power Mirrors
Without Power Mirrors

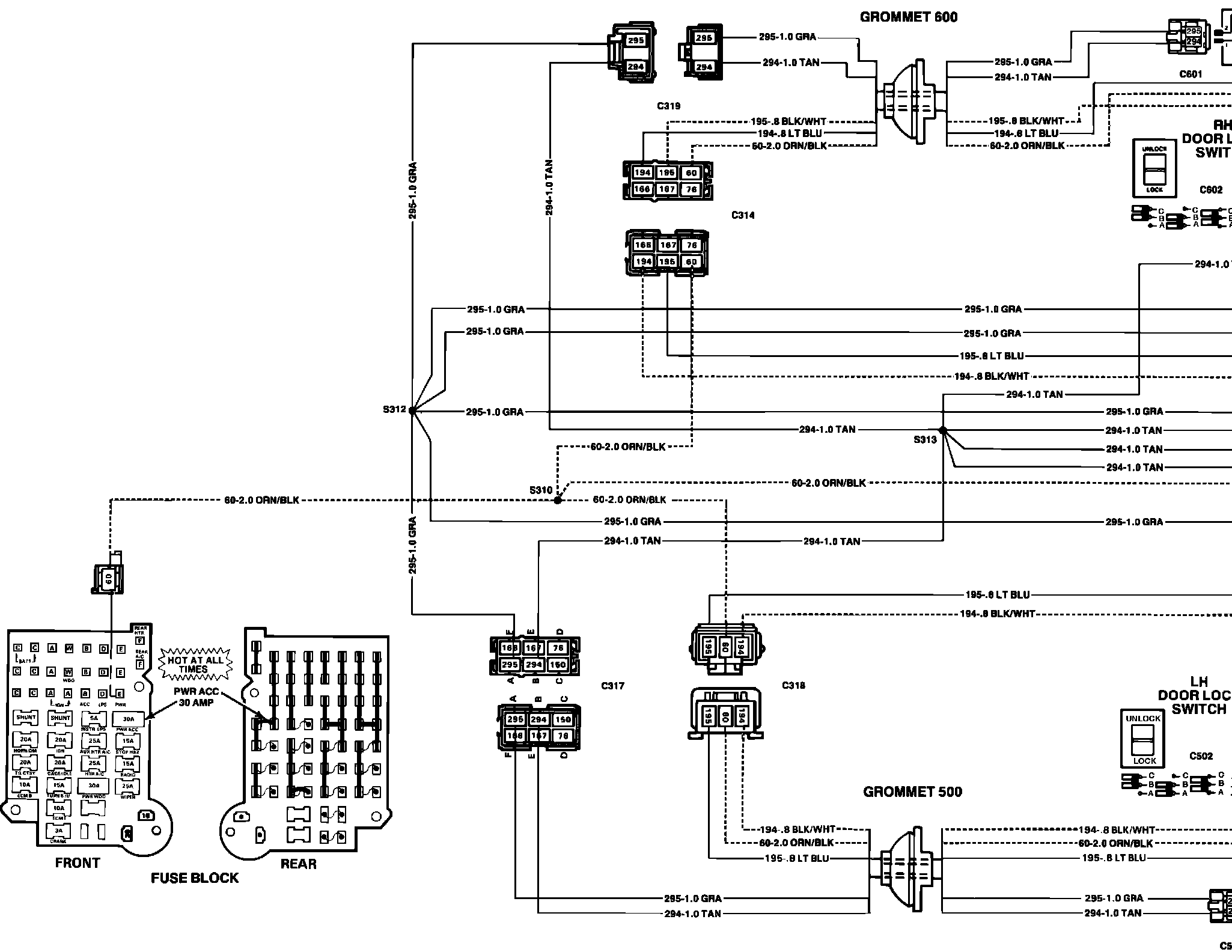

�O�>Power Door Locks with 4-Door less Power Mirrors:
τ>Power Door Locks with 4-Door:
