DTC 15
>>
Antilock Braking System (ABS) - Rear Wheel Antilock Brakes (RWAL)
Antilock Braking System (ABS) - Rear Wheel Antilock Brakes (RWAL)

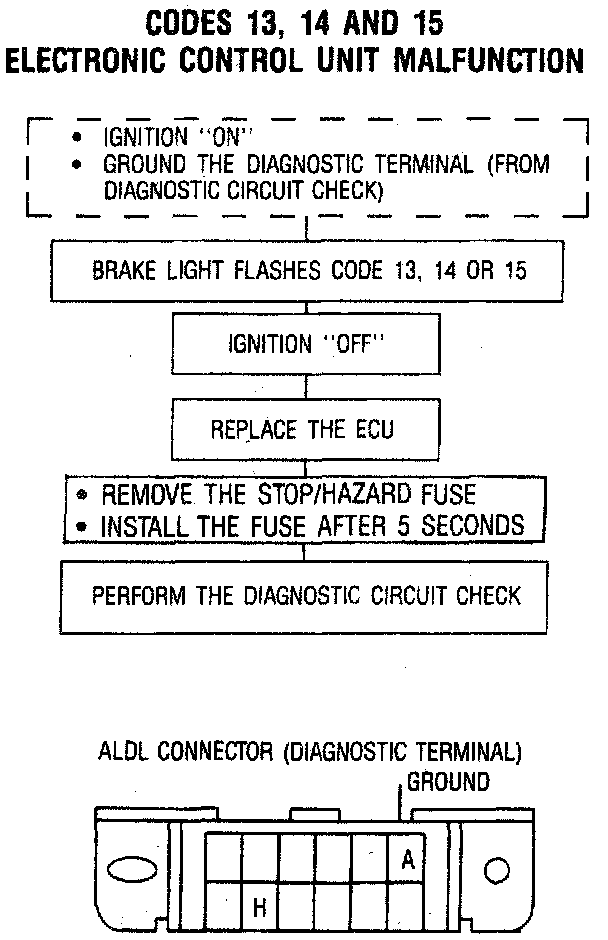

Diagnostic Trouble Codes 13, 14 And 15 Electronic Control Unit Malfunction:
