Home >> Chevy Truck >> 1987 >> Suburban 1/2 Ton 4WD V8-305 5.0L >> Repair and Diagnosis >> Starting and Charging >> Specifications

Starting and Charging: Specifications

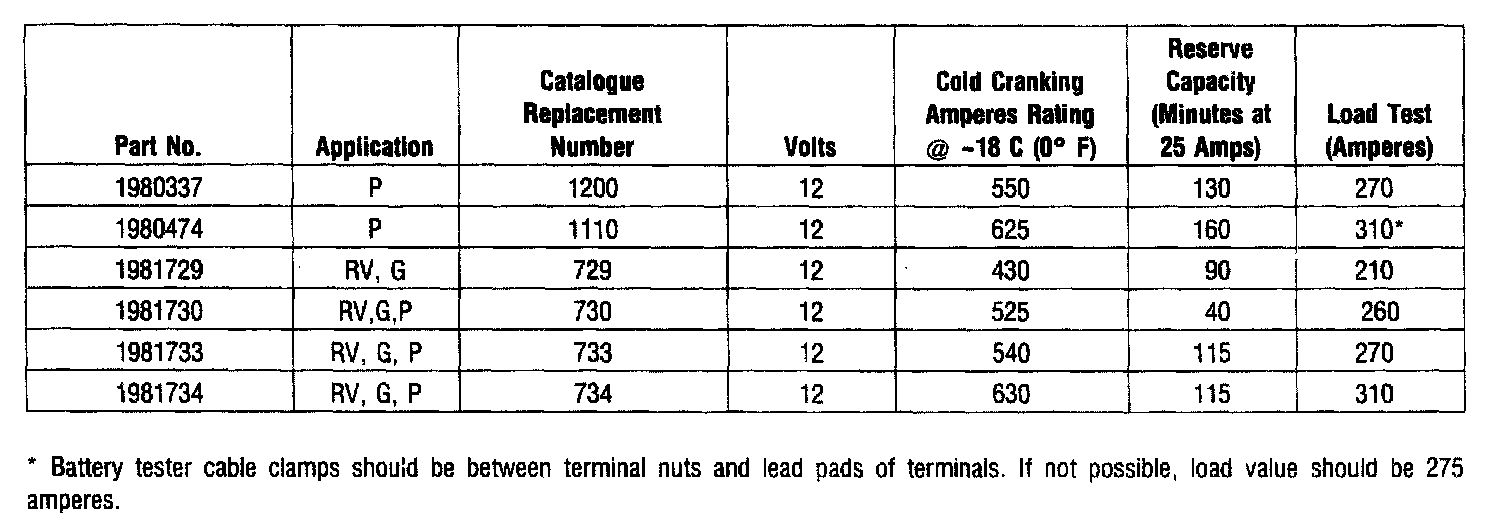

BATTERY SPECIFICATIONS

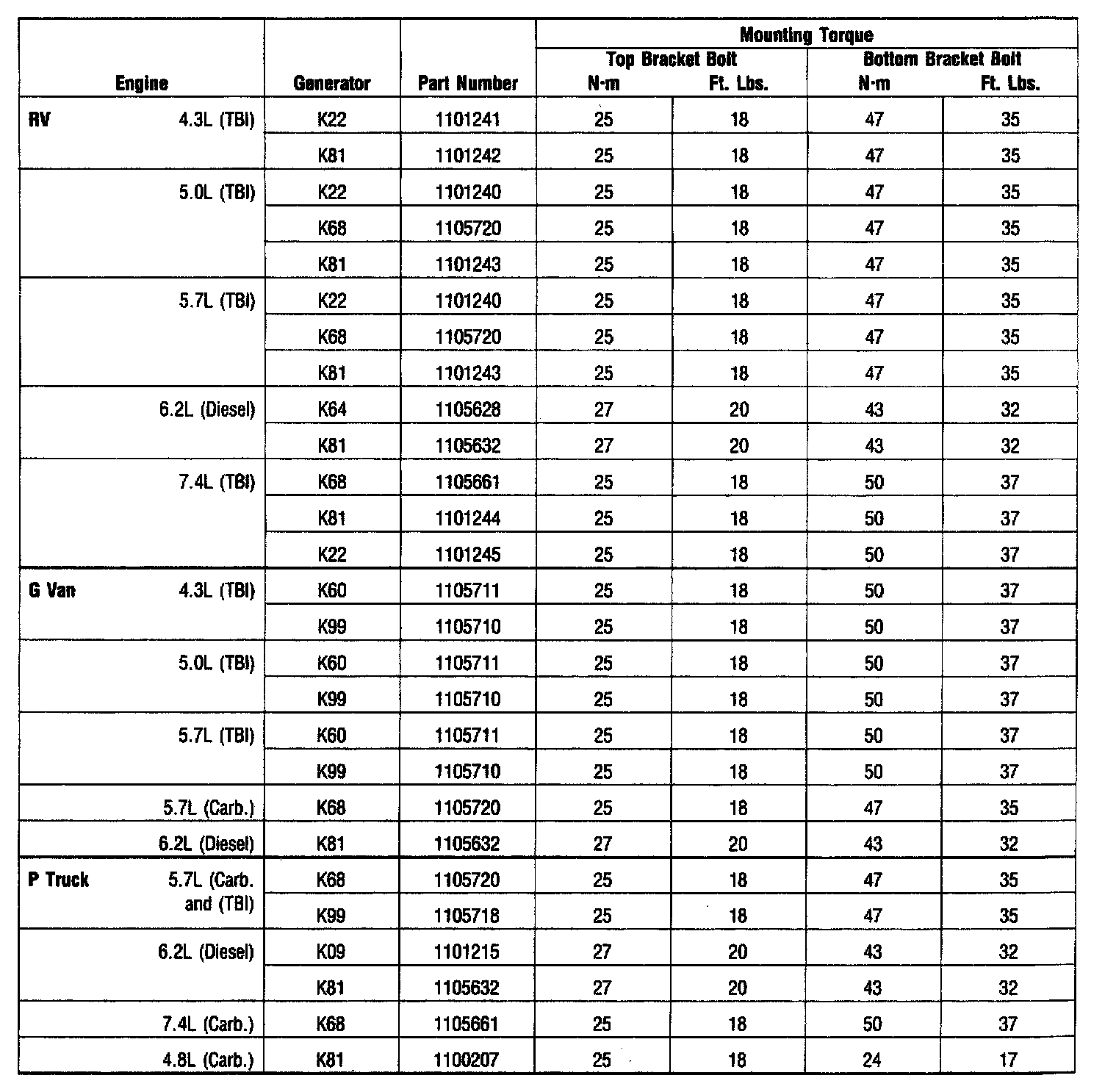

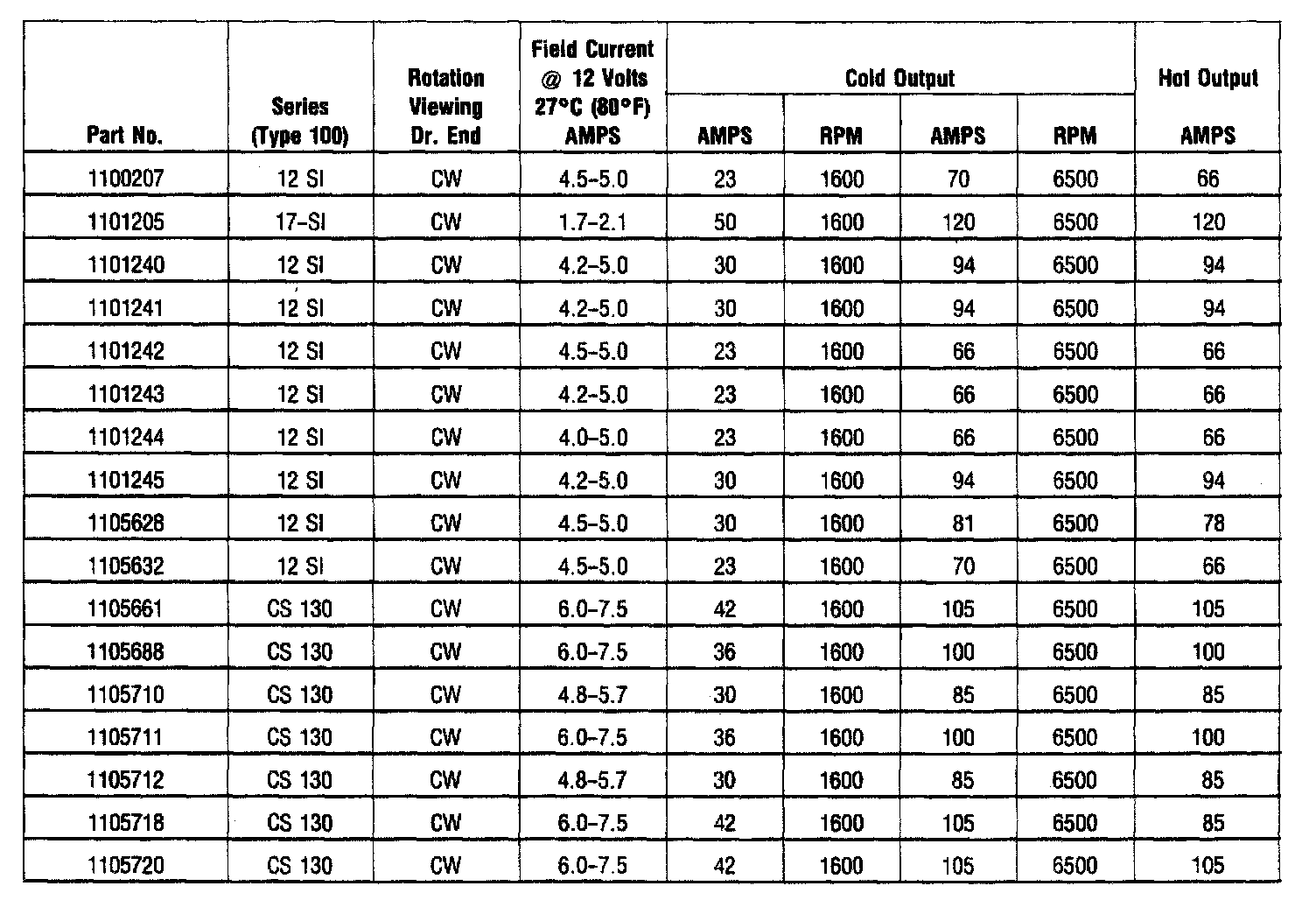

ALTERNATOR SPECIFICATIONS

I Of II:





II Of II:

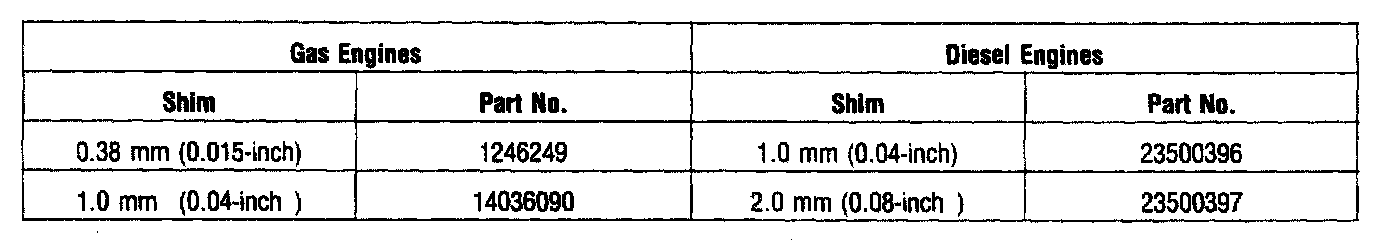

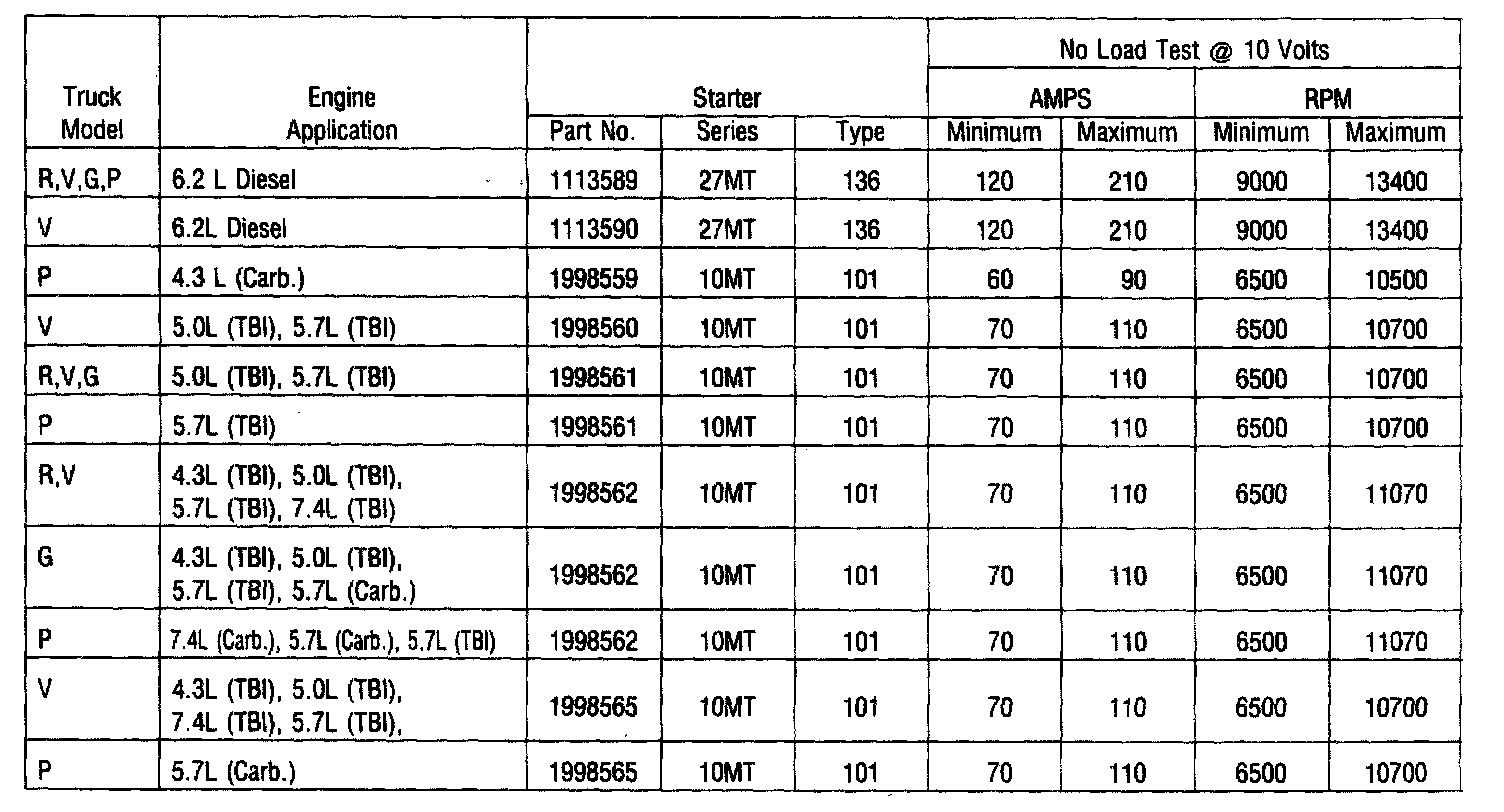

STARTER SPECIFICATIONS

I Of II:





II Of II:

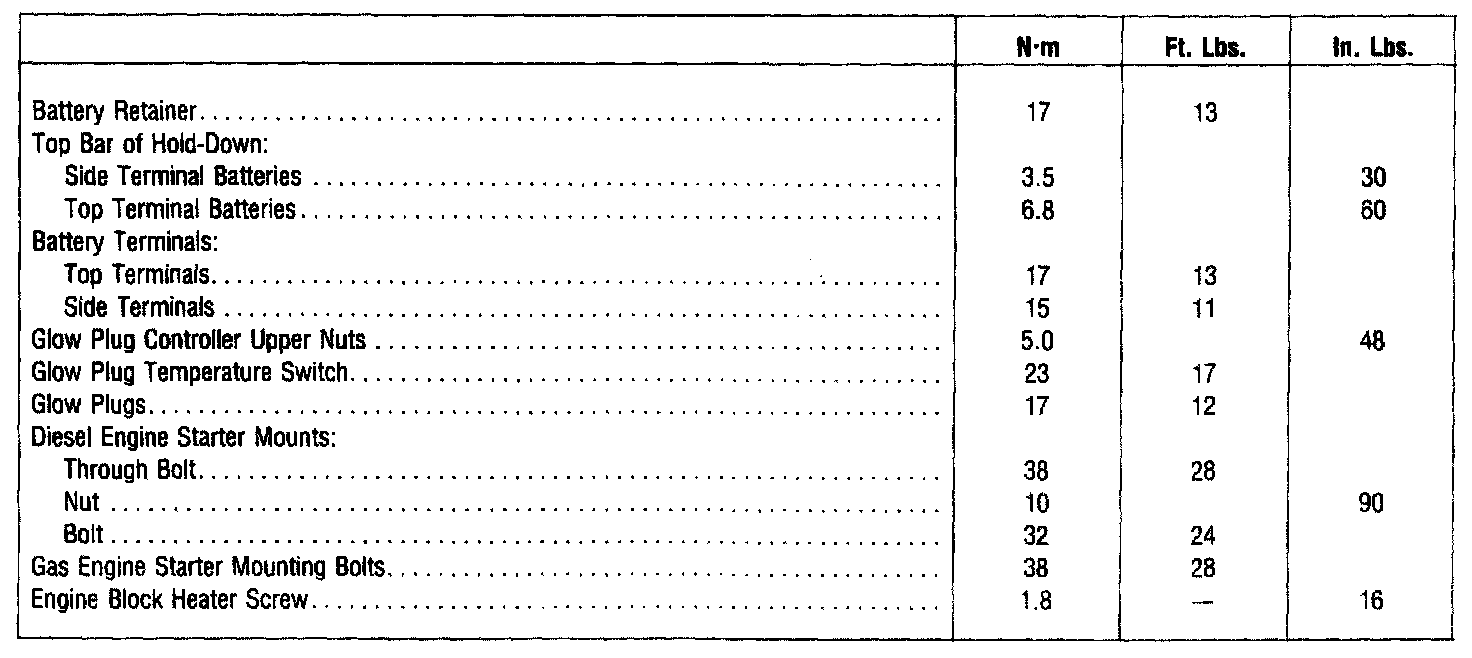

TORQUE SPECIFICATIONS
