400 Automatic Transmission
Band Apply Pin Selection Chart:

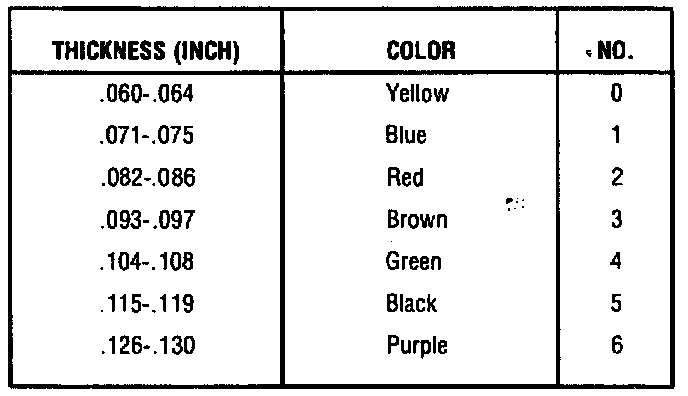

Front Unit Washer Thickness Chart:

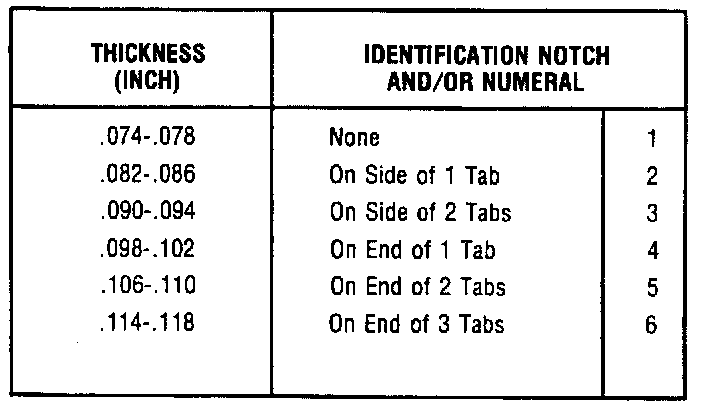

Rear Unit Washer Thickness Chart:
