Home >> Chevy Truck >> 1987 >> Suburban 1/2 Ton 2WD V8-305 5.0L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer)

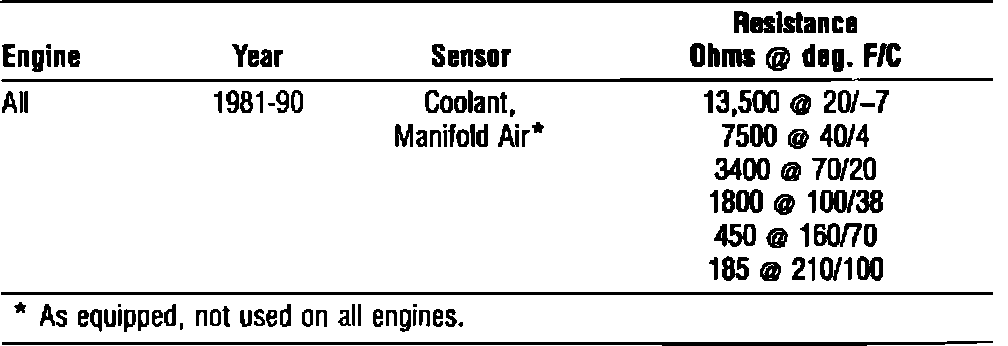

Coolant Temperature Sensor/Switch (For Computer)

TEMPERATURE SENSORS:
