Chevy Truck
>>
1987
>>
Suburban 1/2 Ton 2WD V8-305 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Fuel Delivery and Air Induction
>>
Fuel Pump Relay
>>
Locations
Fuel Pump Relay: Locations
FUEL PUMP RELAY
Fuel Pump Relay:

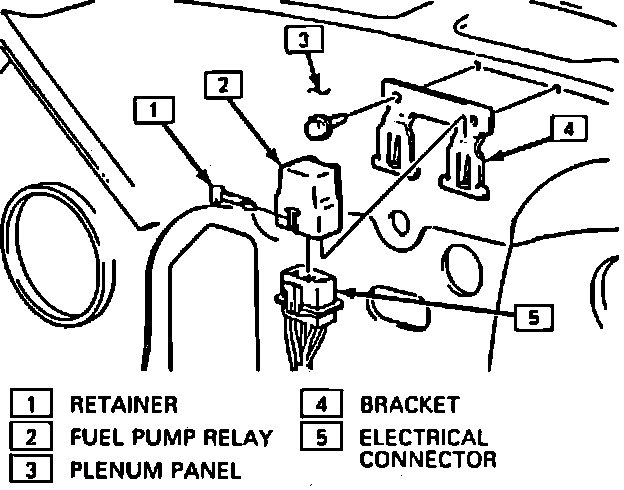

The Fuel Pump Relay is located on the RH side of engine compartment.
