Chevy Truck
>>
1987
>>
Suburban 1/2 Ton 2WD V8-305 5.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Diagrams
>>
Electrical Diagrams
>>
Rear T/S Lamps
>>
Wideside (Dual Wheel)
Wideside (Dual Wheel)

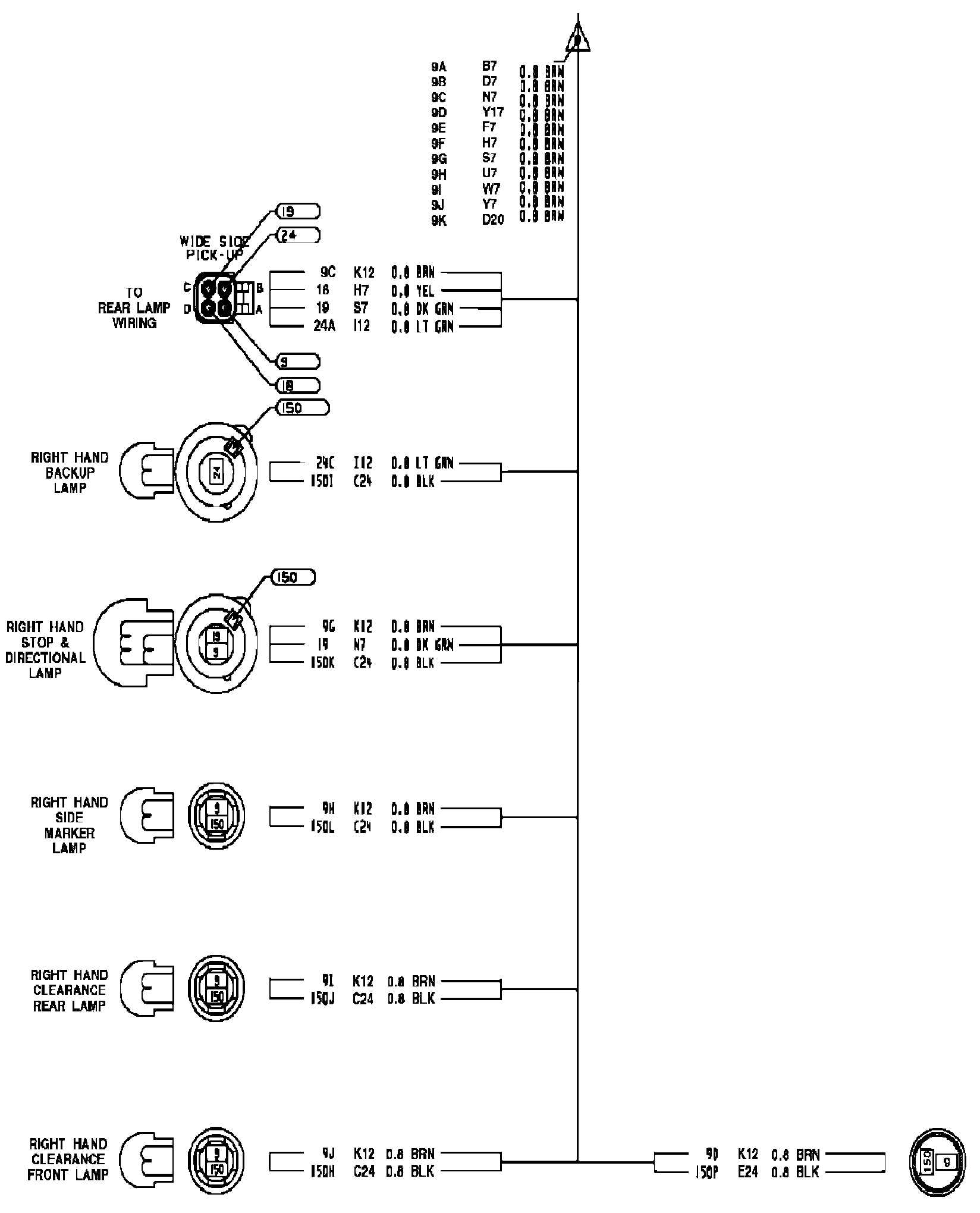

Page 1 Of 2:

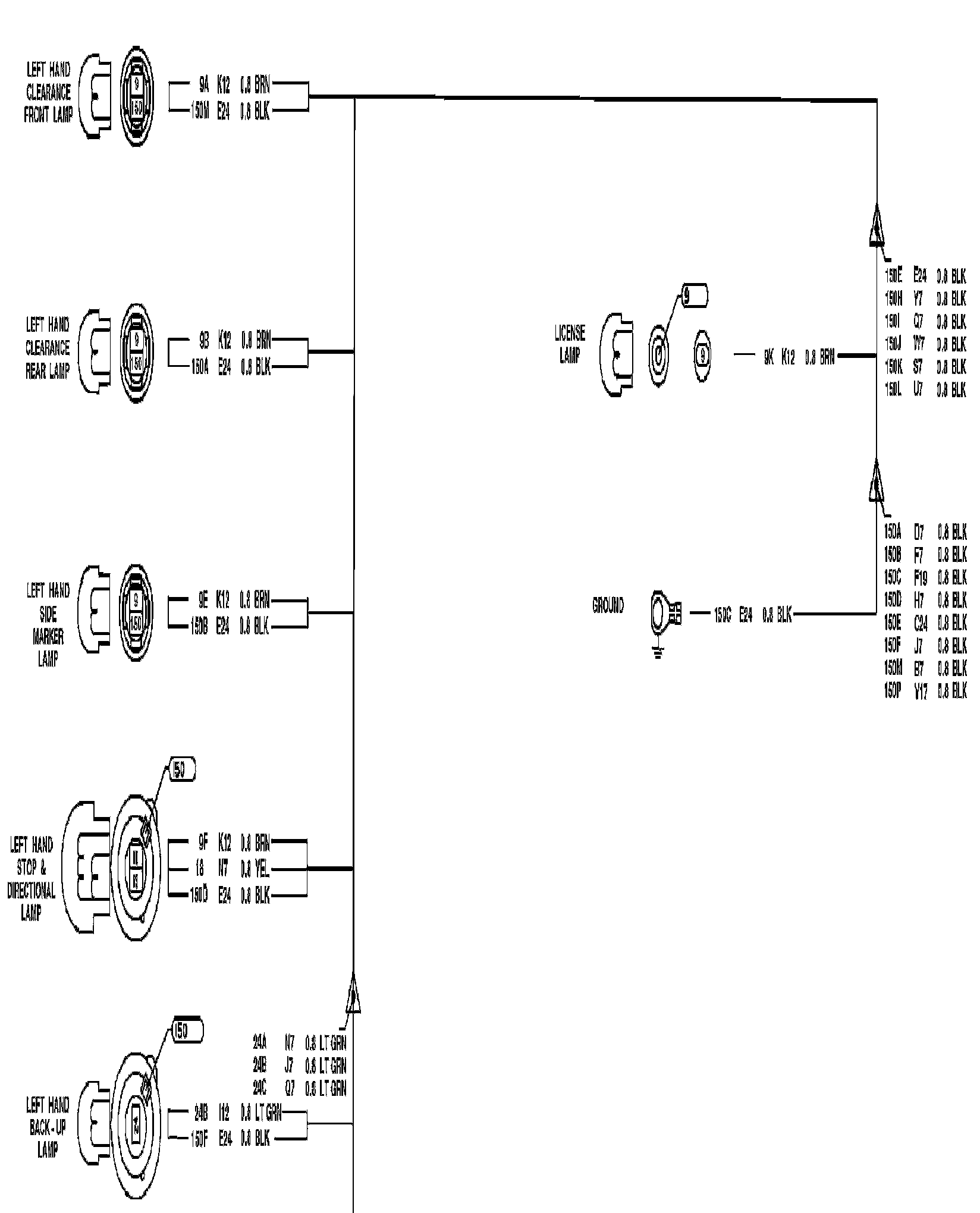

Page 2 Of 2:
