Home >> Chevy Truck >> 1987 >> Suburban 1/2 Ton 2WD V8-305 5.0L >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Diagrams >> Electrical Diagrams >> Front T/S Lamps

Front T/S Lamps

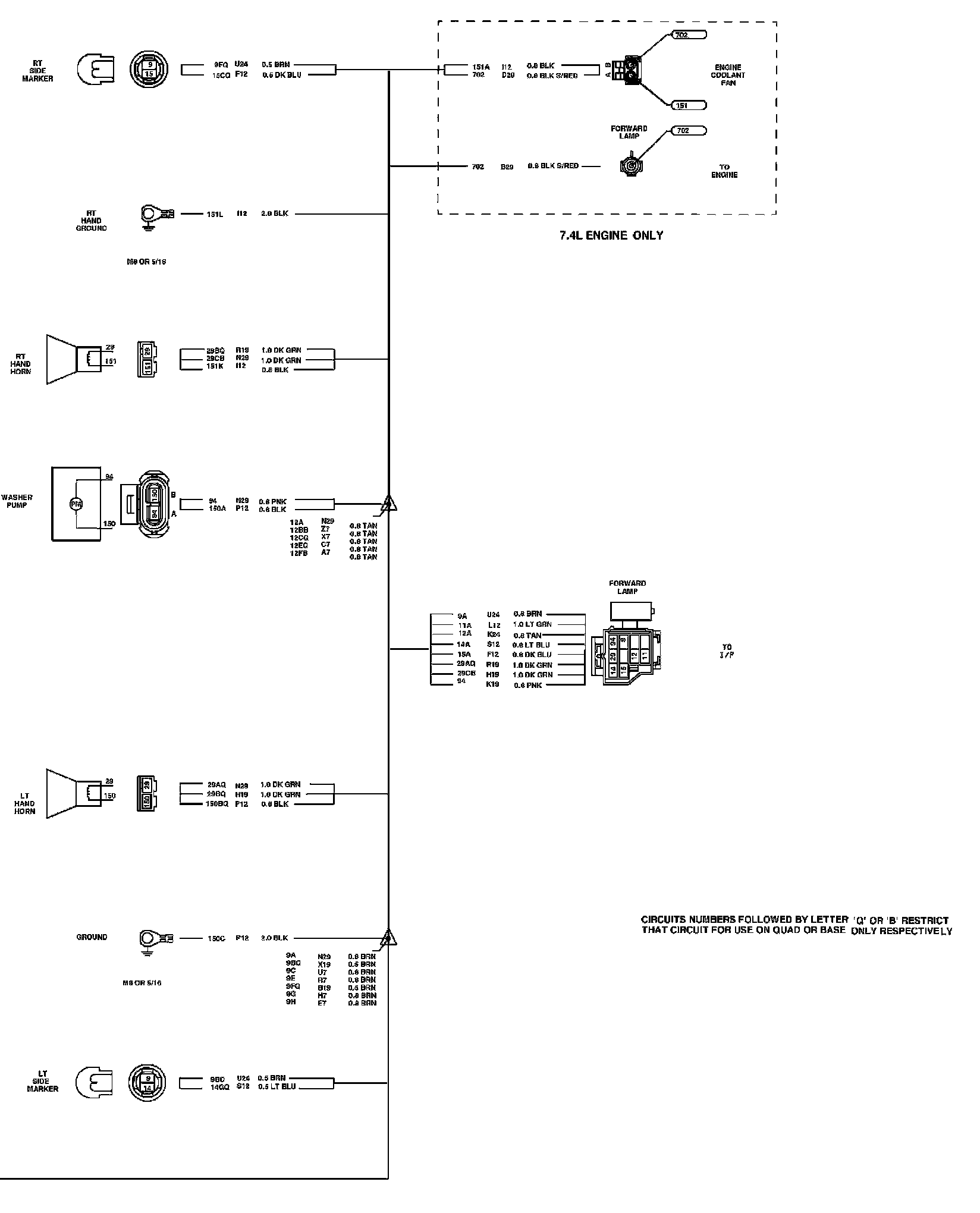

Page 1 Of 2:

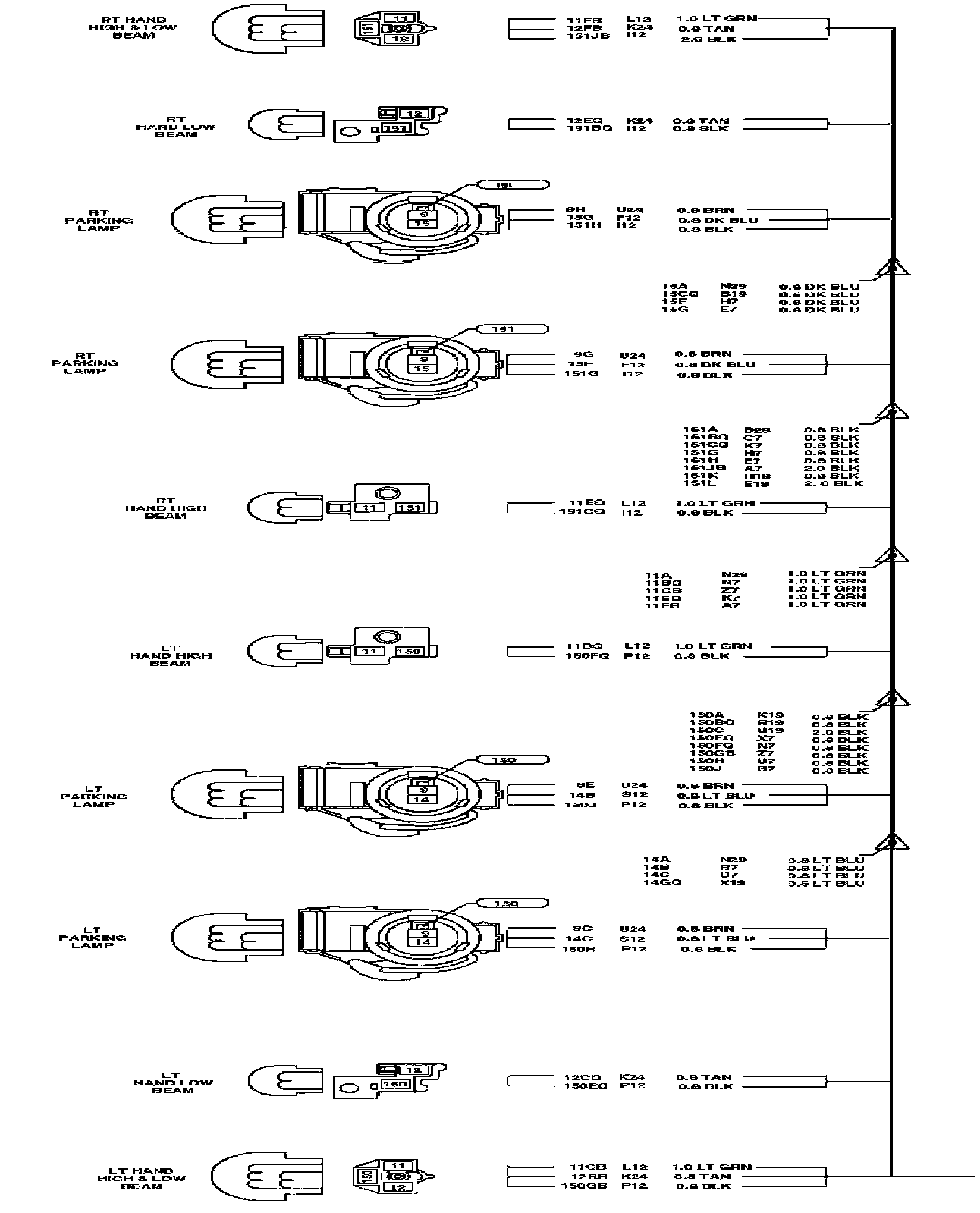

Page 2 Of 2:
