Home >> Chevy Truck >> 1987 >> Suburban 1/2 Ton 2WD V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Rear Lamps >> Fleetside Pickup With Duals

Fleetside Pickup With Duals

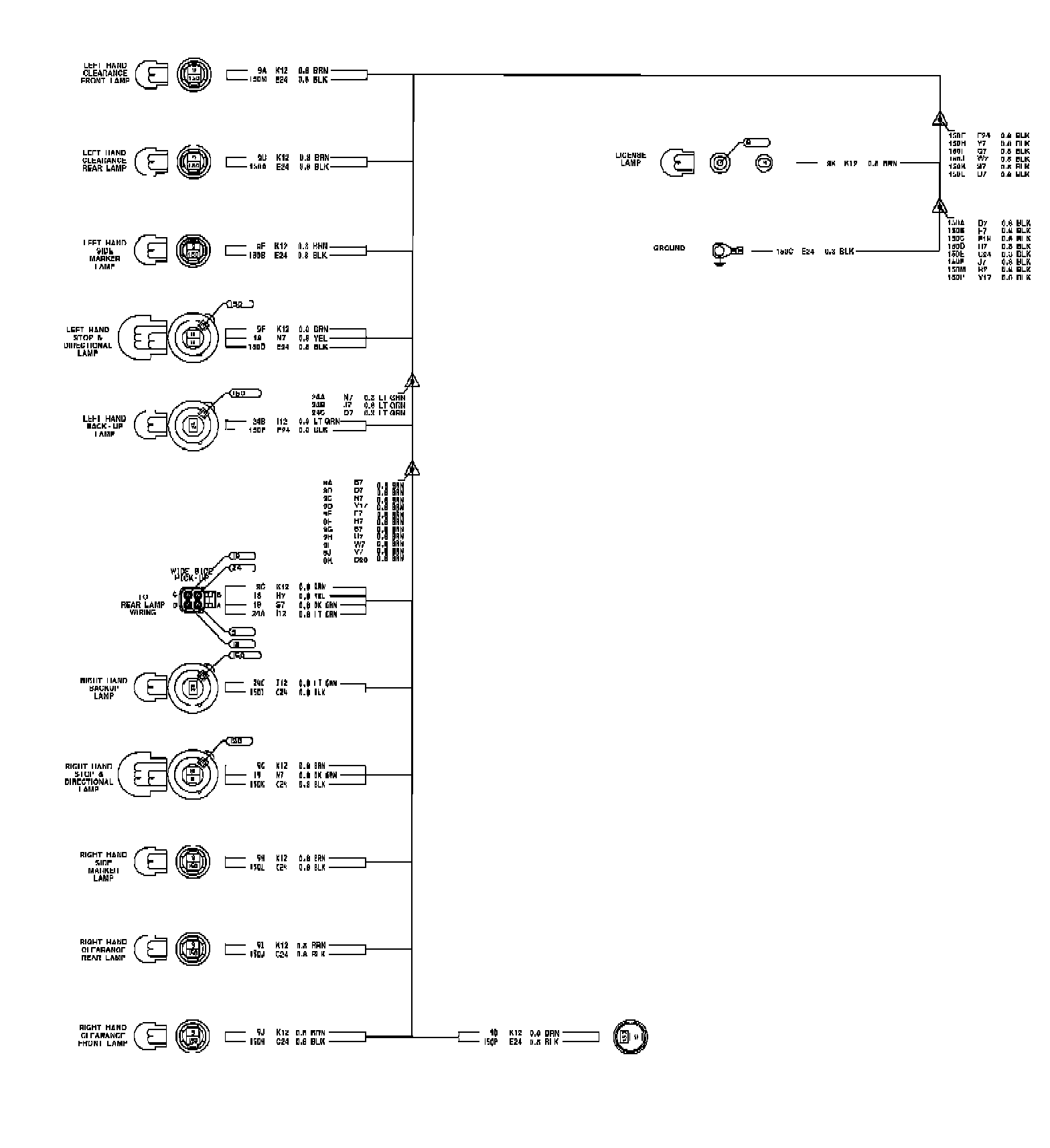

Rear Lamp Wiring Fleetside/Wideside Pick-up - E63 & R05:
