Home >> Chevy Truck >> 1987 >> Suburban 1/2 Ton 2WD V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Brake Lamp >> Brake (Stop) Lamp Switch >> Part 2 of 2

Part 2 of 2

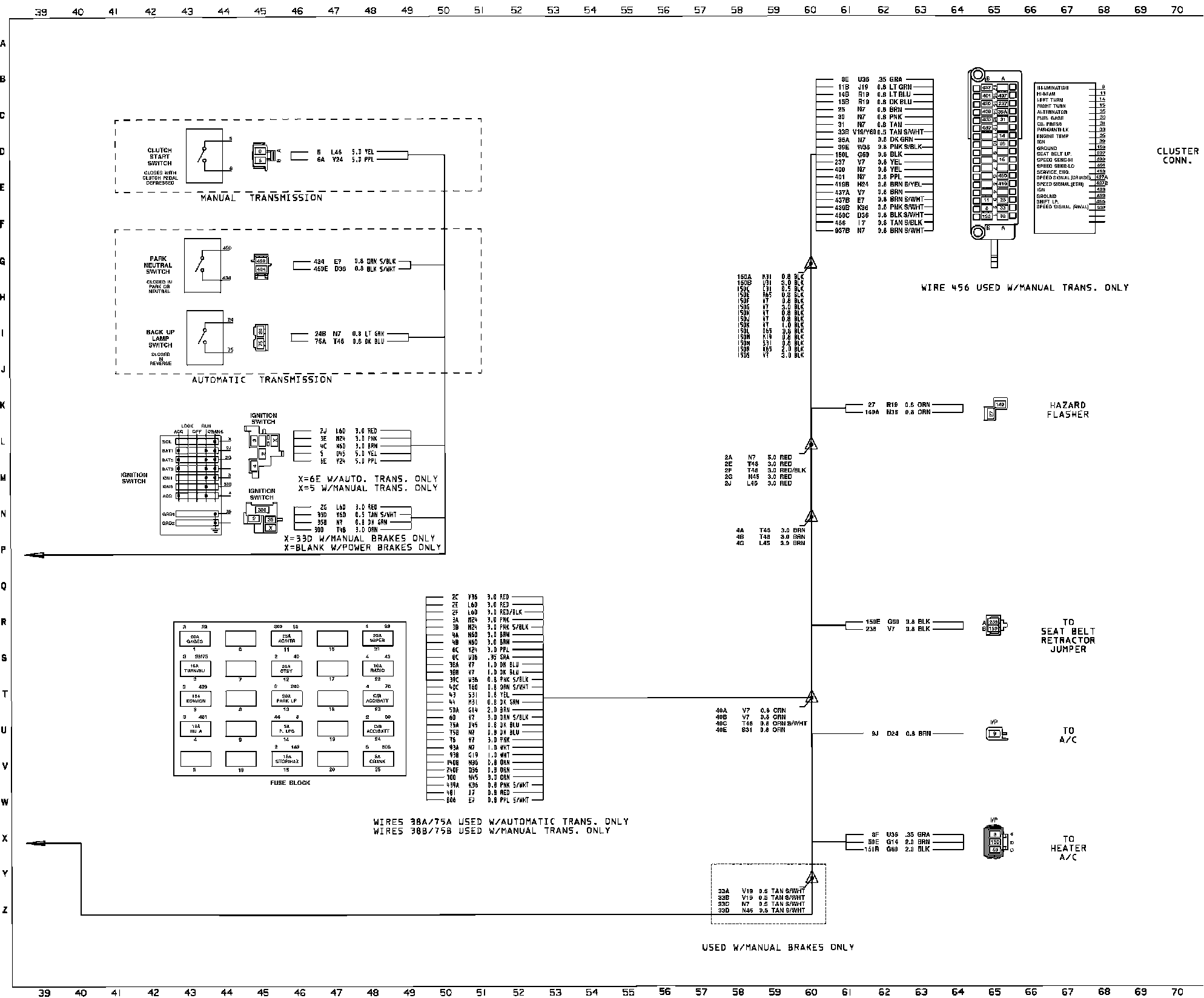

=��BGasoline Instrument Panel Harness (LB4/LO3/LO5/L19):
