Home
>>
Chevy Truck
>>
1987
>>
Suburban 1/2 Ton 2WD V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Under Hood Components
Under Hood Components

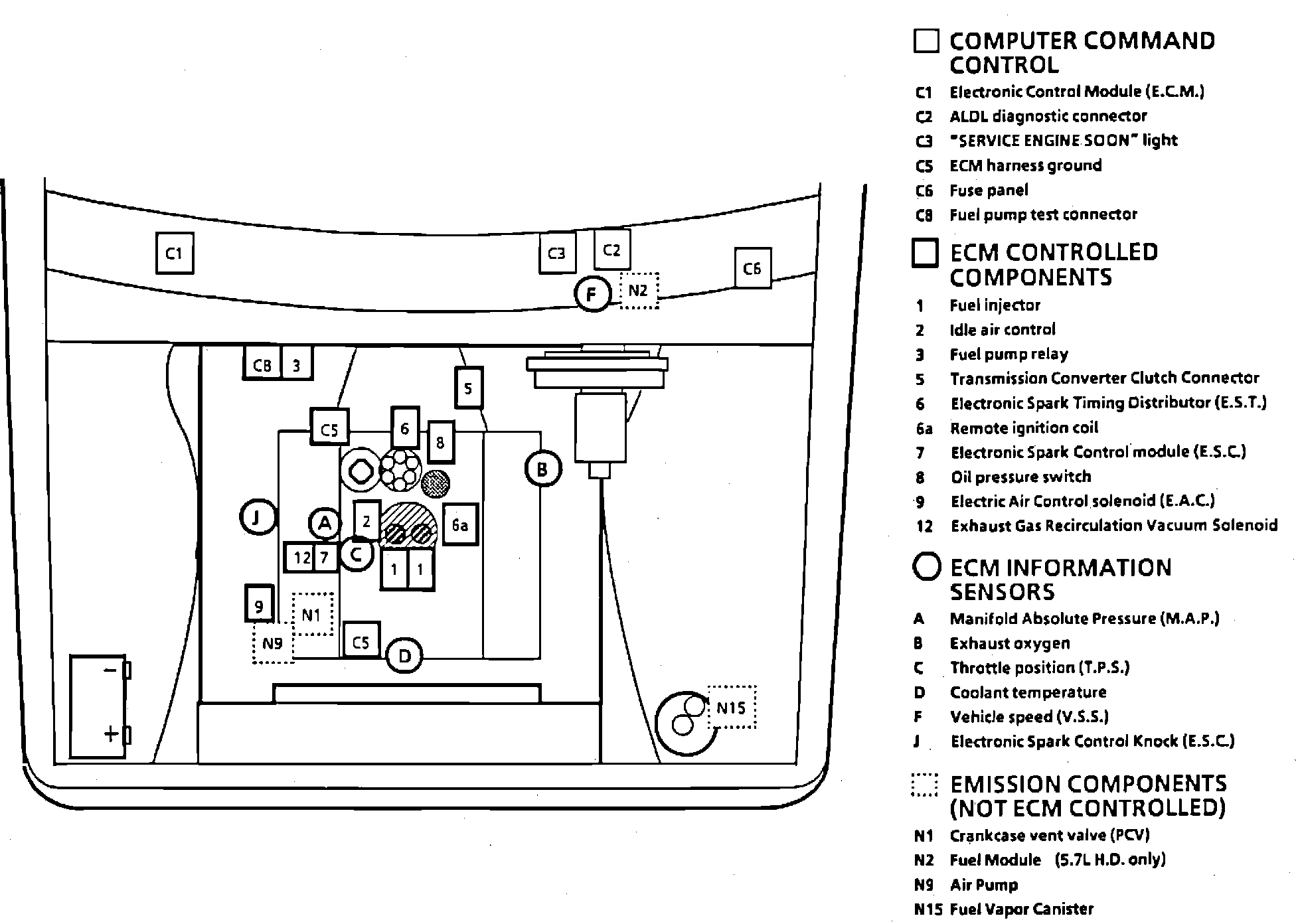

Under hood components, V8-305/5.:
No Location Found
Applicable to: 0L & V8-350/5.7L, R & V series. 1987
