Home >> Chevy Truck >> 1986 >> Suburban 1/2 Ton 4WD V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Four Wheel Drive Indicator >> With Manual Trans.

With Manual Trans.

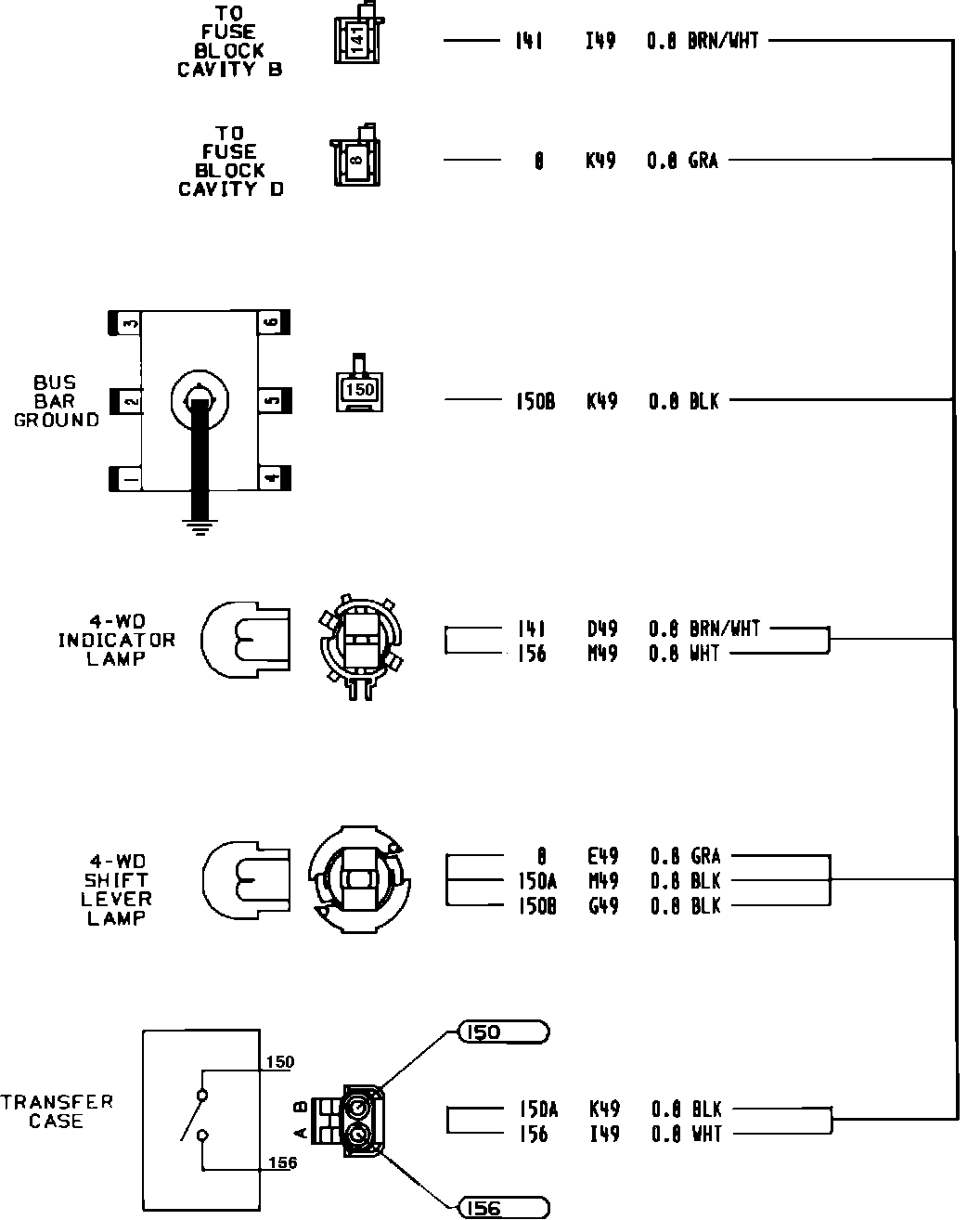

Four Wheel Drive Indicator Lamp Wiring Circuit:
