Home >> Chevy Truck >> 1986 >> Suburban 1/2 Ton 2WD V8-305 5.0L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Power Window Wiring Circuit Less Power Door Locks >> 4 Door

4 Door

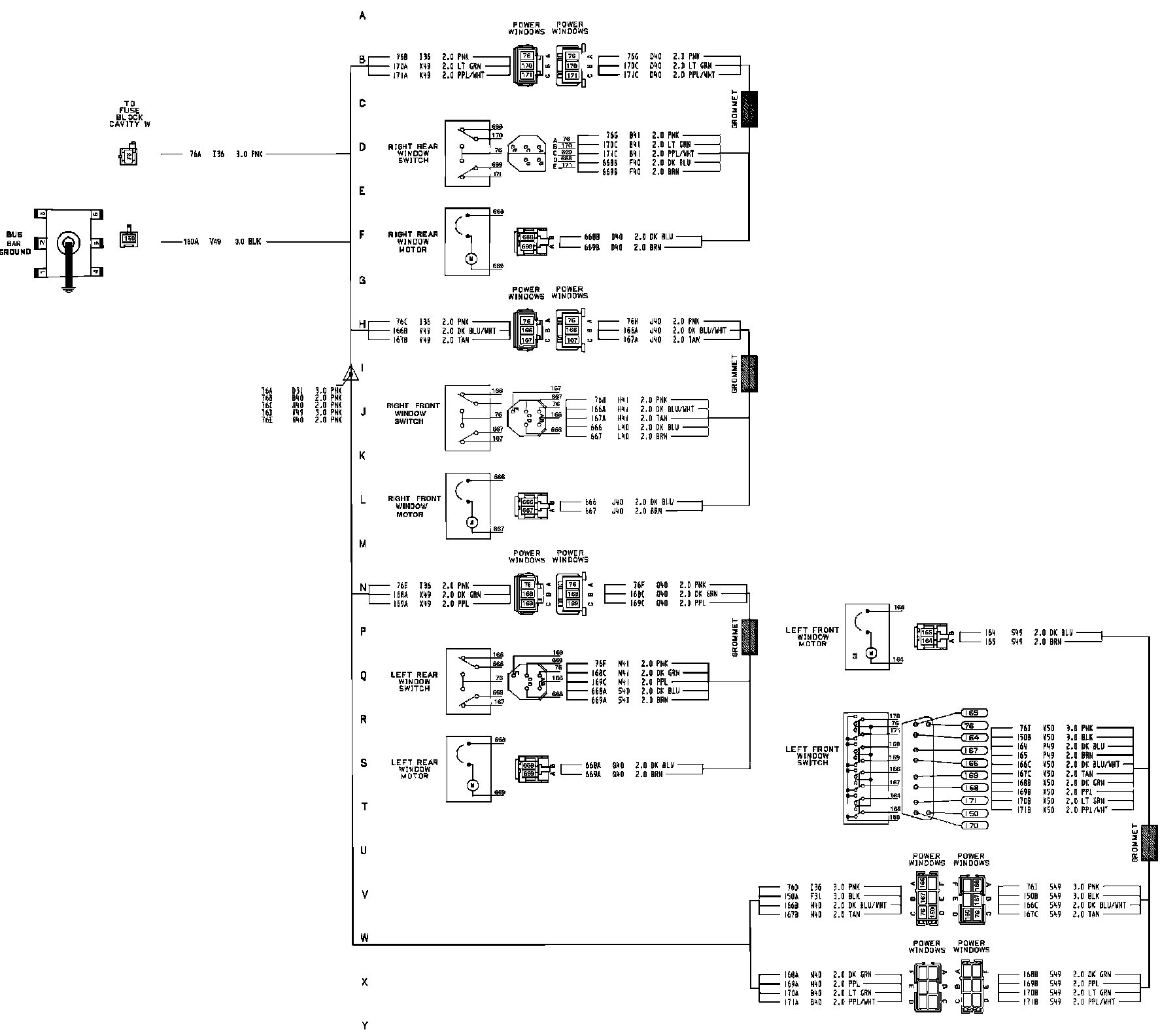

Power Window Wiring Circuit (4 Door) Less Power Door Locks:
