Home >> Chevy Truck >> 1986 >> Suburban 1/2 Ton 2WD V8-305 5.0L >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Diagrams >> Electrical Diagrams >> Turn Signal Switch >> Without Gauges

Without Gauges

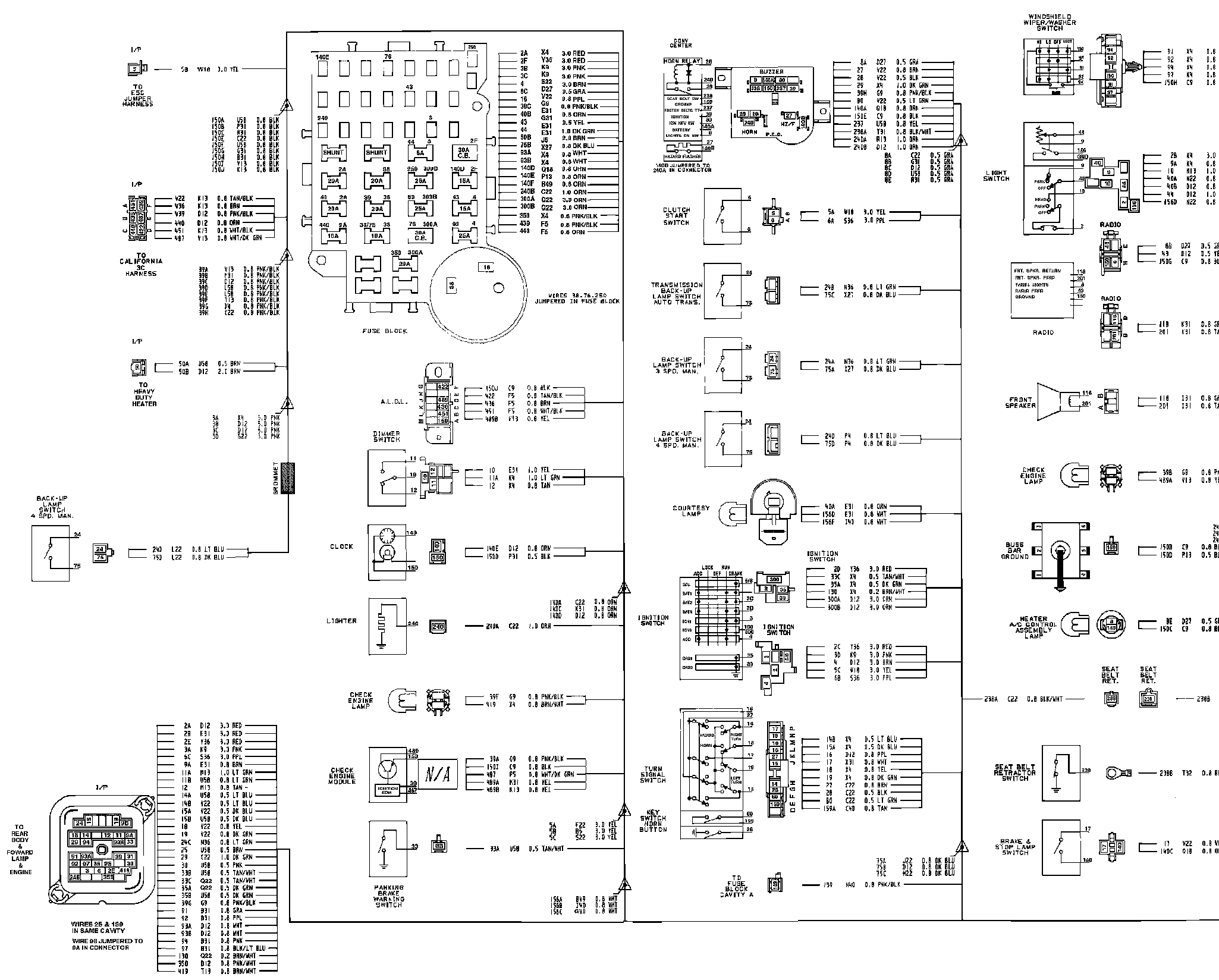

}� BFuse Block and Instrument Panel W/O Gauges:
