Home >> Chevy Truck >> 1986 >> Suburban 1/2 Ton 2WD V8-305 5.0L >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Diagrams >> Electrical Diagrams >> Turn Signal Switch >> With Gauges

With Gauges

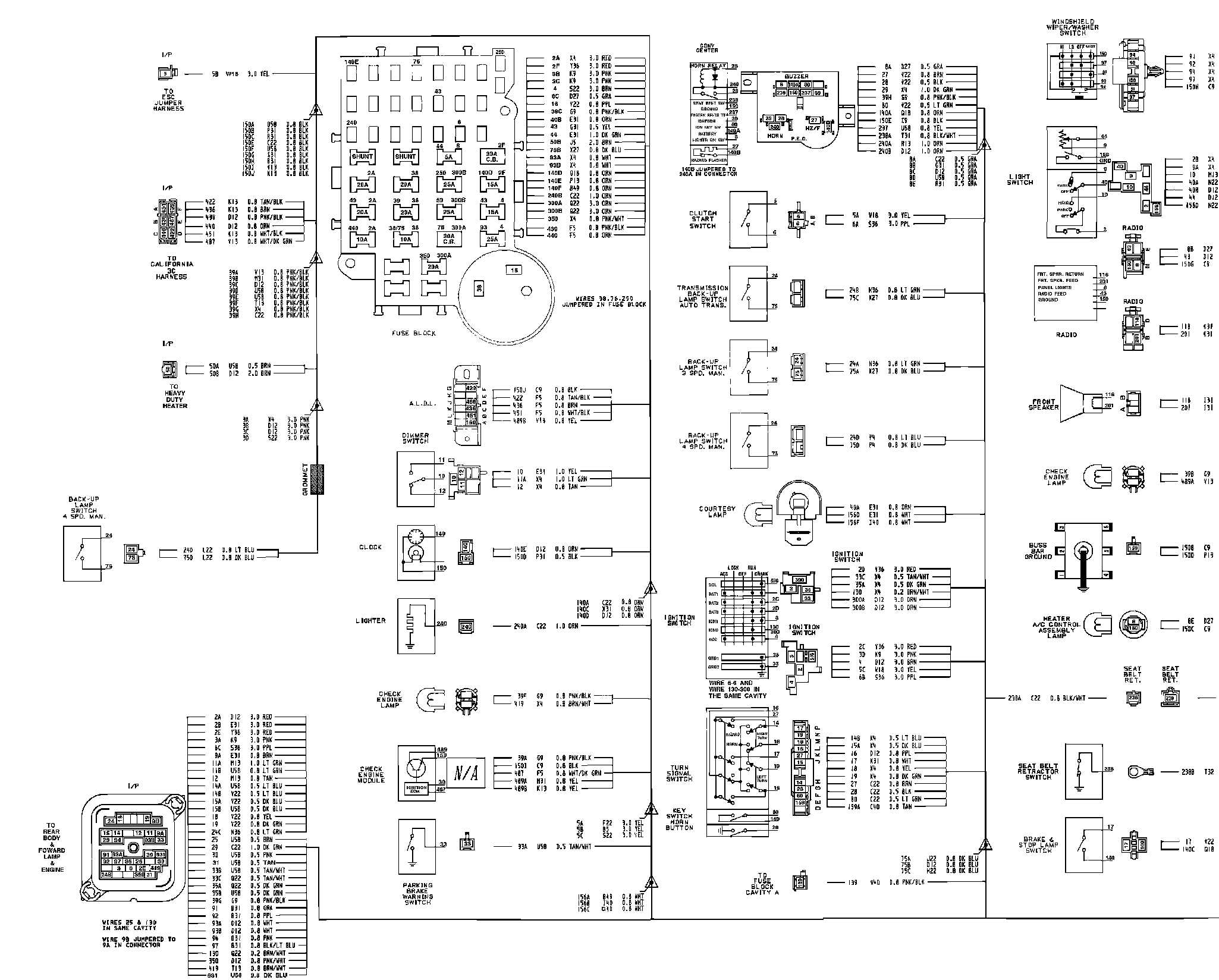

�̳3Fuse Block and Instrument Panel W/Gauges:
