Removal

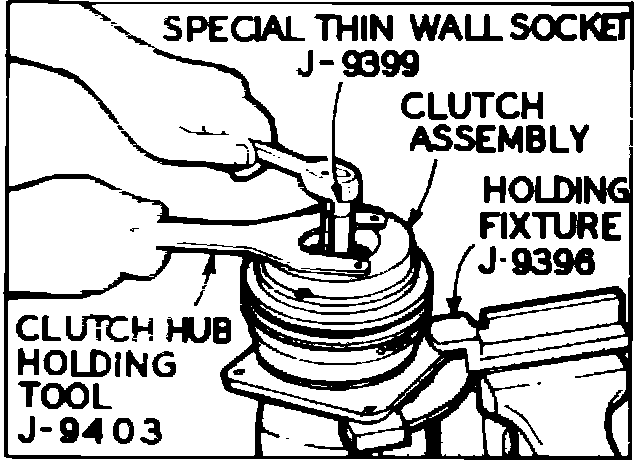

Fig. 14 Removing lock nut:

1. Remove locknut from shaft, Fig. 14.

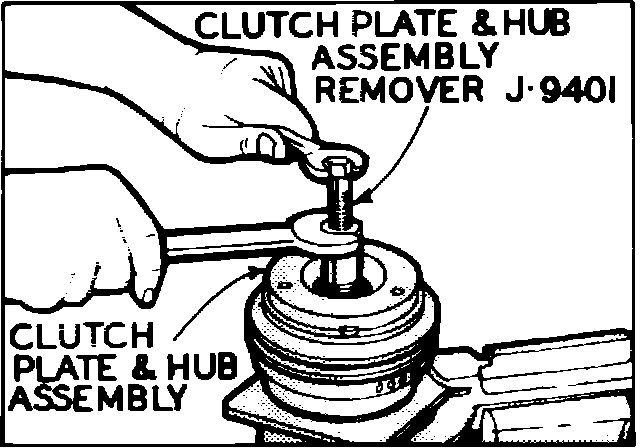

Fig. 15 Removing clutch plate & hub:

2. Remove clutch plate and hub, Fig. 15, then the drive key from shaft.

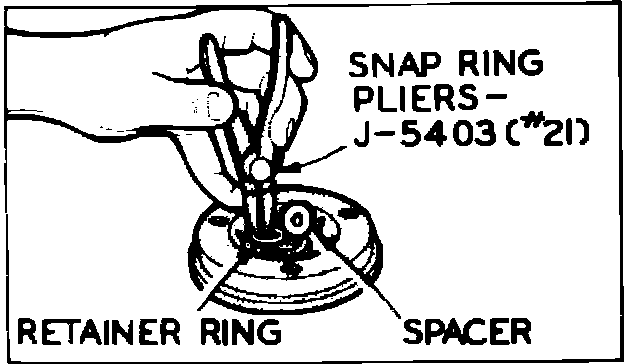

Fig. 16 Removing hub retaining ring & spacer:

3. Remove hub retainer ring and spacer, Fig. 16.
