Home
>>
Chevy Truck
>>
1986
>>
Suburban 1/2 Ton 2WD V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Computer Control Harness
Computer Control Harness

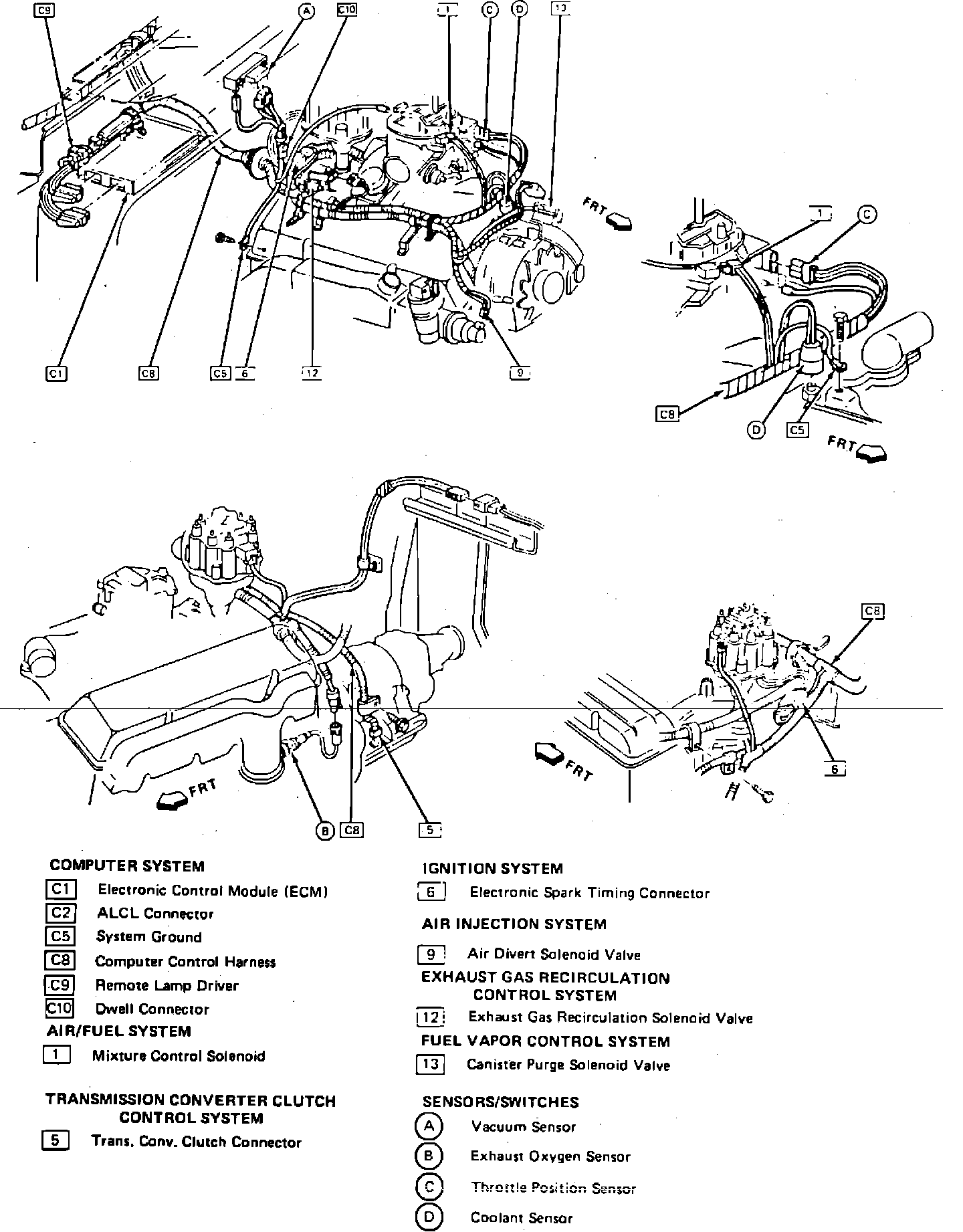

Top & rear of V8 engine:
Top & Rear Of Engine
Applicable to: 1986 C & K series
