System Diagnosis

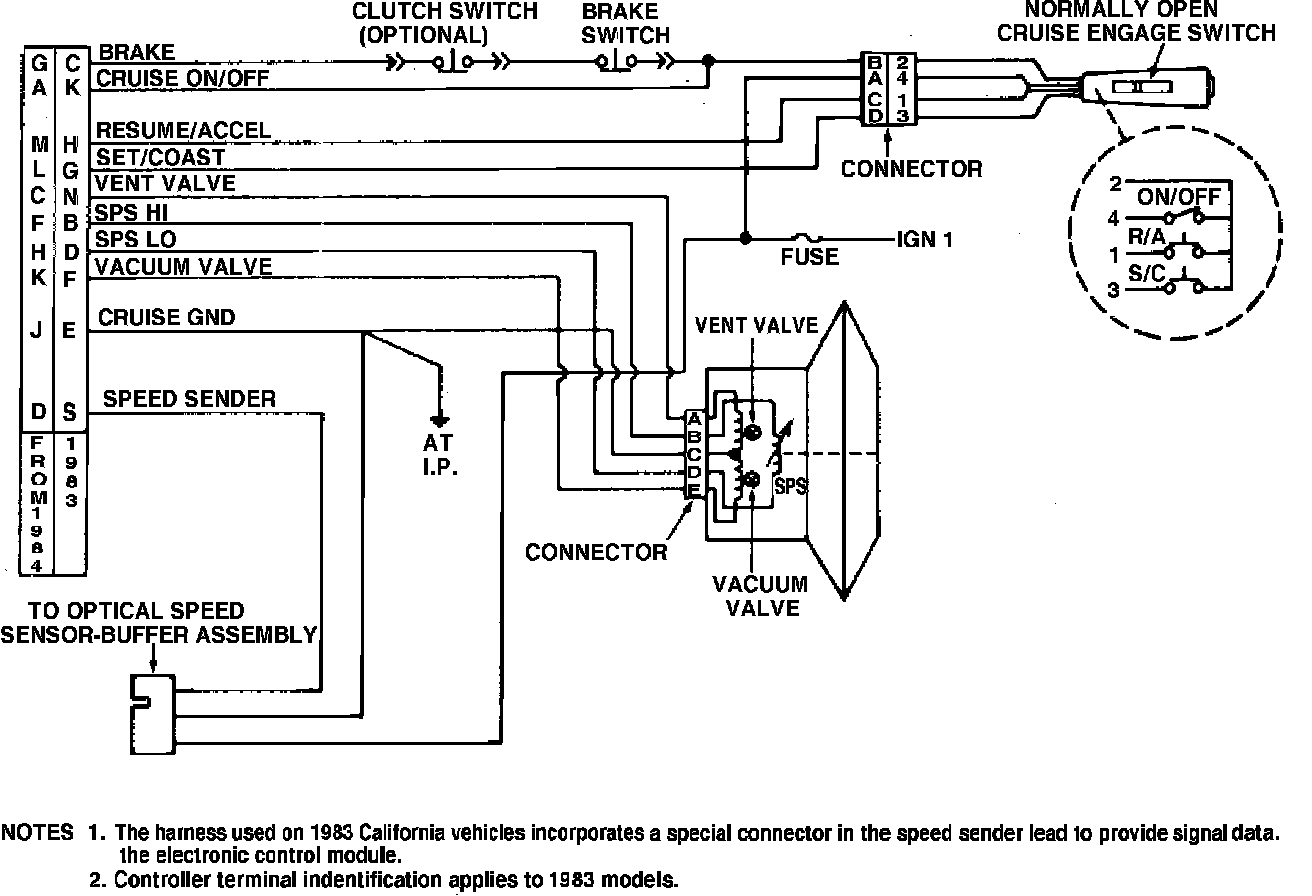

Fig. 11 Cruise system wiring diagram. 1983---84 Custom Cruise III:
Fig. 12 Cruise system wiring diagram. 1985---87 Custom Cruise III (typical):
Refer to Figs. 11 and 12 during component testing procedures.
Refer to Figs. 11 and 12 during component testing procedures.
