Home >> Chevy Truck >> 1985 >> Suburban 1/2 Ton 2WD V8-305 5.0L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Power Window Wiring Circuit Less Power Door Locks >> 4 Door

4 Door

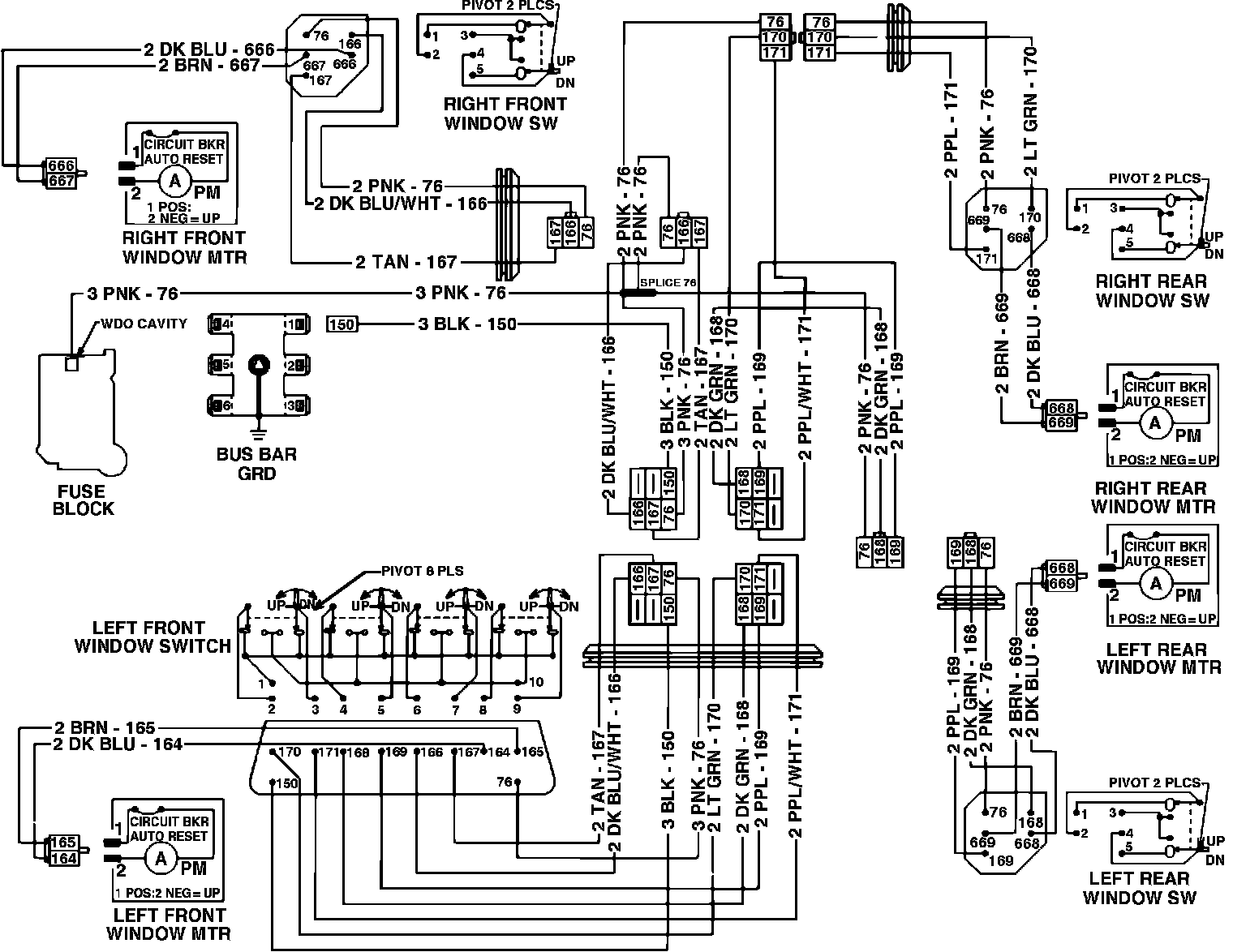

Power Window Wiring Circuit. 4 Door:
