A/T - TV Cable Identification (700-R4 Light Duty)

85-100
7A
July, 1985
Subject: TV CABLE IDENTIFICATION
Model and Year: 1982-85 LIGHT DUTY WITH 700-R4 AUTOMATIC TRANSMISSIONS
TO: ALL CHEVROLET DEALERS

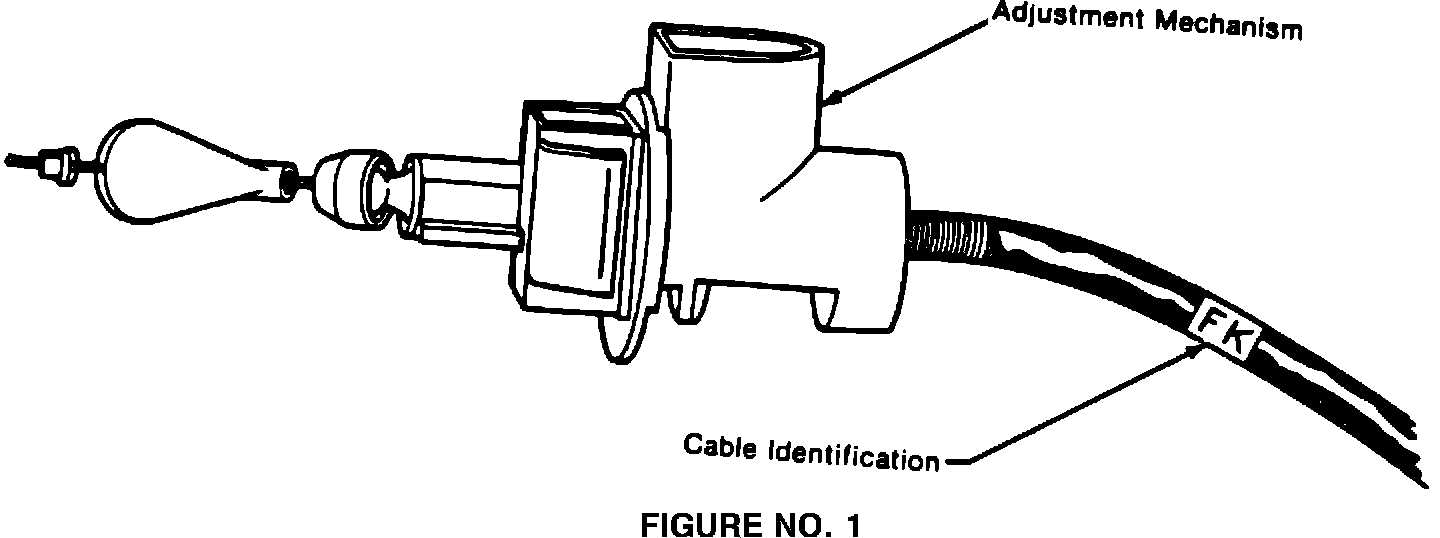

FIGURE NO. 1:

On-vehicle identification of the TV cable may be accomplished by locating the two-letter code imprinted on tape approximately 1 1/2" behind the adjusting mechanism (See Figure No. 1). TV cable application is determined by the engine used in the vehicle.
The following is a list of TV cable codes, part numbers, and applications used in trucks equipped with the 700-R4 automatic transmission.


Engine Cable Code Part Number

2.0L AX 25513305
2.5L FT 25517312
2.8L NC 14040597
4.1L FL 25515600
4.3L ON 25522513
5.0L-5.7L FJ 25515598
6.2L FK 25515599
