System Specifications

Engine Specifications:

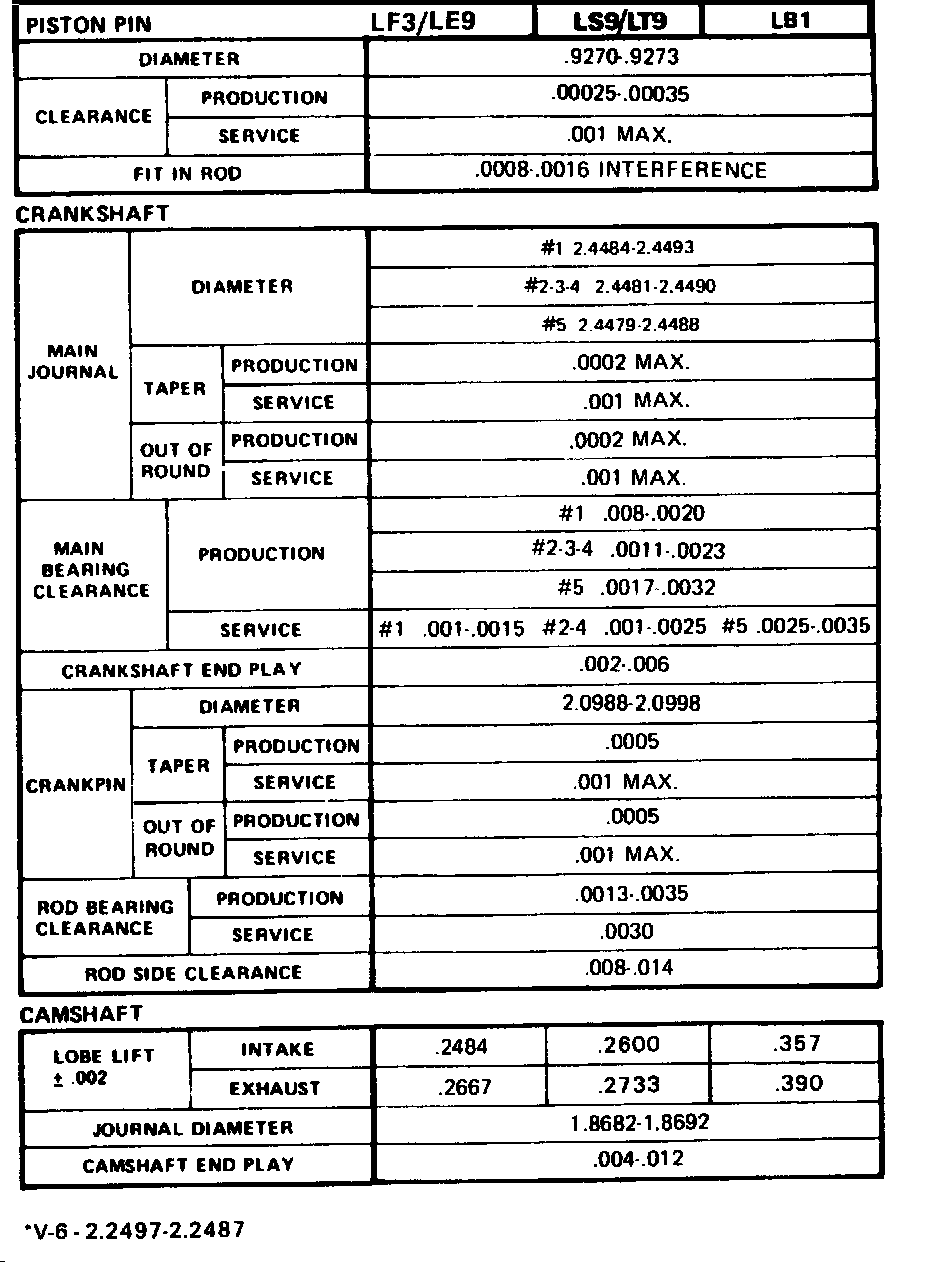

Continued Engine Specifications:

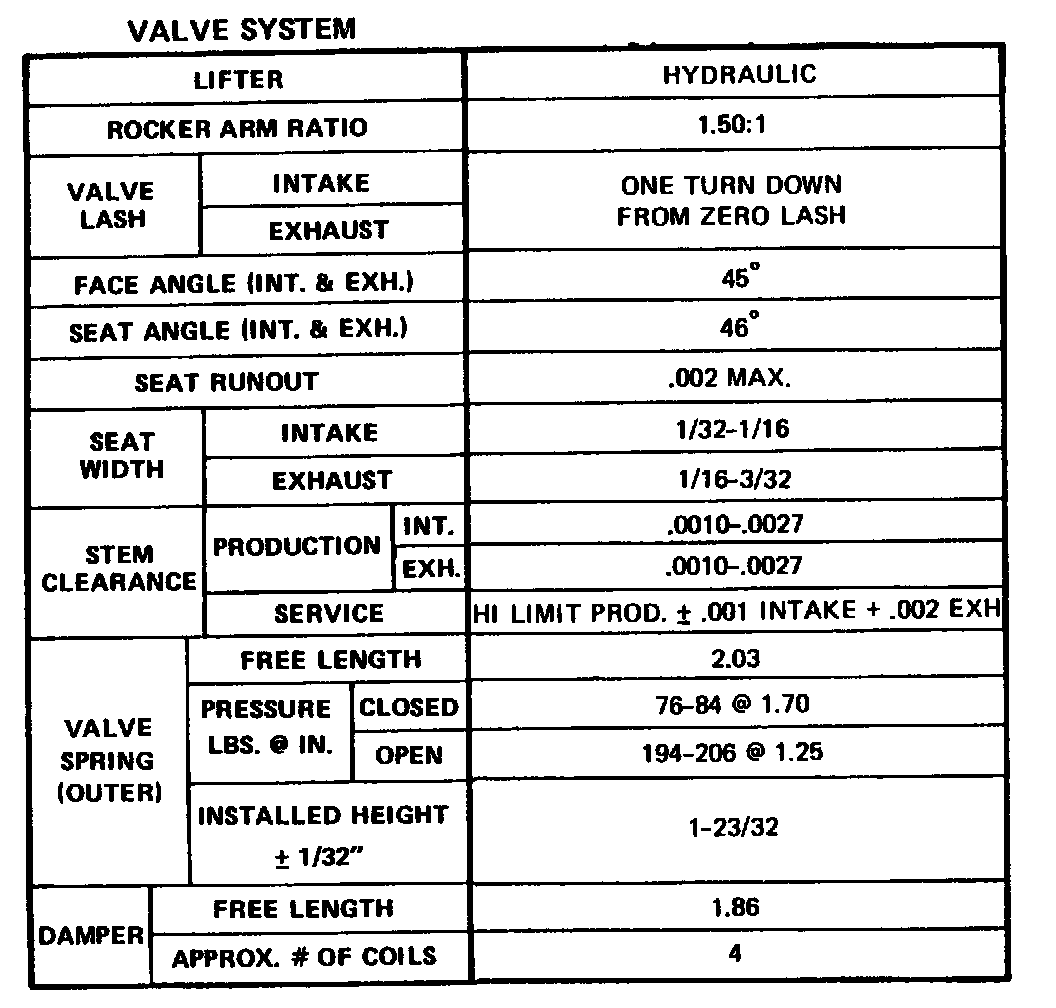

Continued Engine Specifications:

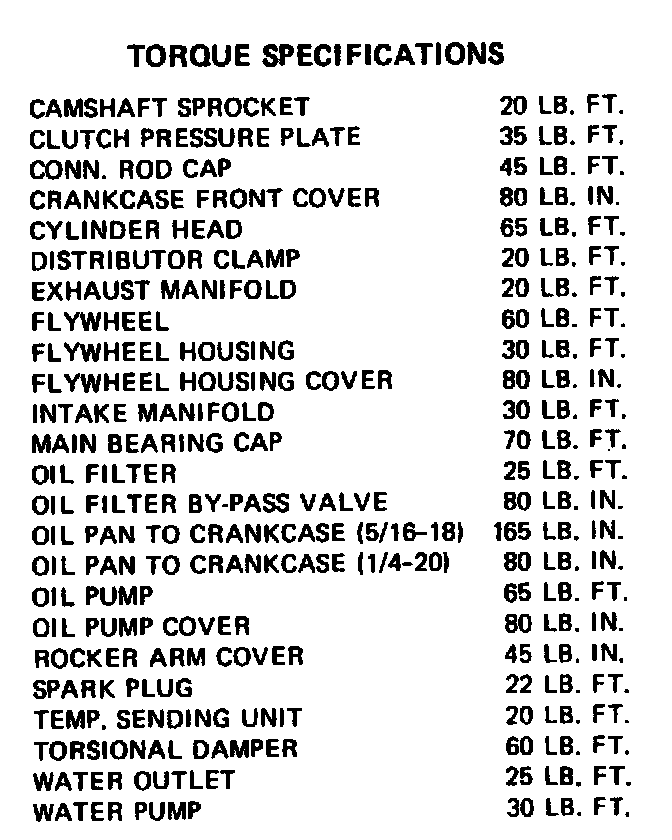

Torque Specifications:






Intake Manifold Sequence V8:

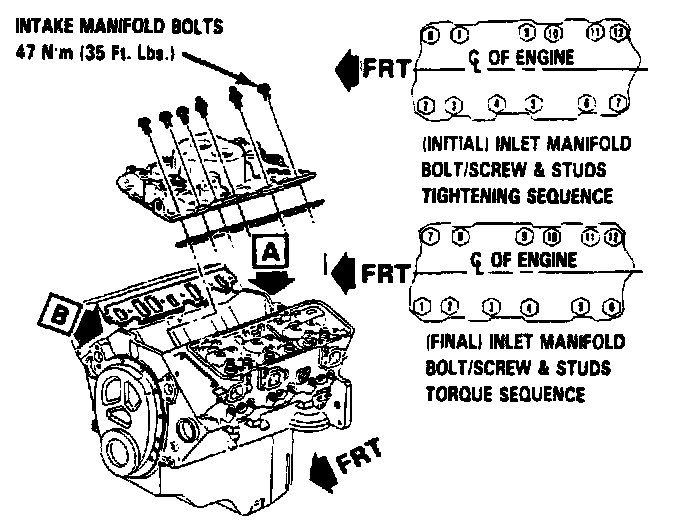

Intake Manifold Sequence V6:





Cylinder Head Sequence:
