Electronic Spark Control (ESC)

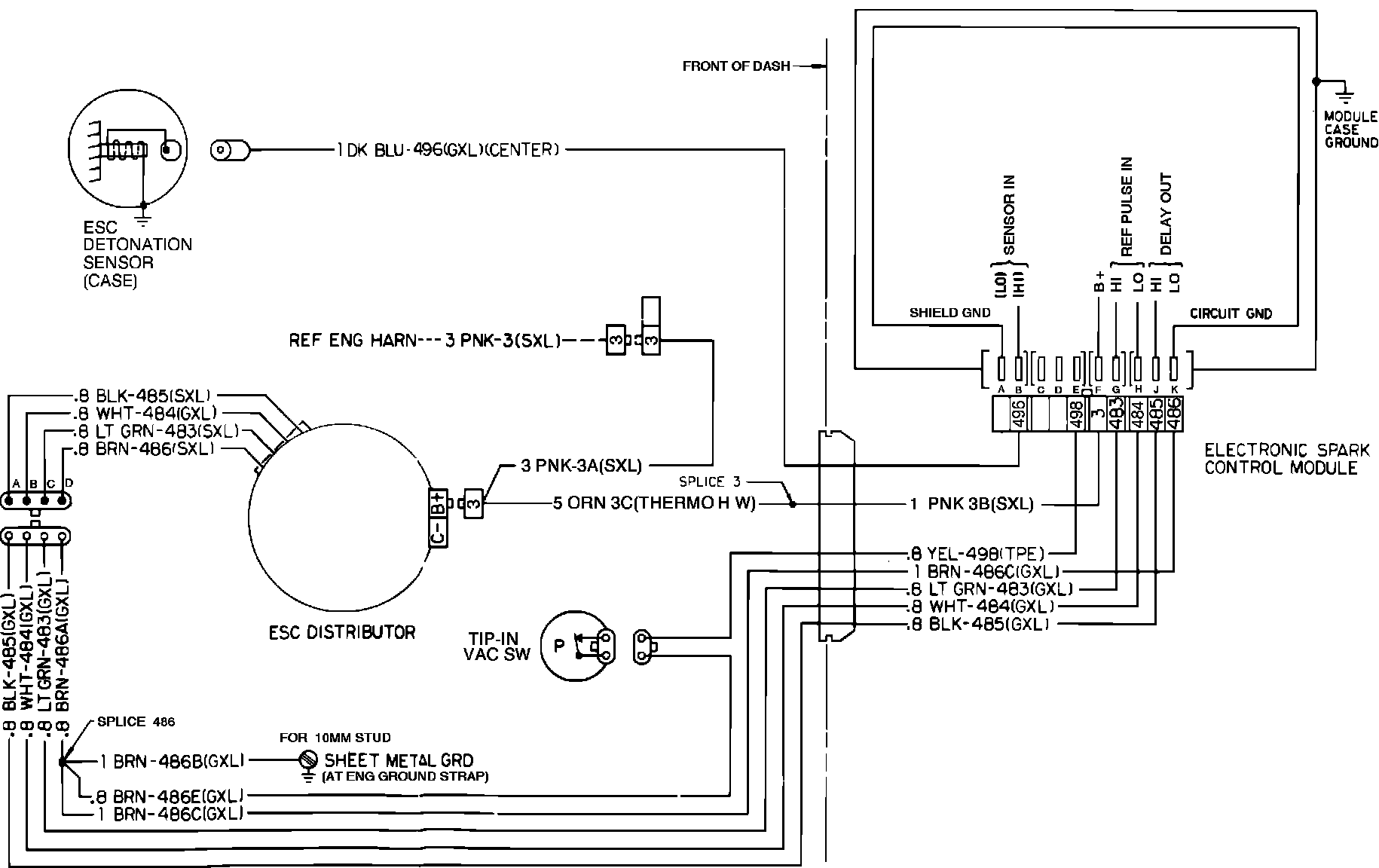

Electronic Spark Control (Auto. Trans.):



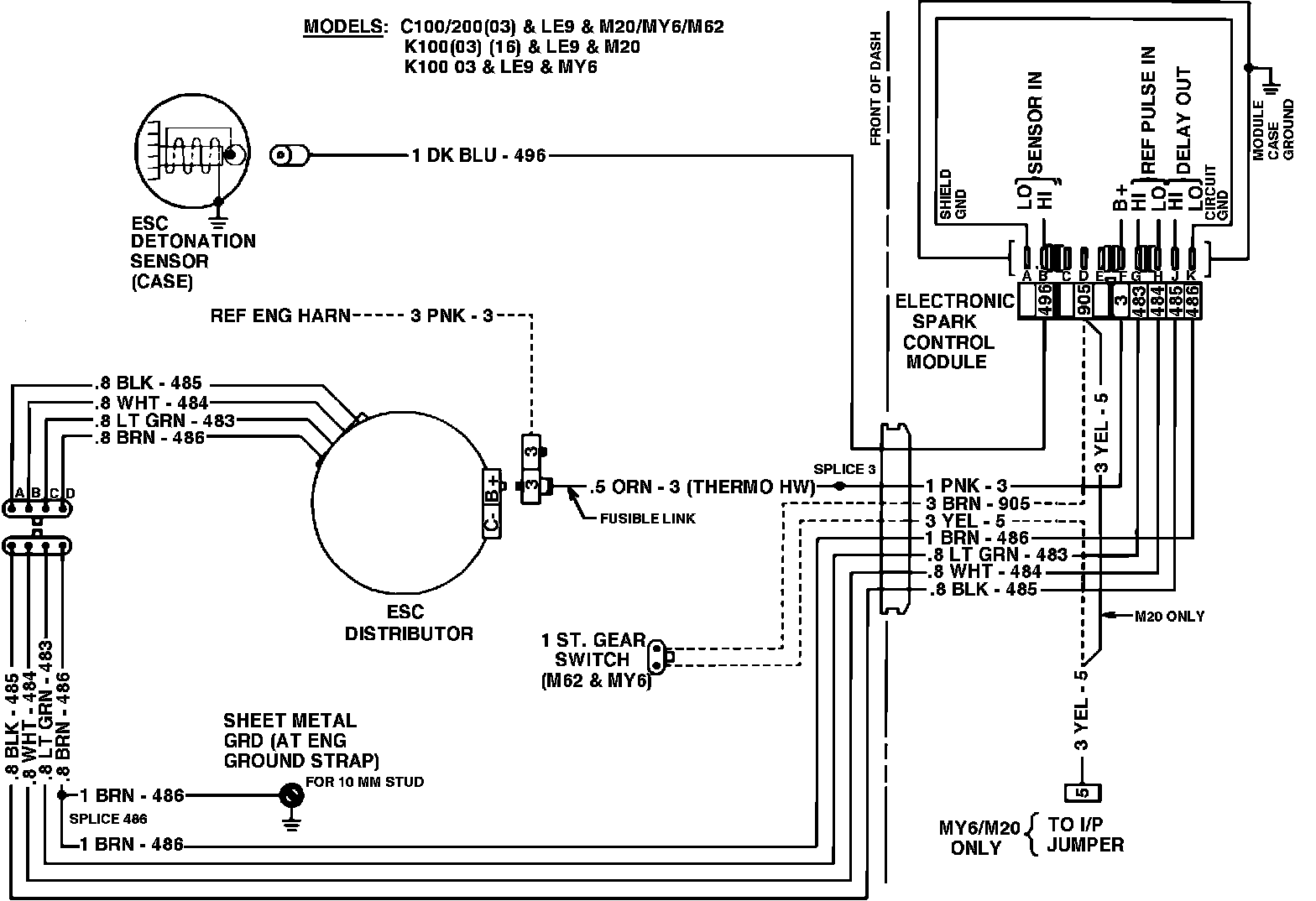

Electronic Spark Control Wiring Circuit. Manual Transmission:
