Chart E - C.C.O.T. System
Chart E - C.C.O.T. System

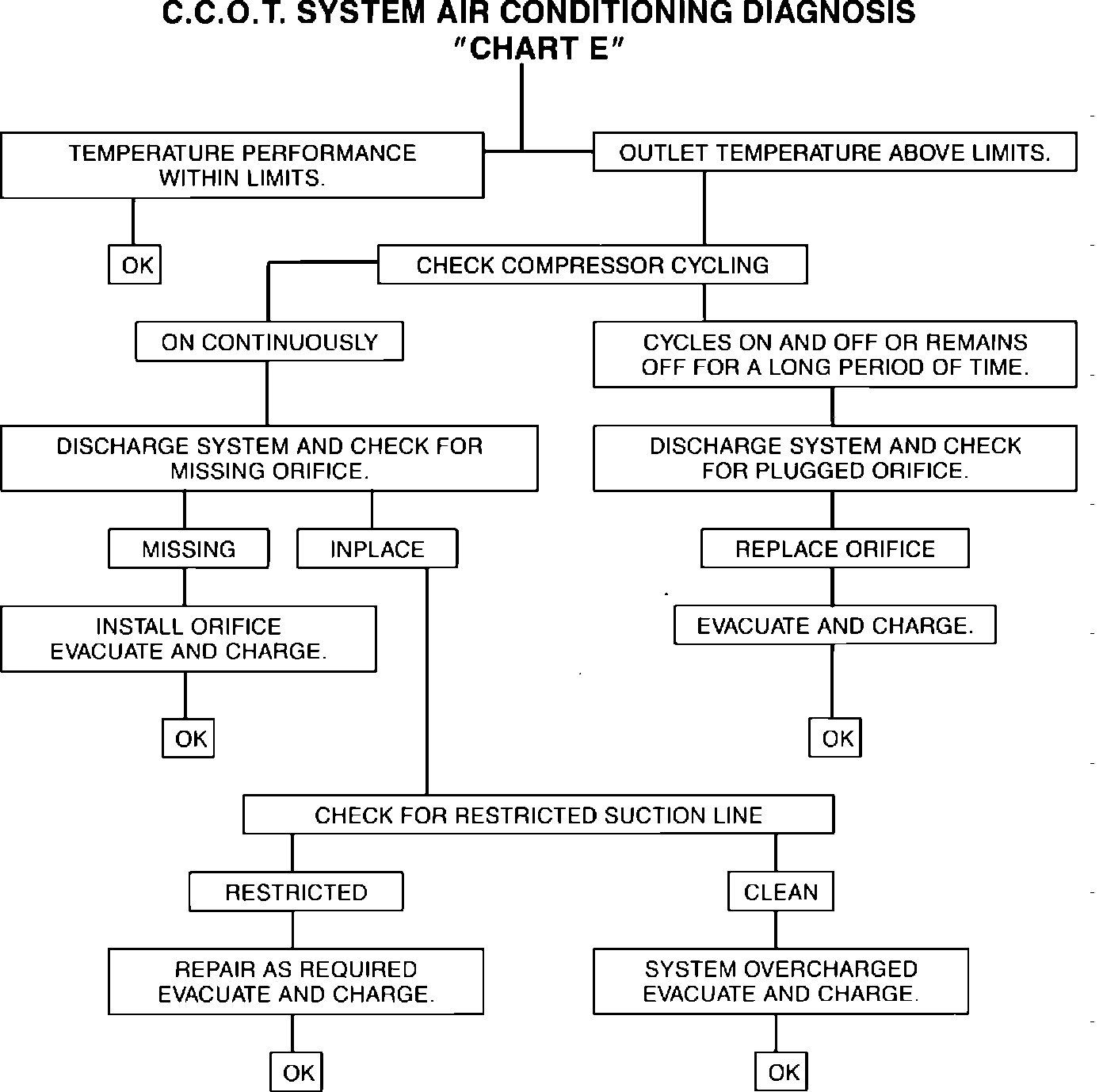

Fig. 21e A/C cooling system diagnosis (Part 5 of 5). Models w/CCOT system:
