Home >> Chevy Truck >> 1985 >> Suburban 1/2 Ton 2WD V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Complete Body Wiring >> Part 1 of 2

Part 1 of 2

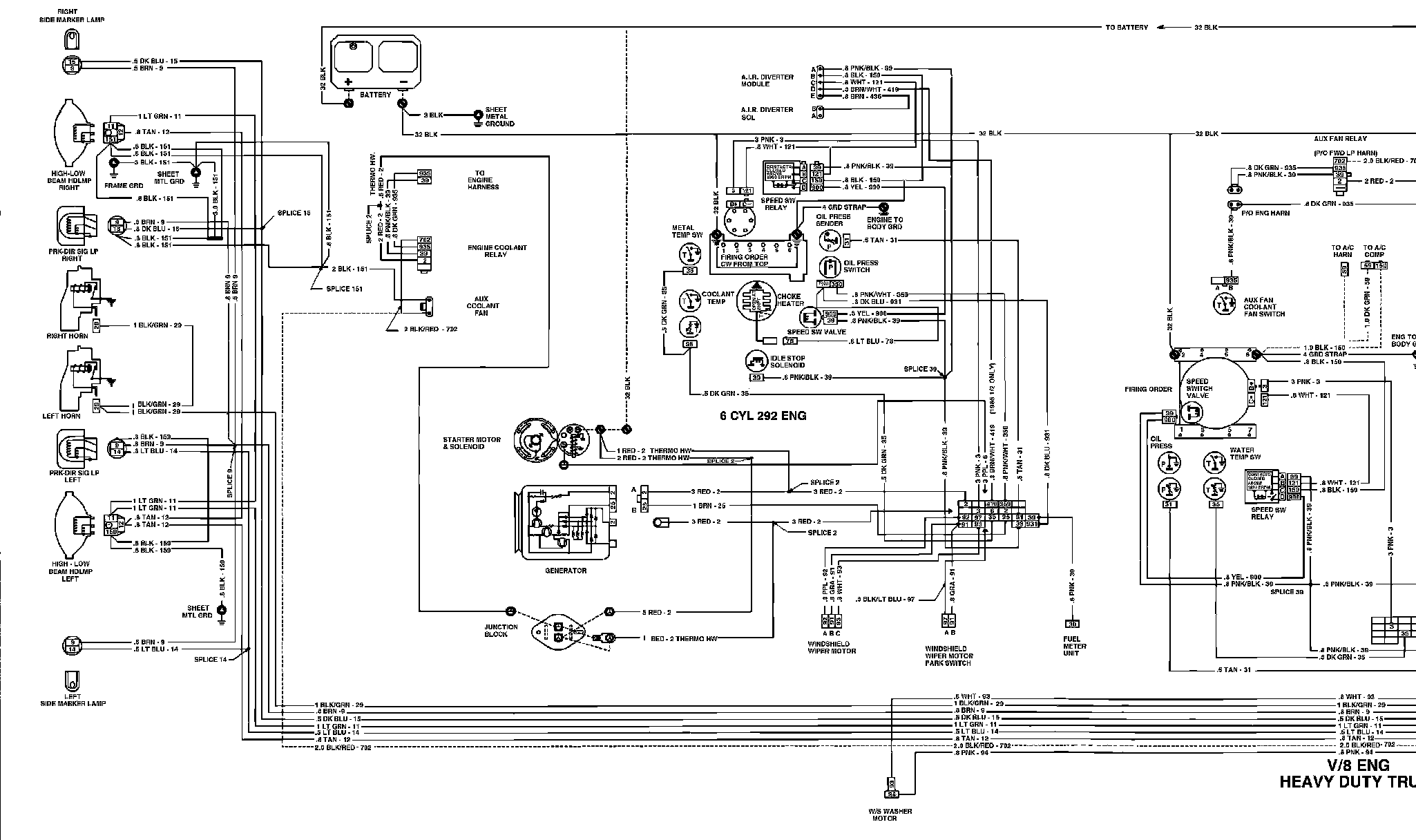

�#J1�#JFig. 26aj Complete Body & Chassis Wiring Circuit:
