A/T - 700R4 Model/Converter Identification

SIL 85-15

SUBJECT: 700-R4

The following information is provided for 1984 model transmissions. It will enable you to identify some models and converter usage.

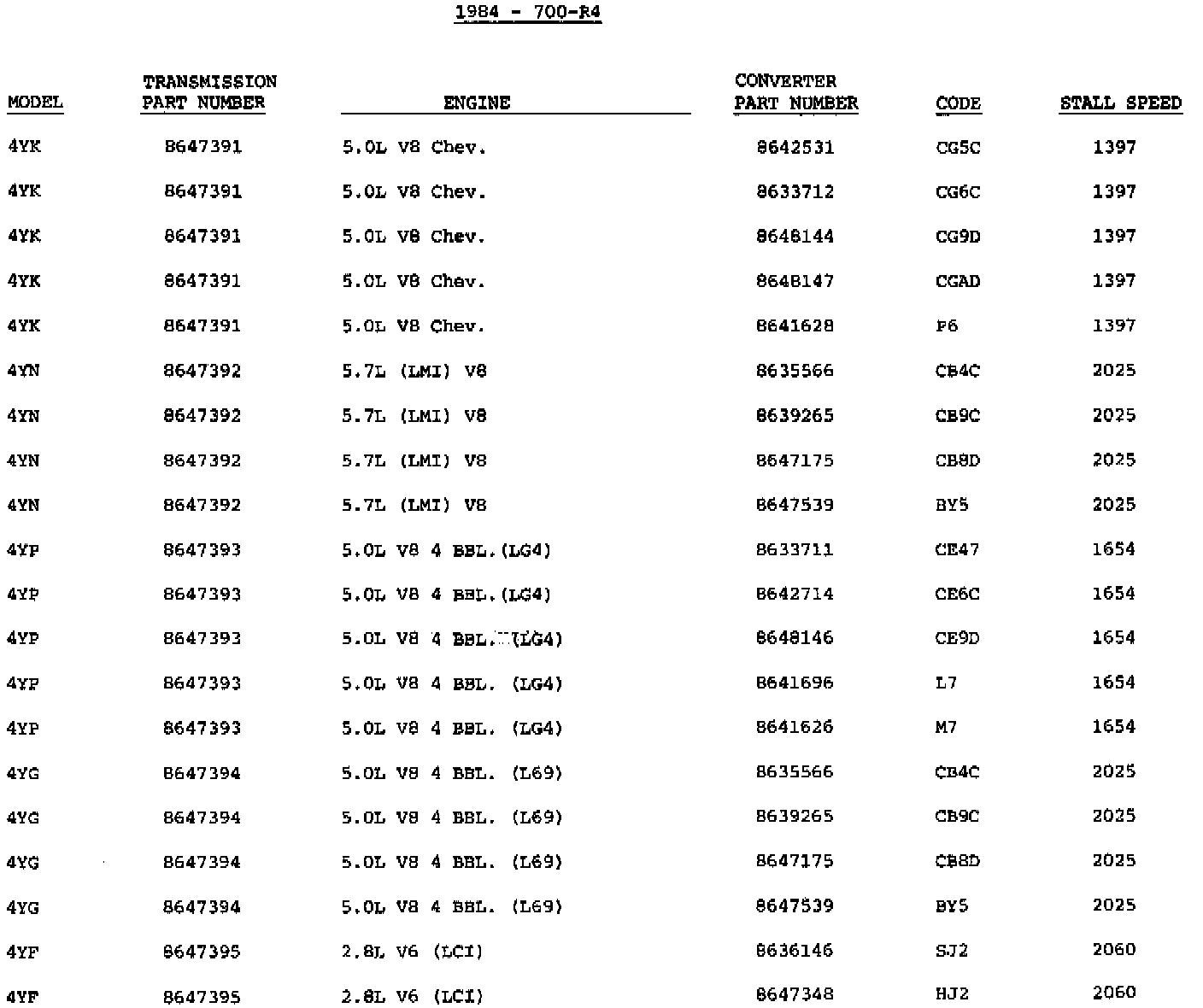

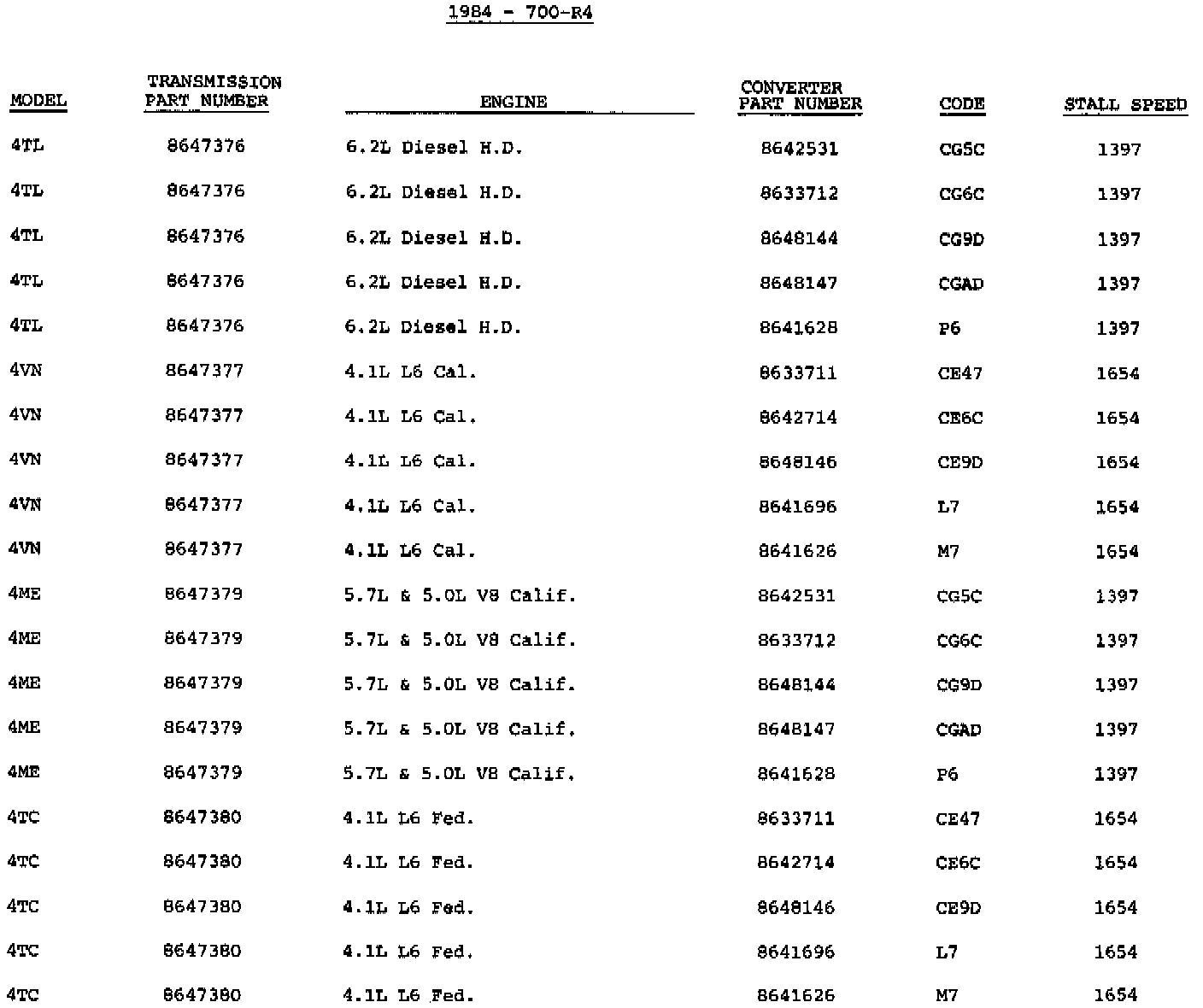

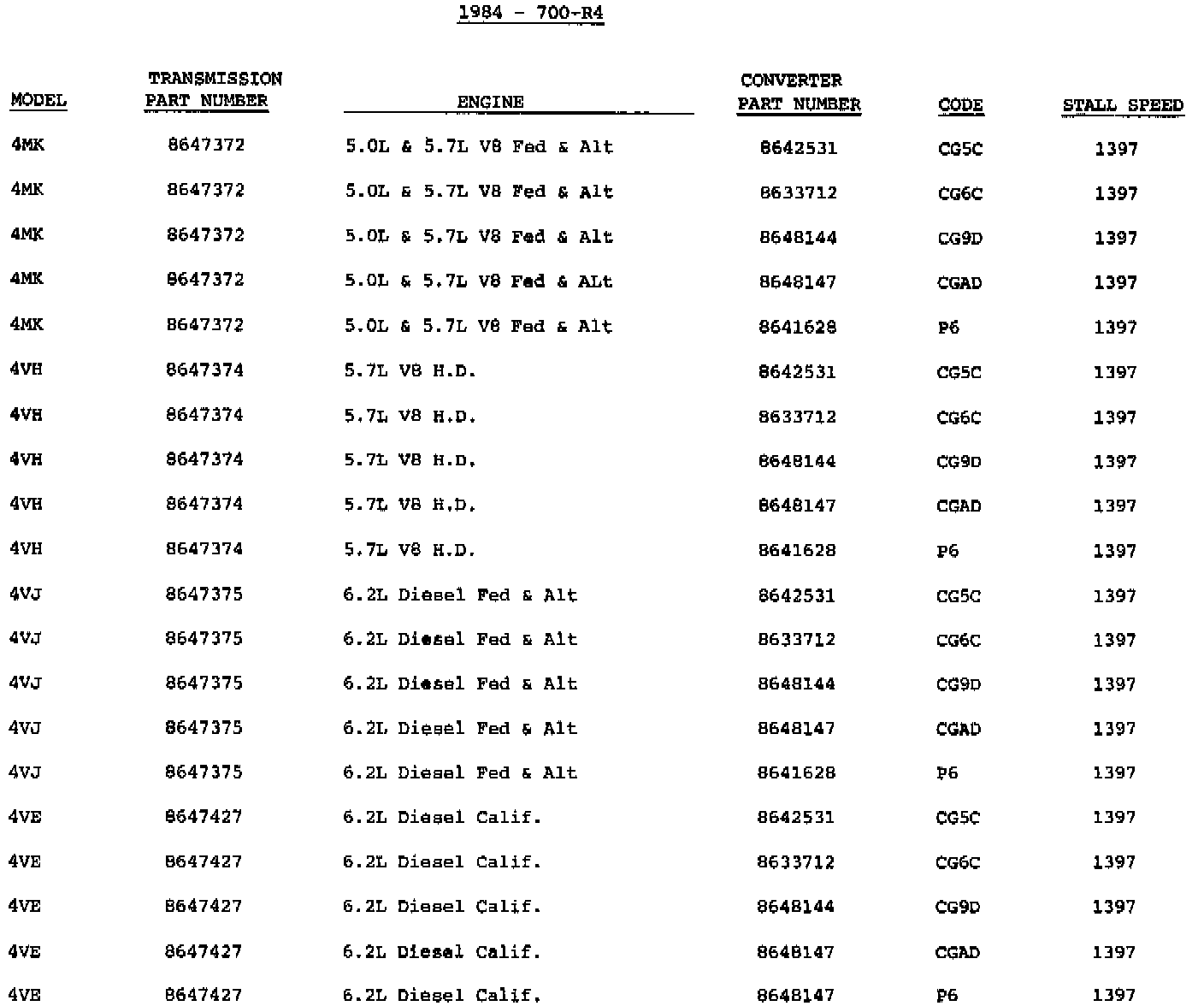

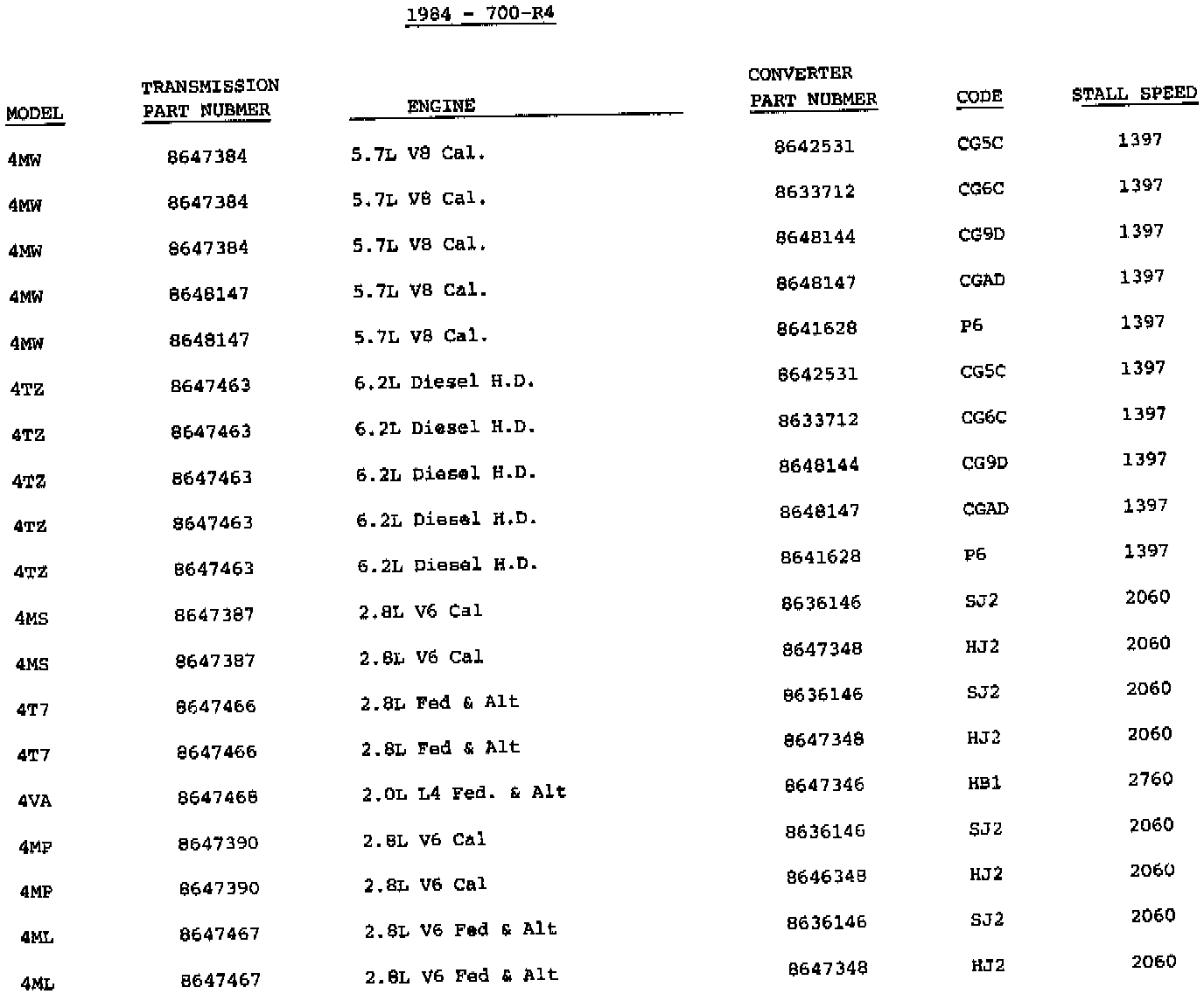

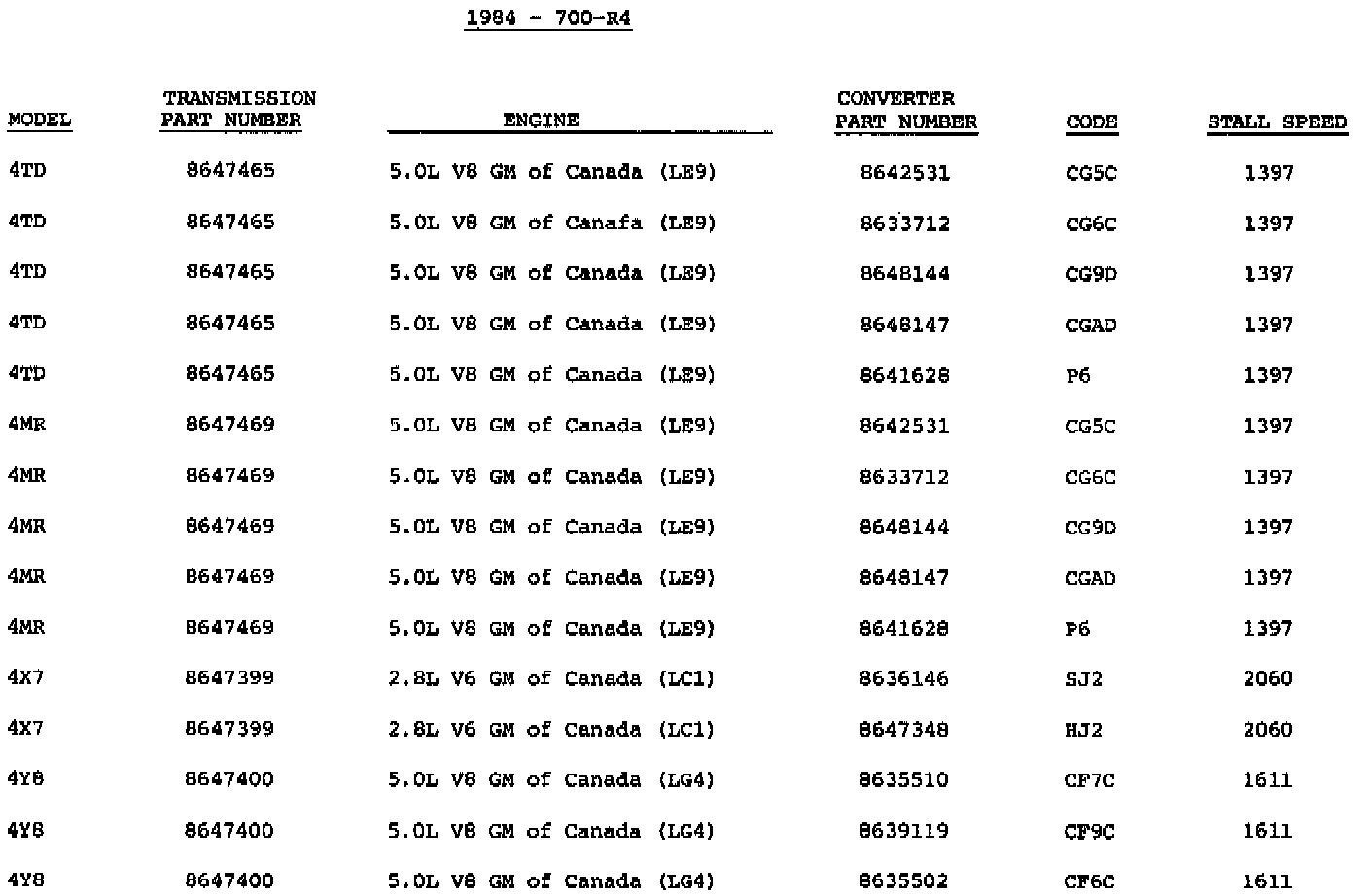

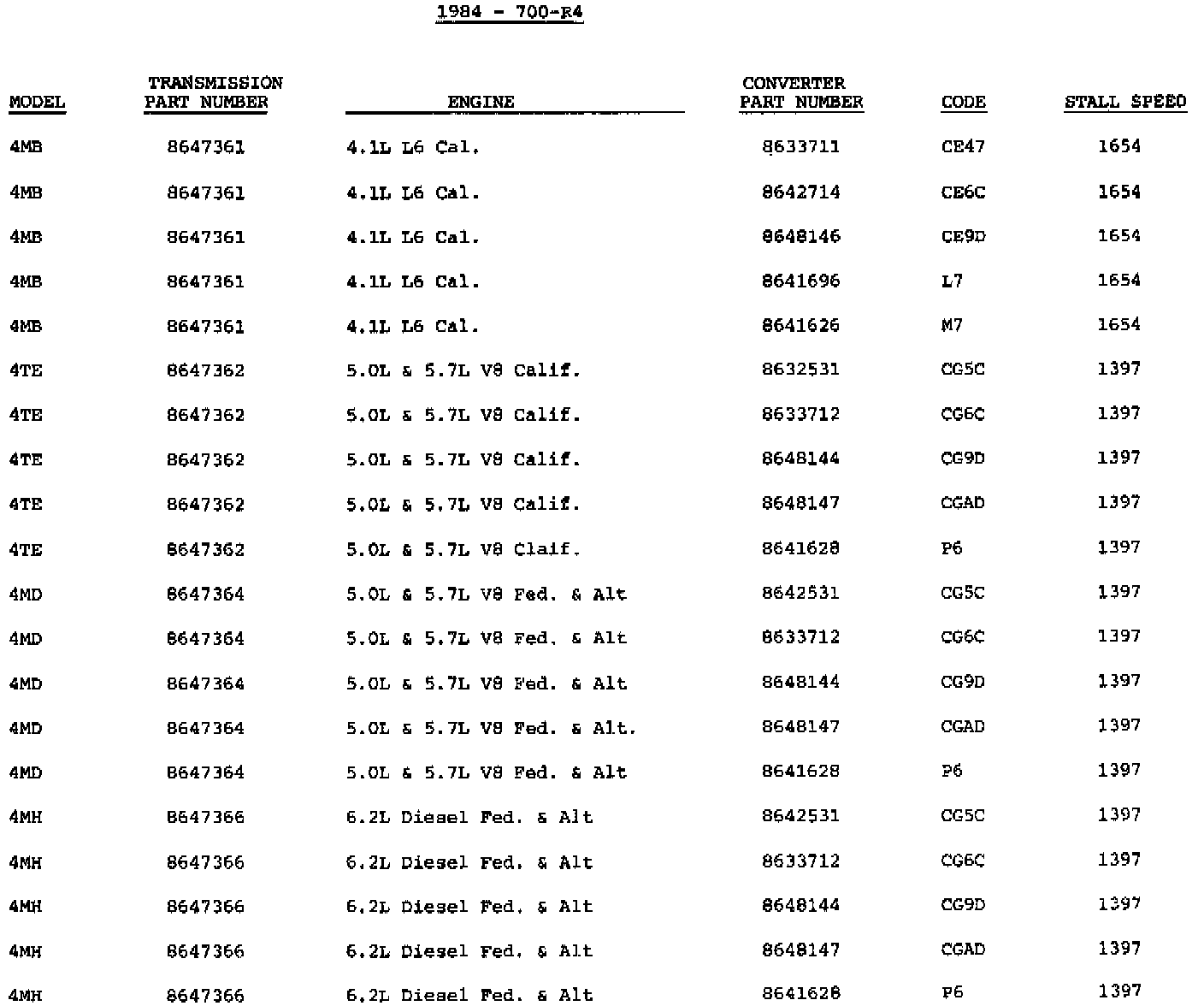

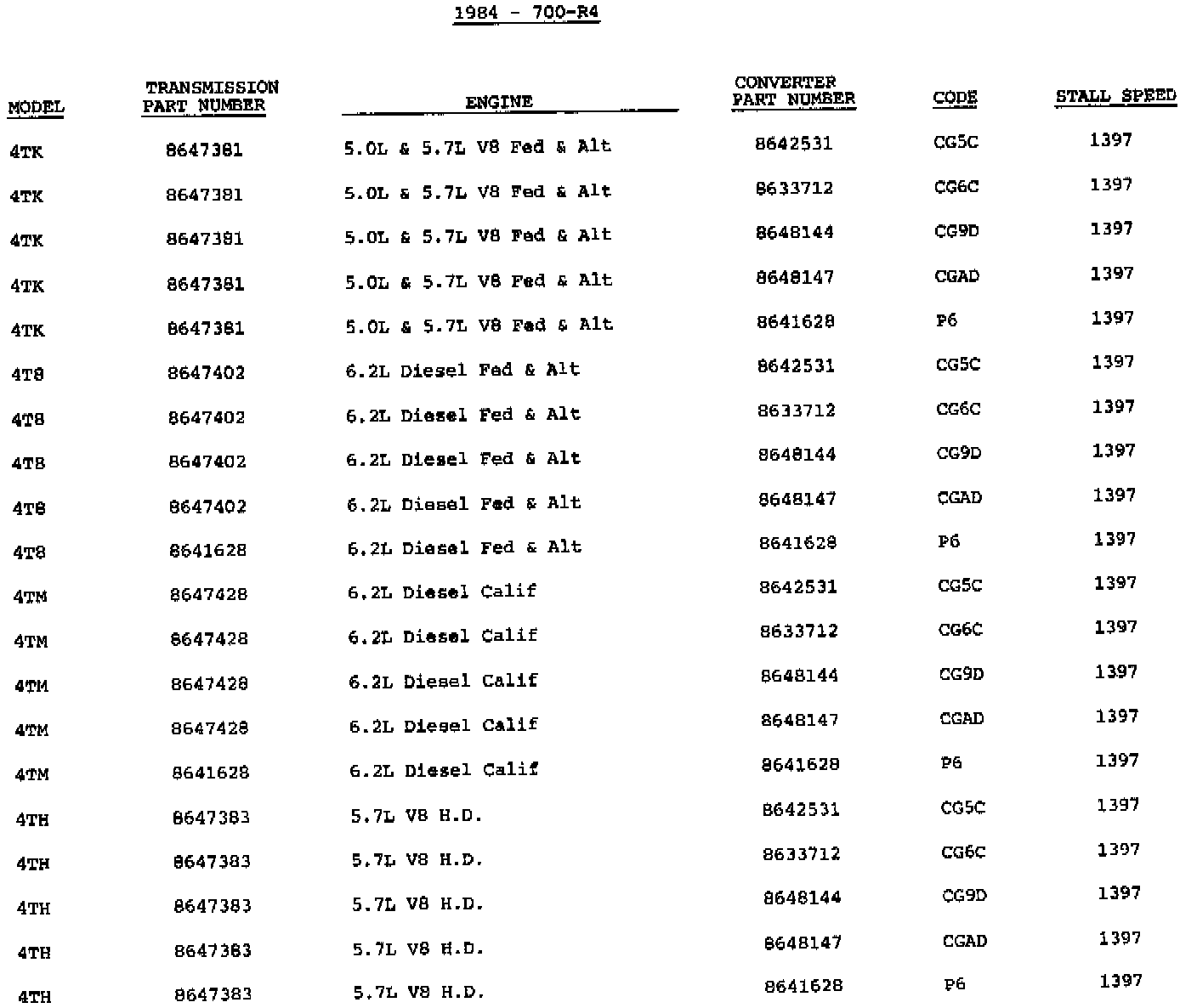

1984 - 700-R4
