Home >> Chevy Truck >> 1983 >> C 10 1/2 Ton Pickup 2WD L6-250 4.1L VIN D 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Emission Controls & Engine Data Sensors >> Manual Transmission

Manual Transmission

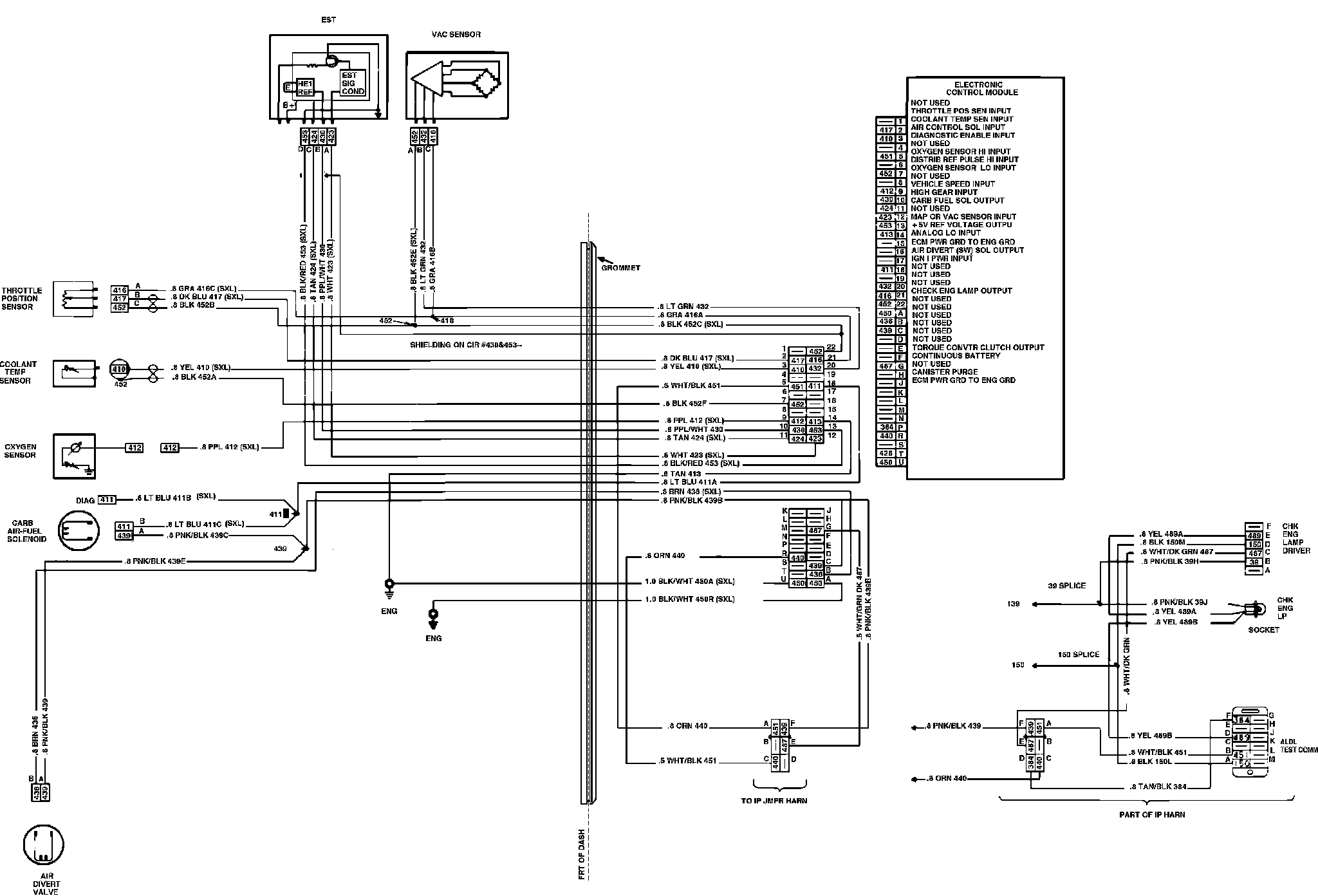

Emission Control Wiring Circuit. Manual Trans.:
